Description

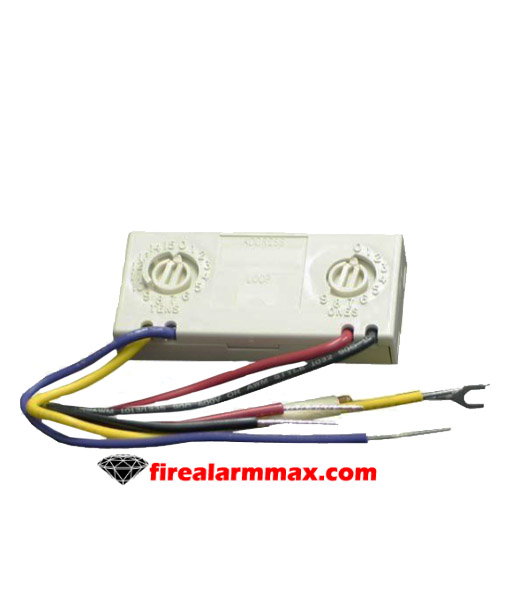

The Notifier FMM-101A Addressable Monitor Module can be install in a single-gang junction directly behind the monitor unit. Its small size and light weight allow it to be install without rigid mounting. Also, the FMM-101A is intended for use in intelligent, two-wire systems where the individual address of each module is select using rotary switches. Besides, it provides a two-wire initiating device circuit for normally open-contact fire alarm and security devices. In addition, the Notifier FMM-101A Addressable Monitor Module can be use to replace MMX-101 modules in existing systems.

Where the individual address of each module is select using the built-in rotary switches. It provides either a 2-wire or 4-wire fault-tolerant initiating device circuit (IDC) for normally open contact fire alarm and supervisory devices, or either normally open or normally closed security devices. Use to monitor a single device or a zone of four-wire smoke detectors, manual fire alarm pull stations, water flow devices, or other normally-open dry-contact devices. May also be use to monitor normally open supervisory devices with a special supervisory indication at the control panel. Additionally, Monitor Module is deliberate for use in intelligent, two-wire systems.

Features / Specifications

• Built-in type identification automatically identifies this device as a monitor module to the panel.
• Powered directly by a two-wire SLC loop. No additional power required.
• High noise.
• Tinned, stripped leads for ease of wiring.
