Description

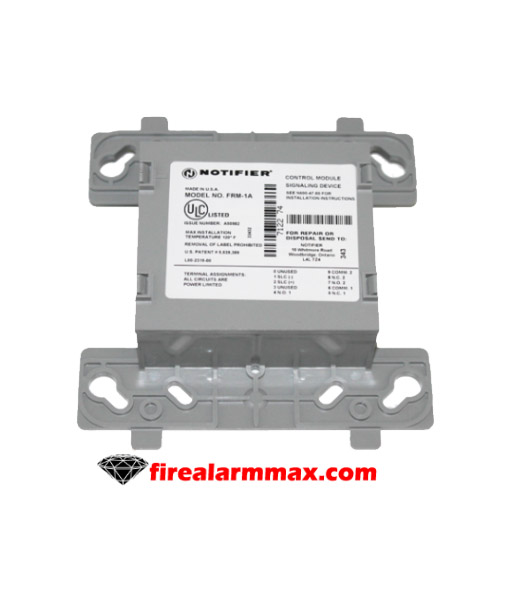

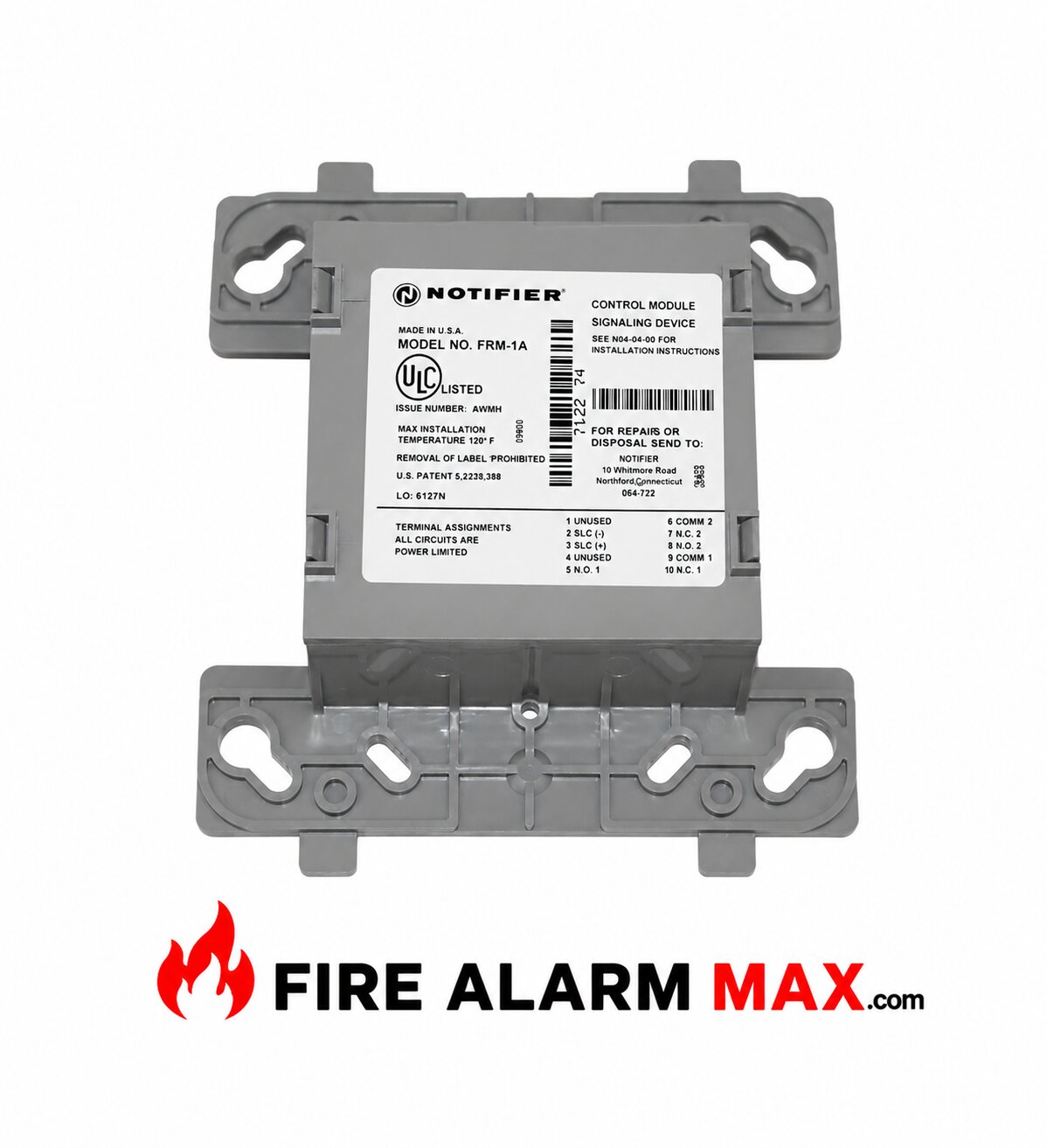

The Notifier FRM-1A is an addressable control relay designed to provide programmable dry contact switching for commercial fire alarm systems. It allows compatible fire alarm control panels to activate auxiliary equipment such as fans, dampers, door holders, HVAC controls, and other building systems through panel programming or manual operation.

The relay module communicates over the Signaling Line Circuit using FlashScan or CLIP protocols while receiving both operating power and communications from the same two wire loop. Its compact design, rotary address switches, and integrated LED indicator simplify installation and maintenance in commercial life safety systems.

Product Functions

• Provides programmable relay control
• Activates auxiliary building equipment
• Controls HVAC shutdown
• Controls smoke dampers
• Controls door holders
• Controls fan shutdown
• Reports module status to the fire alarm control panel
• Continuously supervises communication
• Supports manual and programmed activation

Electrical & System Information

The FRM-1A communicates over the Signaling Line Circuit using FlashScan or CLIP communication protocols and occupies one address on the SLC loop. The module contains two isolated Form C dry contacts that operate together as a DPDT relay while receiving operating power directly from the signaling loop.

A built in LED flashes green during normal communication with the control panel and changes to steady red when the relay is activated. Device addressing is accomplished using two rotary decimal switches.

Features

• Addressable control relay
• Two Form C dry contacts
• DPDT relay operation
• FlashScan communication
• CLIP communication
• Rotary address switches
• Green polling LED
• Red activation LED
• Two wire SLC operation
• Low standby current
• High noise immunity
• Screw terminal wiring
• Commercial fire alarm application

Mounting & Design

The FRM-1A is designed for installation in a standard four inch square electrical box or the optional SMB500 surface mount back box. Its compact enclosure simplifies wiring while protecting internal electronics.

Large screw terminals with clamping plates provide secure field wiring connections and simplify installation during new construction or retrofit projects.

Protection & Applications

Suitable for:

• Commercial Fire Alarm Systems
• HVAC Shutdown
• Smoke Control Systems
• Door Holder Release
• Fan Control
• Damper Control
• Mechanical Equipment Control
• Office Buildings
• Hospitals
• Schools and Universities
• Industrial Facilities
• Government Buildings

Technical Specifications

Manufacturer: Notifier

Parent Company: Honeywell

Model: FRM-1A

Product Type: Addressable Control Relay

Communication: FlashScan or CLIP SLC

Relay Contacts: Two Isolated Form C Dry Contacts

Relay Configuration: DPDT

Operating Voltage: 15 to 32 VDC

Average Operating Current: 375 Microamps Group Poll

Maximum Current Draw: 6.5 Milliamps with LED On

Addressing: Rotary Decimal Switches

Address Capacity: 01 Through 159 FlashScan or 01 Through 99 CLIP

Status Indicator: Green Polling LED Red Activation LED

Mounting: Standard Four Inch Square Electrical Box or SMB500 Surface Back Box

Application: Indoor Commercial Fire Alarm Systems

Listings: UL Listed, ULC Listed, FM Approved, and CSFM Listed. Verify product labeling, installation instructions, local codes, and project requirements before installation.

Applications

The Notifier FRM-1A is designed for commercial fire alarm systems requiring programmable relay control of auxiliary equipment. Typical applications include HVAC shutdown, smoke damper control, door holder release, fan control, smoke control systems, mechanical equipment control, office buildings, hospitals, schools, industrial facilities, government buildings, and other commercial occupancies requiring addressable relay switching.

FRM-1A Datasheet
