Description

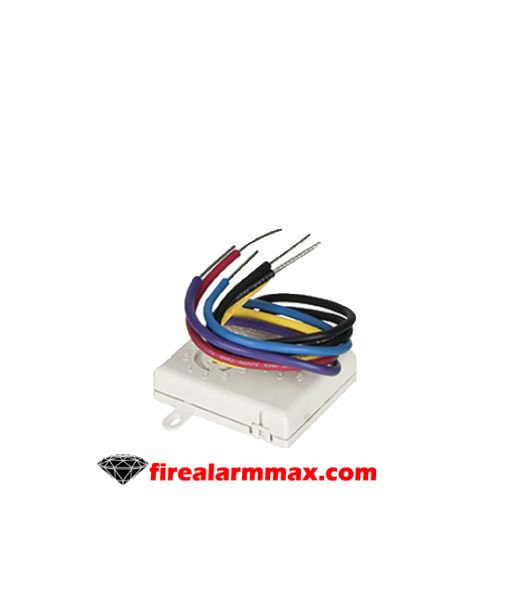

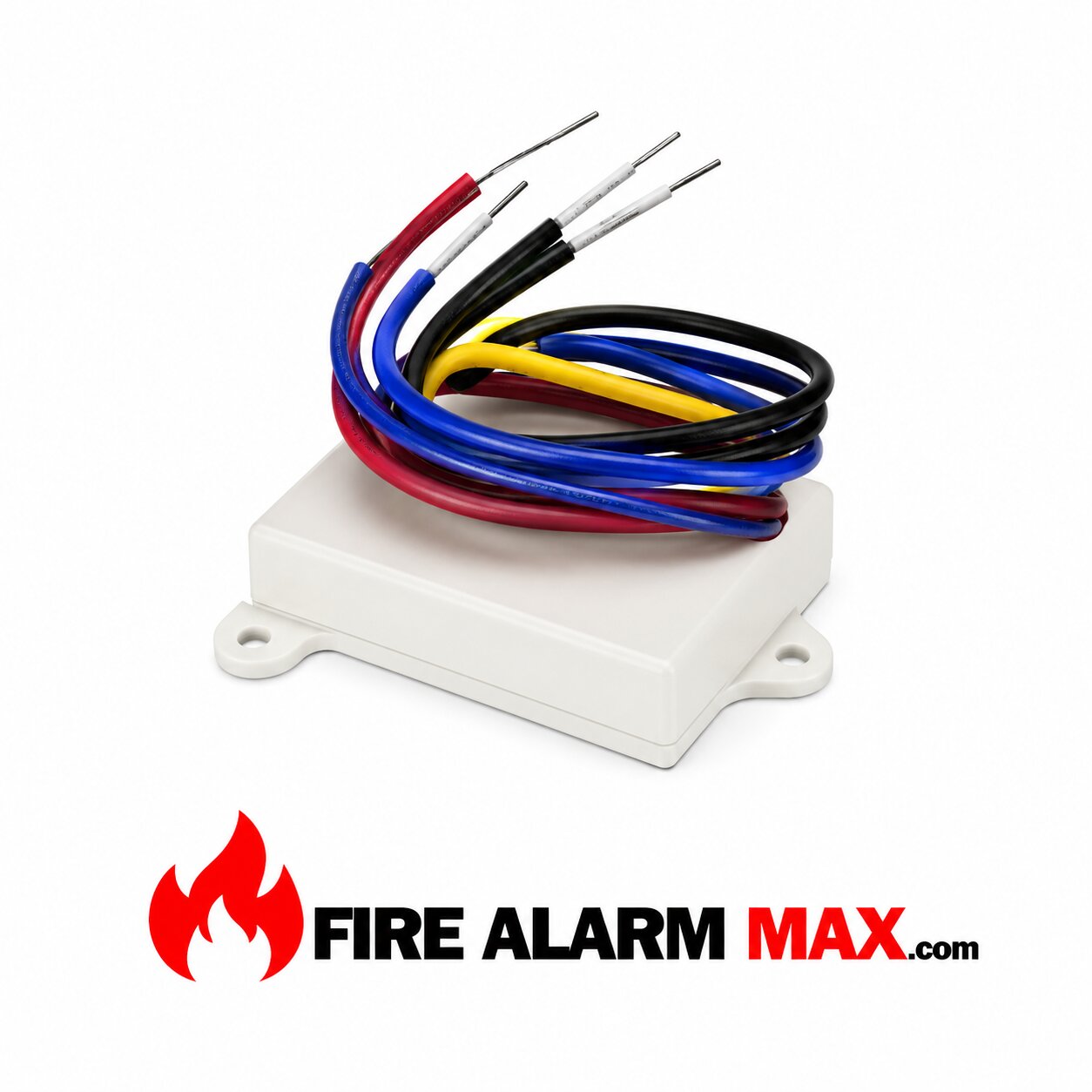

The Notifier MMX-102E Micro Monitor modules comes designed for use with any NOTIFIER protocol fire alarm control panel. Also, these modules monitor a single input Device Circuit of normally open dry-contact alarm activation devices.  These modules use one of 99 available module addresses on a loop and respond to regular polls from the control panel reporting its type as well as the status (open/normal/short) of its input device circuit.

In general, two rotary switches enable direct-dial entry of DECADE address (01-99) and a label is provided to mark the loop number, address, and device type.  Besides, the flashing LED on the MMX-1E Monitor module indicates that the module is in communication with the control panel. In addition, the LED latches steady on the alarm. The Notifier MMX-102E mounts in a standard single-gang electrical knock-out box behind the device being monitored. Due to the small size and lightweight, it does not need to be rigidly mounted

Features / Specifications

• Analog addressable communications
• Built-in type identification automatically identifies this device as a monitor module to the control panel
• Stable communication technique with high noise immunity
• Common mounting for control, monitor, isolator, and conventional zone monitor
• Visible LED blinks every time the module comes addressed (optional) together with illuminates steadily on the alarm
• Powered directly by the 2-wire loop. No additional power required
• Weight: 33 g.
• Operating Voltage: 15 to 32 VDC peak.
• Environmental Limits: -10°C to 60°C operating temperature.
