Description

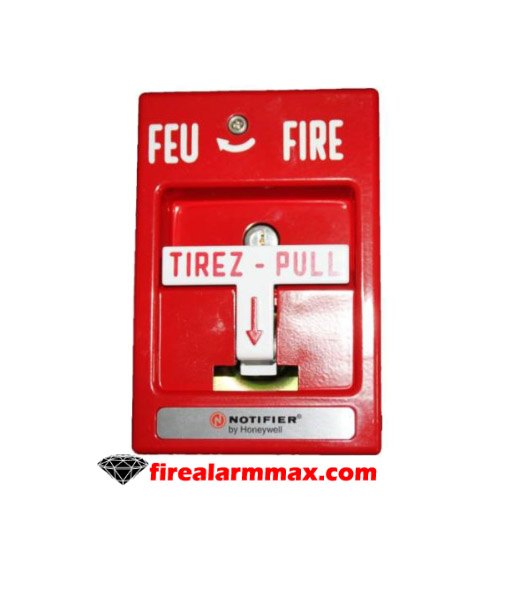

The Notifier N-MPS-2C Series manual stations provide reporting for the NFS-320C, NFS2-640, as well as NFS2-3030 fire alarm control panels; NFW-MPS series manual stations provide reporting for FireWarden series panels. Also, these high-quality, die-cast metal manual stations include screw terminal connections and integrated break-glass rods. Besides, the alarm contact for the manual station comes rated for 1A, 24VDC. The contacts are gold plated to avoid the risk of corrosion.

In general, the MPS Series manual stations are available as single or two-stage for conventional systems. Models N-MPS-SC/SCC are single-stage manual stations. Additionally, models N-MPS-2C/2CC (two-stage models) are similar to the N-MPS-SC (single-stage models) except they contain an additional 2nd Stage normally open key-switch. Furthermore, a 2nd stage key is supplied with each unit to activate the 2nd Stage key switch.

In addition, the Notifier N-MPS-2C Series manual stations are operated by pulling the handle on the front of the station. To reset the manual station, open the manual station with the hex key (provided), together with, place the handle in the normal upright position. Replace the break-glass rod, and close the manual station front cover.

Features / Specifications

• Constructed of high-quality die-cast metal
• Highly visible red enamel finish
• English and French lettering
• Single action pull lever design
• Integrated break-glass
• Screw terminal connectors
• Optional ancillary contact for local mag-lock release
• Humidity: 10 to 93% noncondensing
• Operating Temperature Range: 0°C to 49°C
• Dimensions: 121mm (H) x 82mm (W) x55mm (D)
