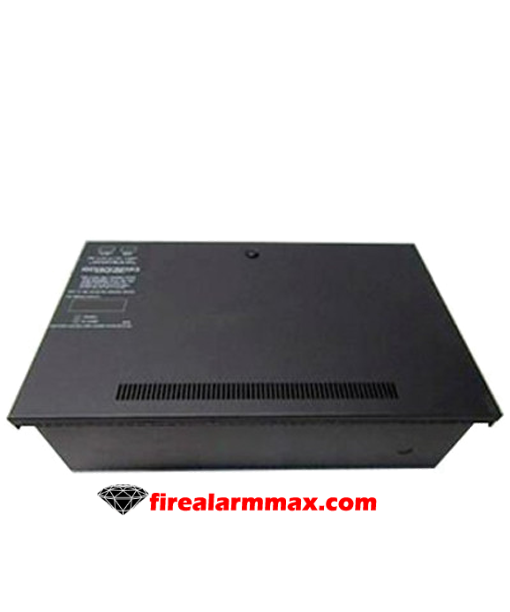

Notifier NFS-LBB Battery Backbox
The NFS-LBB Notifier – used to mount up to two 55 AH batteries. Dimensions: Box: 24″ (610 mm) wide x 14″ (356 mm) high x 7.75″ (197 mm) deep. Door: 24.125″ (613 mm) wide x 14.25″ (362 mm) high; door adds 0.0625″ (approx. 1.6 mm) to depth. And CHG-120 Battery Charger.
The CHG-120 is a state-of-the-art battery charging system designed for use with NOTIFIER Fire Alarm Control Panels (FACPs). It – designed to charge lead-acid batteries between 25 and 120 ampere-hours (AH).
The CHG-120 – mounted in the main power supply position. On the lower left of the CAB-4 Series backbox.
Using self-tapping screws, the CHG-120 – mounted in the lower right position. (normally, where the batteries – mounted) of the CAB-4 Series backbox.
The CHG-120 mounts in the left position of the backbox.
NOTE: Only one 55 AH battery or two 26 AH batteries will mount with the charger board in the NFS-LBB.
NFS-LBB Battery Box Battery Configurations: The battery backbox can mount configurations of batteries as follows:
Product Line Information
CHG-120: Battery charger circuit board and mounting chassis.
Includes mounting hardware and installation instructions.
BAT-12260: 26 AH, 12-volt, sealed lead-acid battery. Order as bulk pack BAT-12260-BP contains two. See data sheet DN6933.
BAT-12550: 55 AH, 12-volt, sealed lead-acid battery. See data sheet DN-6933.
BAT-121000: 100 AH, 12-volt, sealed lead-acid battery. See data sheet DN-6933.
NFS-LBB: Battery Backbox — holds up to two BAT-12550 55 AH batteries or one BAT-121000 100 AH battery. Dimensions:
Box: 24.0″ (61.0 cm) wide x 14.0″ (35.6 cm) high x 7.75″ (19.7 cm) deep. Door: 24.125″ (61.3 cm) wide x 14.25″ (36.2 cm) high x (door adds 0.063″ [approx. 0.16 cm] to depth), black.
Notifier NFS-LBB Battery Backbox
| Weight | 29 lbs |
|---|---|
| Dimensions | 26 × 17 × 9 in |
