Description

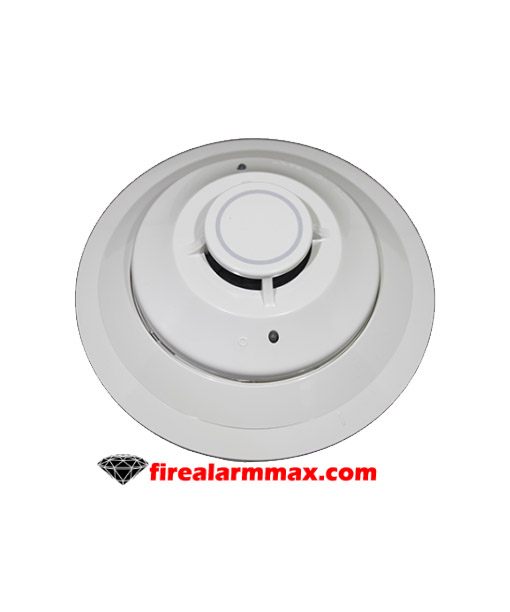

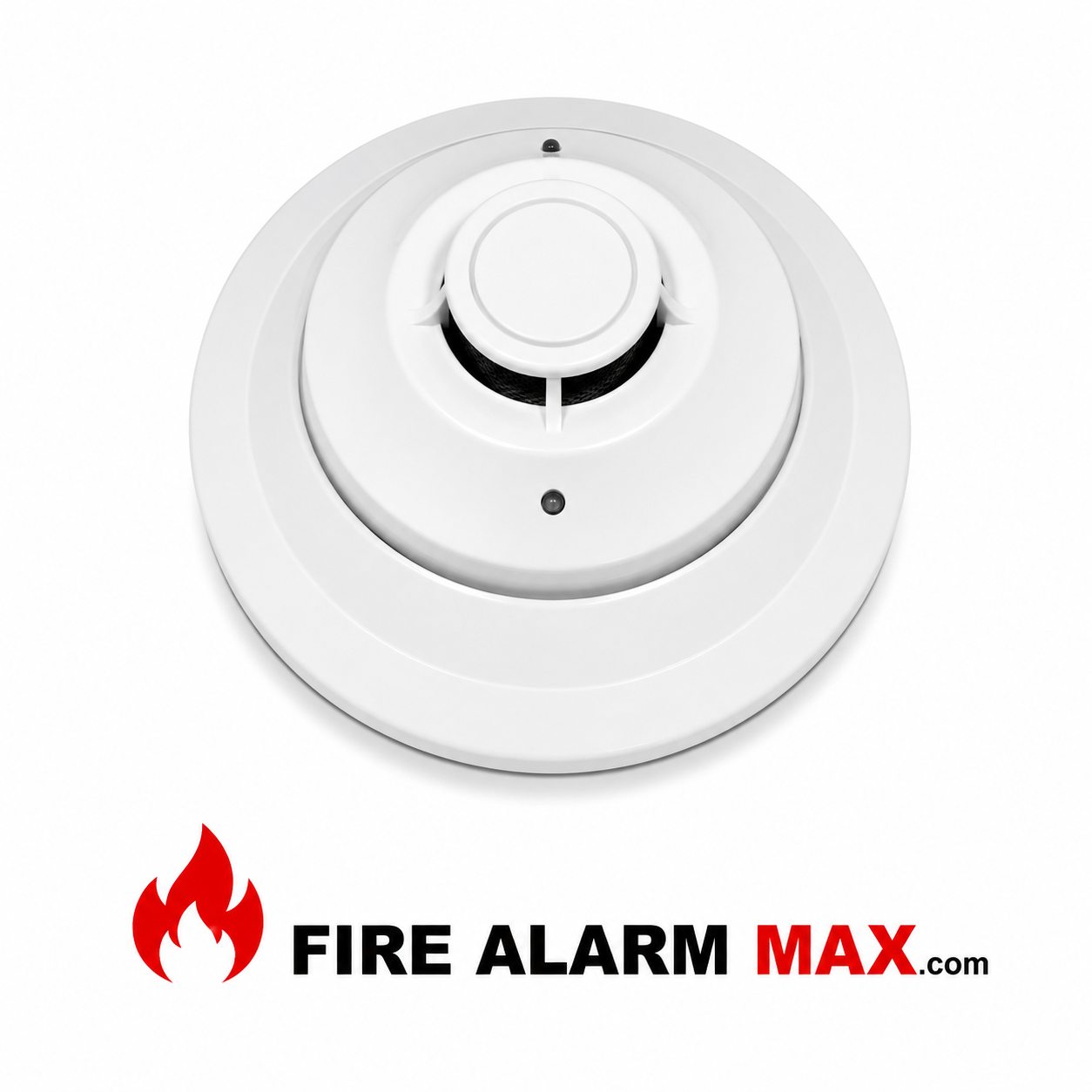

In the first place, the Notifier NH-100 Series thermal detectors are addressable sensors that use a state-of-the-art thermistor sensing circuit for fast response. Also, these sensors are designed to provide open area protection and are intended for use with the FireWarden-100 Fire Alarm Control Panel (FACP).

In fact, both the Notifier NH-100 and NH-100R sensors provide fixed temperature alarm detection at 135°F/ 57°C. Besides, the NH-100R sensor responds to rate-of-rise conditions of greater than 15°F/8.3°C per minute. Furthermore, these thermal detectors provide cost-effective, addressable property protection in a variety of applications. In Addition, the Two LEDs on each sensor light provide a local, visible sensor indication. Remote LED annunciator capability is available as an optional accessory

Features / Specifications

• Two-wire SLC loop connection
• Addressable by device
• Sleek, low-profile, stylish design
• Factory preset at 135°F (57°C)
• Visible LEDs “blink” every time the unit is addressed
• Sealed against back pressure
• Remote test feature from the panel
• Plugs into a separate base for ease of installation and maintenance
• 360°-field viewing angle of the visual alarm indicators (two bicolor LEDs). LEDs blink green in Normal condition as well as turn on steady red in Alarm.
• Remote LED output connection to optional RA400Z remote LED annunciator
• Installation temperature: –4°F to 100°F (–20°C to 38°C)
• Humidity range: 10% to 93% relative humidity (noncondensing)
