Description

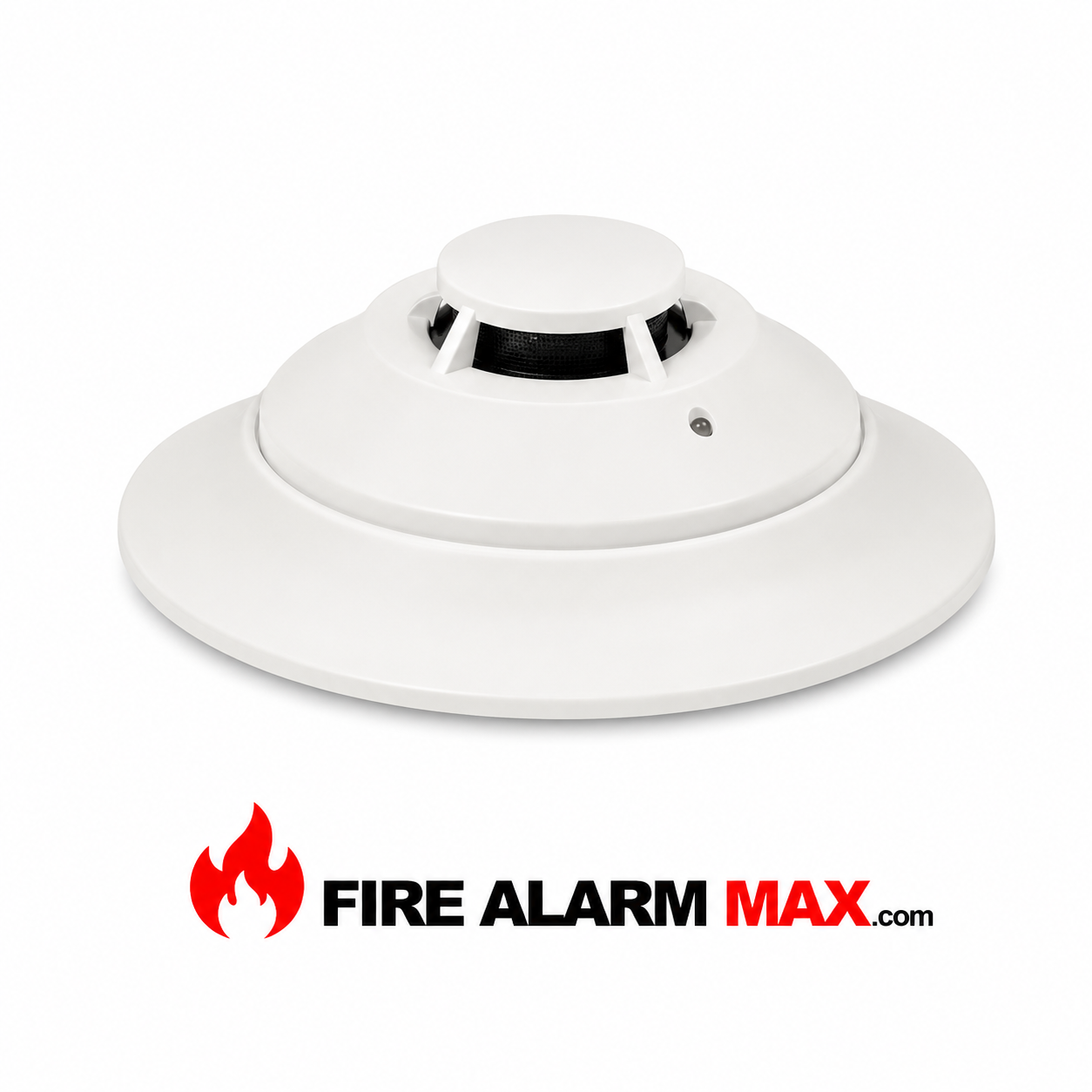

The Notifier NP-100 is a commercial smoke detector designed for compatible Notifier FireWarden fire alarm systems. It provides dependable smoke detection for offices, schools, healthcare facilities, warehouses, industrial buildings, and other commercial occupancies.

The detector features a low-profile design, rotary address switches, automatic sensitivity monitoring, dual LED status indication, and a plug-in configuration that simplifies installation and maintenance. This product is intended exclusively for commercial fire alarm installations.

Product Functions

• Detects airborne smoke
• Reports fire alarm conditions
• Monitors detector sensitivity
• Supports automatic maintenance supervision
• Plug-in detector installation
• LED status indication
• Supports routine inspection and testing

Electrical & System Information

The NP-100 operates on compatible FireWarden signaling line circuits with an operating voltage of 15–32 VDC. Rotary decimal switches allow local device addressing, while the connected fire alarm control panel continuously supervises detector status and sensitivity.

The detector supports optional remote LED annunciation and installs on a compatible detector base.

Features

• Commercial smoke detection
• Automatic sensitivity monitoring
• Rotary decimal addressing
• Dual LEDs with 360° visibility
• Plug-in detector head
• Low standby current
• Low-profile housing
• Remote LED support
• Tamper-resistant feature
• Indoor commercial application

Mounting & Design

The NP-100 installs on compatible B210LP or B501 detector bases. Optional relay, isolator, and sounder bases are also available for compatible system configurations.

Its plug-in construction allows convenient installation, testing, cleaning, and replacement without disturbing the installed field wiring.

Protection & Applications

Suitable for:

• Office Buildings
• Schools
• Hospitals
• Hotels
• Retail Stores
• Warehouses
• Government Buildings
• Industrial Facilities
• Commercial Properties

Compatibility

Compatible with:

• Notifier FireWarden-100-2 Fire Alarm Panel
• Notifier FireWarden-50 Fire Alarm Panel
• Spartan Addressable Fire Alarm Systems
• B210LP Detector Base
• B501 Detector Base
• B200SR Sounder Base
• B224RB Relay Base
• B224BI Isolator Base
• RA100Z Remote LED Annunciator

Always verify compatibility with the installed fire alarm control panel and detector base before installation.

Technical Specifications

Manufacturer: Notifier

Parent Company: Honeywell

Model: NP-100

Product Type: Commercial Smoke Detector

Detection Method: Smoke Sensing Chamber

Operating Voltage: 15–32 VDC Peak

Typical Standby Current: 300 µA @ 24 VDC

Maximum LED Current: 6.5 mA @ 24 VDC

Operating Temperature: 32°F to 120°F (0°C to 49°C)

Operating Humidity: 10%–93% RH Non-Condensing

Maximum Air Velocity: 4,000 ft/min (20 m/s)

Status Indicators: Dual LEDs

Addressing: Rotary Decimal Switches

Mounting: Compatible B210LP or B501 Detector Base

Remote LED Support: RA100Z

Application: Indoor Commercial Fire Alarm Systems

Listings: UL Listed, ULC Listed, FM Approved, CSFM Listed, MEA Approved (application dependent).

Applications

The Notifier NP-100 is designed for commercial fire alarm systems requiring dependable smoke detection and continuous device supervision. It is commonly installed in office buildings, schools, hospitals, hotels, warehouses, industrial facilities, retail centers, and other commercial occupancies using compatible FireWarden and Spartan fire alarm systems.
