Description

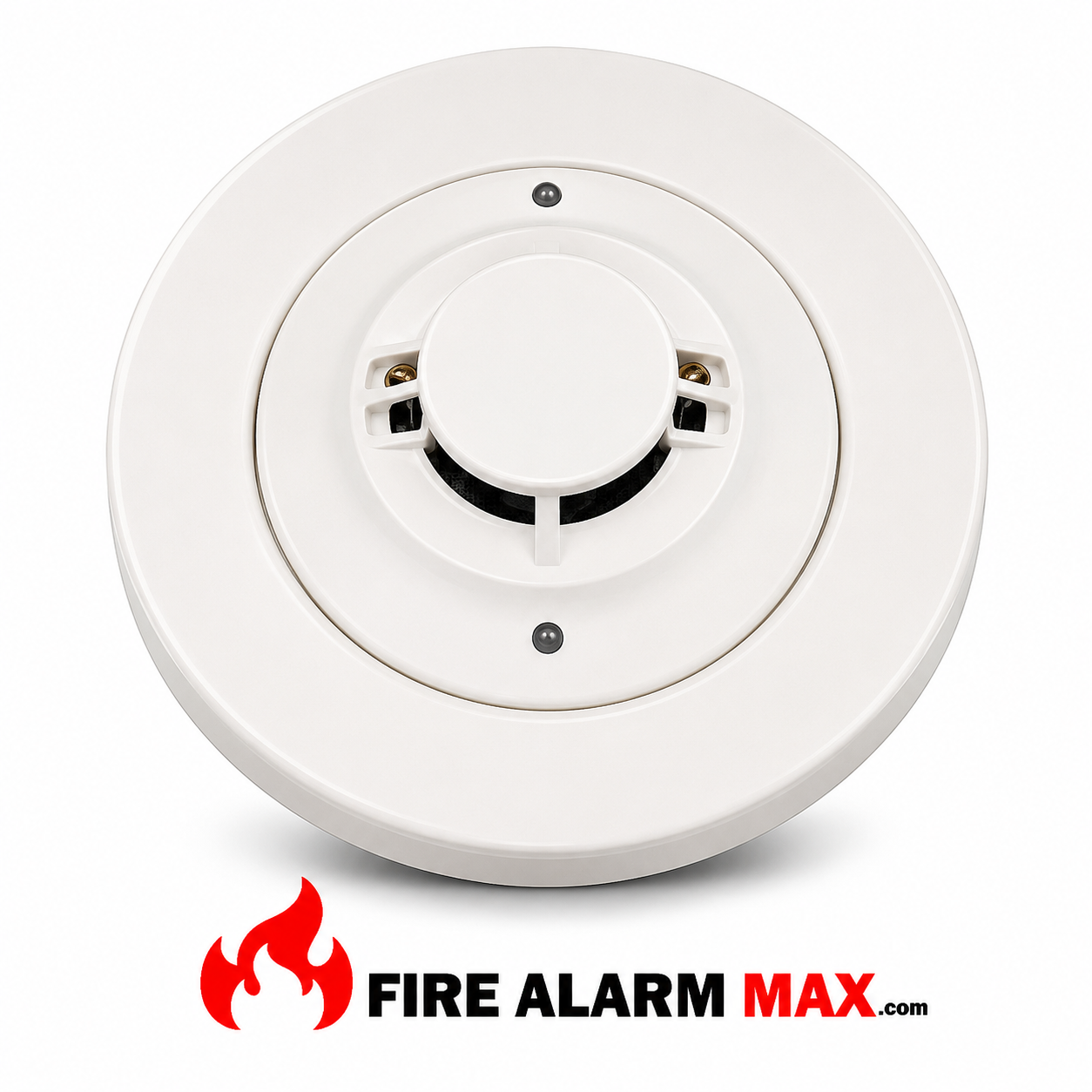

The Notifier NP-100T is a commercial smoke and heat detector designed for compatible Notifier FireWarden and Spartan fire alarm systems. It combines smoke detection with a fixed-temperature 135°F (57.2°C) heat sensor to provide dependable fire detection for commercial buildings.

The detector features rotary decimal addressing, dual status LEDs, plug-in installation, and support for remote LED annunciation. This product is intended exclusively for commercial fire alarm installations.

Product Functions

• Detects airborne smoke
• Detects fixed-temperature heat conditions
• Reports fire alarm conditions
• Monitors detector status
• Supports remote LED annunciation
• Plug-in detector installation
• Commercial fire alarm application

Electrical & System Information

The NP-100T operates on compatible Notifier signaling line circuits with an operating voltage of 15–32 VDC. Rotary decimal switches allow local device addressing, while the connected fire alarm control panel supervises detector operation and alarm status.

The detector requires a compatible mounting base and communicates continuously with the fire alarm control panel.

Features

• Commercial smoke and heat detection
• 135°F (57.2°C) fixed heat sensor
• Rotary decimal addressing
• Dual LED status indicators
• Plug-in detector head
• Remote LED annunciator support
• Low-profile housing
• Indoor commercial application

Mounting & Design

The NP-100T installs on compatible B710LP detector bases. Its plug-in construction allows efficient installation, testing, cleaning, and replacement without removing the installed base. Optional remote LED annunciators are supported for applications requiring remote indication.

Protection & Applications

Suitable for:

• Office Buildings
• Schools
• Hospitals
• Hotels
• Retail Stores
• Warehouses
• Government Buildings
• Industrial Facilities
• Commercial Properties

Compatibility

Compatible with:

• Notifier FireWarden-100-2 Fire Alarm Panels
• Notifier FireWarden-50 Fire Alarm Panels
• Notifier Spartan NSP-25 Fire Alarm Panels
• B710LP Detector Base
• RA400Z Remote LED Annunciator

Always verify compatibility with the installed fire alarm control panel and detector base before installation.

Technical Specifications

Manufacturer: Notifier

Parent Company: Honeywell

Model: NP-100T

Product Type: Commercial Smoke and Heat Detector

Smoke Detection: Smoke Sensing Chamber

Heat Detection: Fixed Temperature

Fixed Heat Rating: 135°F (57.2°C)

Operating Voltage: 15–32 VDC

Typical Standby Current: 300 µA @ 24 VDC

Maximum Alarm Current: 6.5 mA @ 24 VDC

Operating Temperature: 32°F to 100°F (0°C to 38°C)

Operating Humidity: 10%–93% RH Non-Condensing

Status Indicators: Dual LEDs

Addressing: Rotary Decimal Switches

Mounting Base: B710LP

Remote LED Support: RA400Z

Application: Indoor Commercial Fire Alarm Systems

Listings: UL Listed (UL 268), application dependent.

Applications

The Notifier NP-100T is designed for commercial fire alarm systems requiring combined smoke and fixed-temperature heat detection in a single device. It is commonly installed in offices, schools, hospitals, hotels, warehouses, retail facilities, and other commercial occupancies using compatible Notifier FireWarden or Spartan fire alarm systems.
