Description

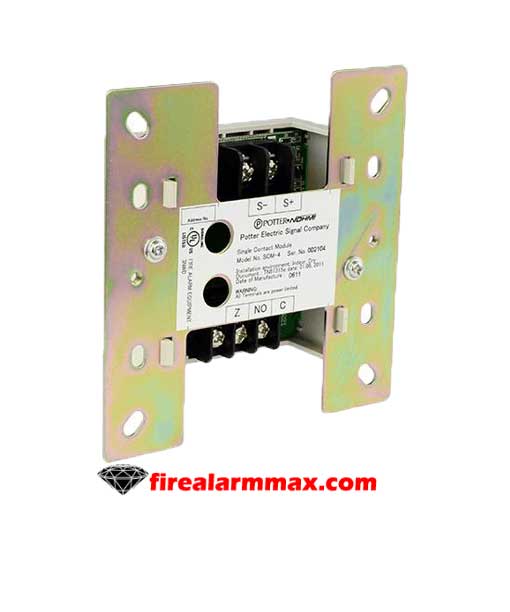

The Potter Electric SCM-4 is a contact module that supervises a circuit of dry-contact input devices such as sprinkles water flow, valve tamper switches, and conventional pull stations. In addition, the SCM-4 module uses one address on an SLC loop. The SCM-4 module includes one red LED to indicate the status of the module. In normal conditions, the LED flashes when the device is being polled by the control panel. Then, when a device is activated, the LED will light continuously. In the case of an open circuit, the LED will turn off.

Features:

• Operating Voltage: 22.0-24.0V
• SLC Standby Current (Max): 325 µA
• SLC Alarm Current (Max): 1mA
• Wiring Resistance of IDC (Max): 100Ω
• WiringCapcitance of IDC (Max): 1µF
• EOL Resistor: 5.1KΩ
• Max no. of SCI on SLC loop in Class A: 64 Units
• Operating Tempurature Range: 32 to 120ºF (0 to 49ºC)
• Operating Humidity Range: 0 to 93% (non-condensing)
• Max no. of Modules per Loop: 127 units
• Dimensions: 4.17” (106mm)L × 4.17” (106mm)W × 1.14” (29mm)
• Wiring terminals accept 22 to 14 AWG
• Does not support 2-wire smoke detectors
• Mounts on a standard 4” or double gang box
