Description

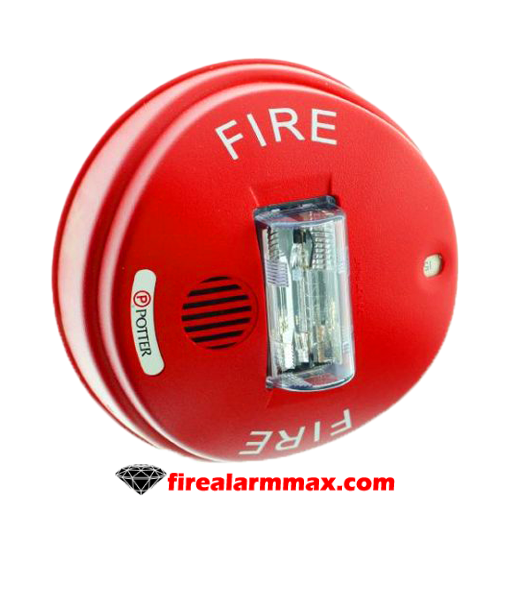

The Potter Electric Signal CHS-24R ceiling strobe offers dependable visual alarms at a lower current consumption rate. The Potter Electric Signal CHS-24R is a ceiling-mount strobe or horn/strobe combination. That offers dependable audible and visual alarms and the lowest current consumption. The CS/CHS offers tamperproof field selectable candela options of 15, 30, 75, 95, 115, and 150 candela

The CHS horn offers a continuous or synchable temporal three in 2400Hz and a mechanical tone. All tones are easy for the professional to change in the field by using switches. The models are shipped from the factory in the temporary three-alarm mode. The CS Series has a minimal operating current.

The Ceiling Mount Series comes standard with the 4″ mounting plate, which incorporates the popular Super-Slide® feature. That allows the installer to easily test for supervision. The product features a locking mechanism that secures the product to the bracket. The Potter Electric Signal CHS-24R features the patented Checkmate® – Instant Voltage Verification feature. Allows the installer to check the voltage drop draw without removing the signal. The CS Series appliances are ANSI/UL 464 and ANSI/UL 1971 listed for use with fire protective systems.

Features / Specifications

• Candela options 15, 30, 75, 95, 115, & 150
• Input Terminals 12 to 18 AWG
• Operating Temperature: 32°F to 120°F
• Nominal voltage 24 VDC
• Input Terminals 12 to 18 AWG
• Tamperproof re-entrant grill
• Operating Temperature: 32°F to 120°F (0°C to 49°C)

Datasheet
