Description

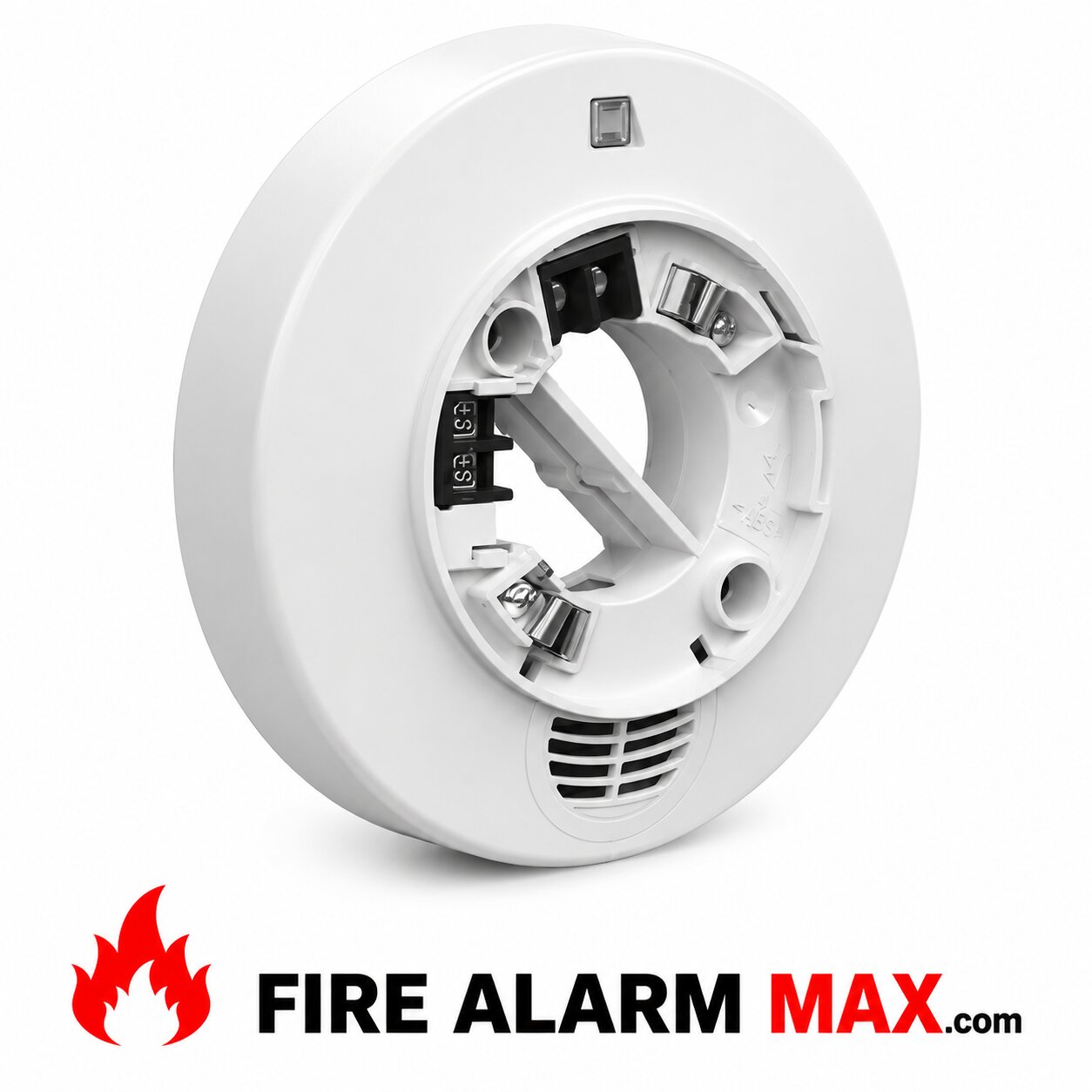

Potter PAD100-LFSB

Features
Addressable low-frequency sounder base allows for a single station, grouped, or all call activation
May b e mapped to any device connected to the control panel
Terminals accept 18 to 12 AWG wire sizes
Supports Class A, Class X, and Class B wiring
Does not require SLC Loop address, uses PAD sub point addressing feature
Complies with the Low-Frequency Signal Requirements per NFPA 72 and UL 464 for Audible Signaling Devices
24 VDC Sounder base power connection supervised internally by each sounder base. No external power supervision relays a re required

Description
The Addressable Low-Frequency Sounder Base (PAD100-LFSB) i s a sounder base. That may b e utilized in a variety of applications. The base has a locking feature for the sensor that may b e used or removed in the field. The sounder is accessible at the bottom of the unit.
The PAD100-LFSB low-frequency sounder base i s designed to meet NFPA 72 sleeping space requirements. To produce a frequency of 520 Hz +/- 10% with a square wave.
It i s shown that a lower frequency centered around 520 Hz. Ideal for awakening sleeping occupants, e ven those with mild to severe hearing loss.
The base has an independent sounder module that may b e programmed as a single station, zone, or all-call sounder. The PAD100-LFSB passes through the sound pattern sent to the sounder. It may reproduce in any pattern the power supply provides.
The PAD100-LFSB does not consume an address on the loop and i s fully programmable to operate with any input. On ce activated the sounder will follow the input from the power source and deactivate.
