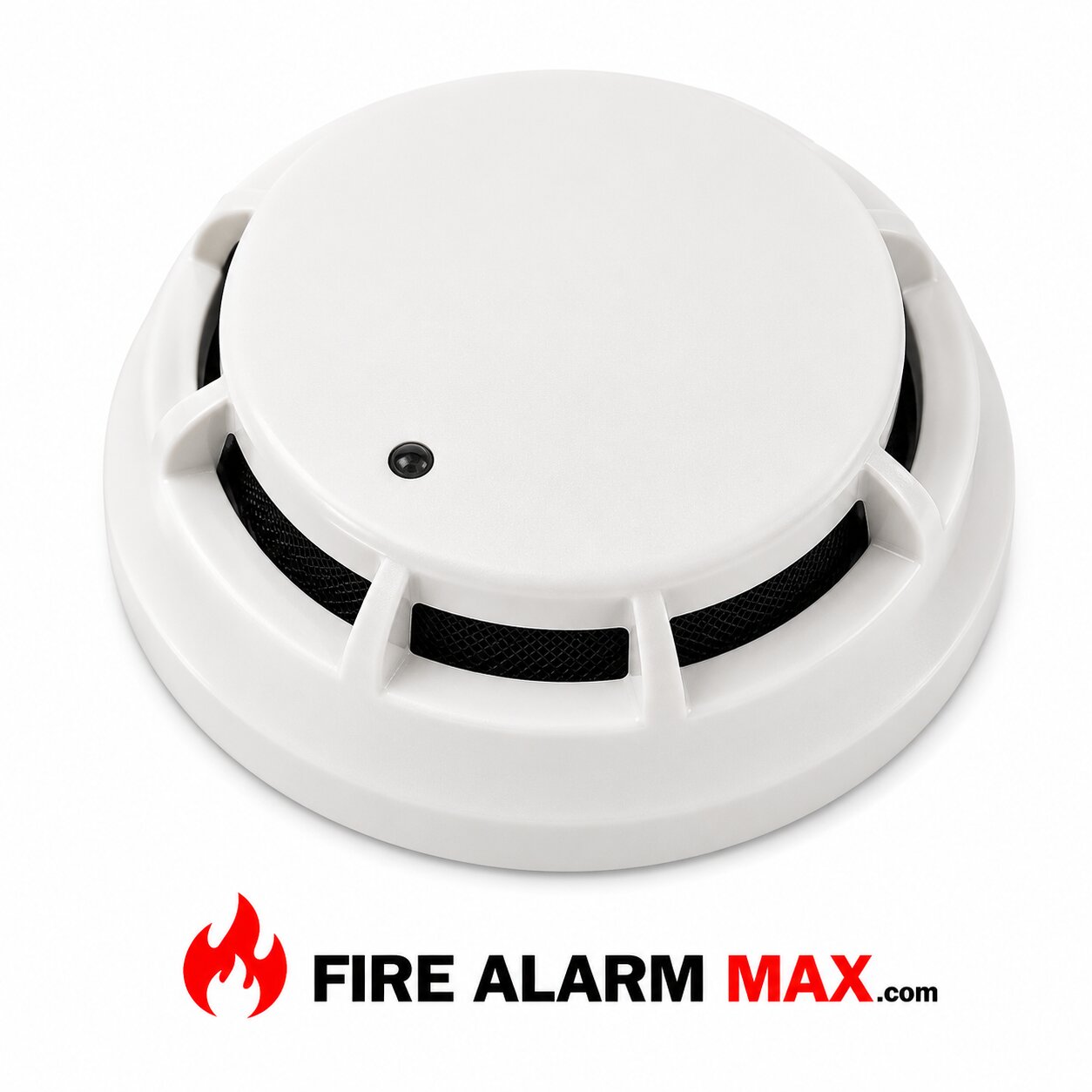

The Potter PAD100-PD is a commercial fire alarm smoke detector designed for compatible Potter fire alarm systems. Specifically, it provides dependable optical smoke detection for life-safety applications in commercial buildings. This product is intended exclusively for commercial fire alarm installations and is not surveillance equipment, communications equipment, consumer electronics, tracking equipment, or recording devices.
Built for dependable long-term performance, the PAD100-PD features optical smoke sensing, automatic drift compensation, selectable sensitivity, and a low-profile design. In addition, its durable eggshell white housing blends seamlessly into commercial interiors while supporting reliable fire detection in a wide variety of environments.
The Potter PAD100-PD supports commercial fire alarm systems by providing:
The PAD100-PD operates with compatible Potter fire alarm control panels utilizing the Potter Addressable Device (PAD) system architecture. Furthermore, it offers a selectable smoke sensitivity range from 1.0% to 3.7% obscuration per foot, allowing installers to configure the detector according to application requirements.
The detector continuously communicates its operating status while supporting automatic sensitivity compensation and maintenance monitoring. Always verify compatibility before installation.
The PAD100-PD uses advanced optical sensing technology to detect airborne combustion particles. As a result, it provides dependable early smoke detection for commercial fire alarm systems.
The detector automatically compensates for gradual dust accumulation and environmental changes. Consequently, it helps maintain consistent detection performance throughout its service life.
Integrated diagnostics monitor detector condition continuously. Therefore, maintenance personnel receive notification when cleaning or servicing is recommended before performance is affected.
Rear-mounted DIP switches simplify address configuration without requiring specialized programming equipment. In addition, installers can quickly configure the detector during installation.
The integrated LED provides a clear visual indication of detector status during normal operation, alarm conditions, and maintenance procedures.
The Potter PAD100-PD features a compact low-profile housing measuring less than two inches high when installed on a compatible detector base. Furthermore, its eggshell white finish complements modern commercial interiors while maintaining a professional appearance.
The detector installs easily on compatible PAD100 Series detector bases, allowing straightforward installation, inspection, and replacement.
The PAD100-PD is designed exclusively for commercial fire alarm systems requiring dependable optical smoke detection.
Typical applications include:
Always install the detector according to local building codes, fire codes, NFPA requirements, and the manufacturer’s installation instructions.
The Potter PAD100-PD is designed for use with compatible Potter fire alarm control panels and PAD100 Series detector bases.
Compatible bases include:
Before purchasing or installing this detector, verify compatibility with the intended fire alarm system and project requirements.
Manufacturer: Potter Electric Signal Company
Model: PAD100-PD
Product Type: Commercial Fire Alarm Smoke Detector
Detection Technology: Optical Smoke Detection
Operating Voltage: 24 VDC
Standby Current: 300 µA
Status Indicator: One Red LED
Sensitivity Range: 1.0%–3.7% Obscuration per Foot
Addressing Method: DIP Switches
Maximum Addresses per Loop: 127
Maximum Active LEDs per Loop: 30
Operating Temperature: 32°F to 120°F (0°C to 49°C)
Relative Humidity: 0–93% Non-Condensing
Air Velocity Rating: 0–300 ft/min
Housing Color: Eggshell White
Weight (Without Base): 3.56 oz (101 g)
Dimensions (Without Base):
Warranty: 5 Years
Listings: UL Listed, UUKL Listed for Smoke Control
Always verify technical specifications using the manufacturer’s official documentation before installation.
The Potter PAD100-PD is commonly installed in compatible commercial fire alarm systems serving:
Before installation, verify compliance with local codes, project specifications, and manufacturer recommendations to ensure proper system operation.
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
