Description

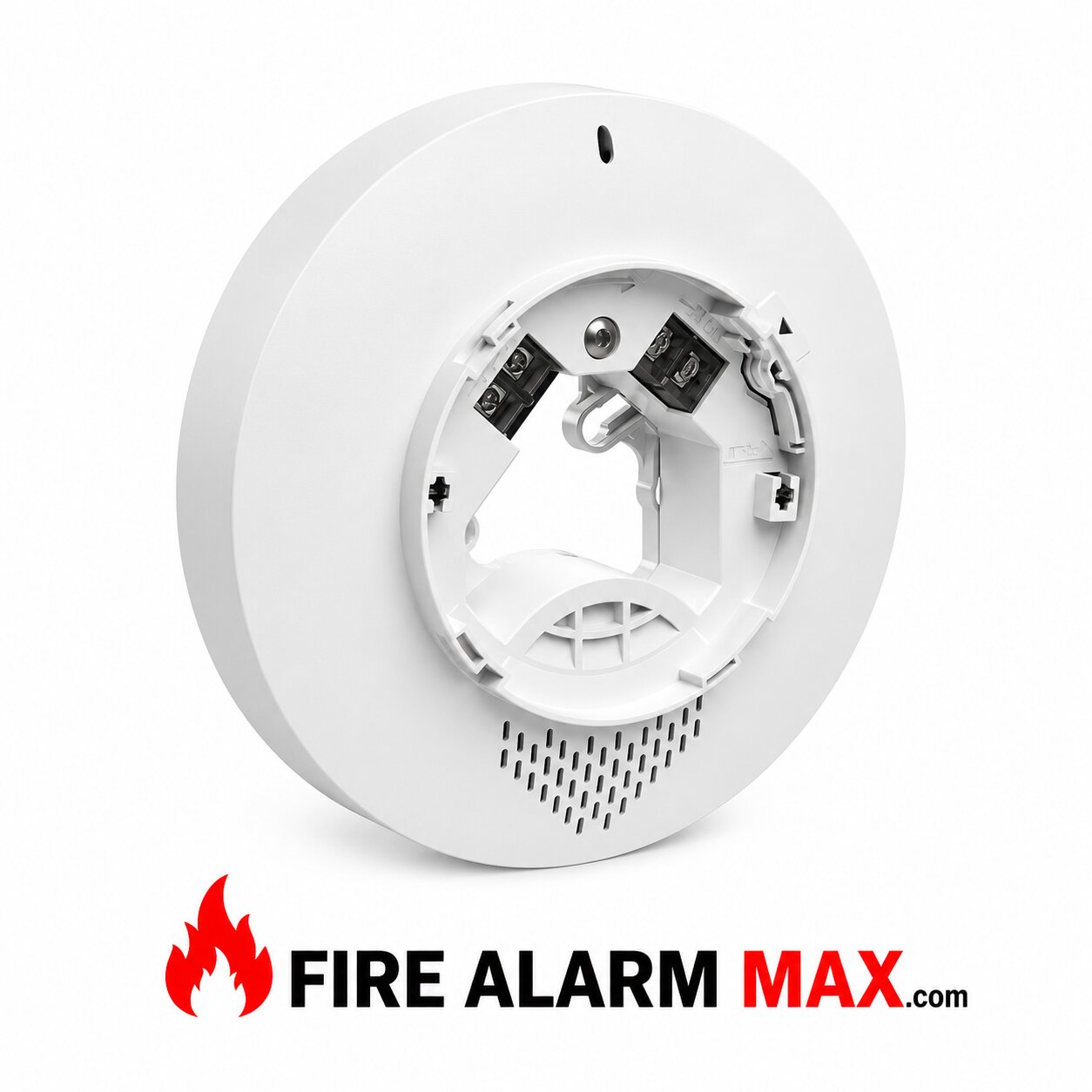

The Potter PAD300-LFSB is a commercial addressable low frequency sounder base designed for compatible Potter PAD300 Series detectors and fire alarm control panels. It provides a 520 Hz low-frequency audible signal that complies with NFPA 72 and UL 464 requirements for sleeping areas, making it ideal for applications requiring enhanced occupant notification.

The sounder base operates independently of the attached detector and may be programmed for single-station, grouped, or all-call activation. It uses Potter’s PAD sub-point addressing feature, eliminating the need for a separate SLC address while providing flexible programming options. This product is intended exclusively for commercial fire alarm installations.

Product Functions

• Provides 520 Hz low-frequency audible notification
• Supports single-station activation
• Supports grouped sounder activation
• Supports all-call sounder activation
• Passes through programmed sound patterns
• Independently programmable from the attached detector
• Provides supervised 24 VDC sounder operation
• Supports smoke control applications

Electrical & System Information

The PAD300-LFSB communicates through the attached PAD300 detector using Potter’s PAD sub-point addressing, allowing the base to function without consuming an additional SLC loop address. The sounder receives supervised 16–33 VDC operating power while communication occurs through the compatible PAD signaling loop.

The sounder reproduces the notification pattern supplied by the compatible control panel or power source, supporting constant, ANSI Temporal 3, ANSI Temporal 4, March Time, Double Time, and other programmed audible patterns. Synchronization is provided through compatible Potter control panels and notification power supplies.

Features

• Commercial low frequency sounder base
• 520 Hz square-wave output
• PAD sub-point addressing
• No additional SLC address required
• Single-station, grouped, or all-call operation
• 24 VDC supervised sounder power
• Compatible with Class A, Class B, and Class X wiring
• Built-in LED status indicator
• Detector locking feature
• Low-profile design
• UUKL listed for smoke control
• Supports multiple audible notification patterns

Mounting & Design

The PAD300-LFSB is designed for use with compatible PAD300 Series detectors and installs on standard single-gang, 3½-inch octagon, double-gang, 4-inch octagon, 4-inch square, and metric electrical boxes. The detector twists securely into the base and may be locked in place using the integrated locking feature.

The low-profile base provides convenient access to field wiring terminals that accept 22–12 AWG conductors while allowing easy detector removal for testing and maintenance.

Protection & Applications

Suitable for:

• Hotels
• Dormitories
• Apartment Buildings
• Assisted Living Facilities
• Healthcare Facilities
• Student Housing
• Commercial Buildings
• Sleeping Areas
• Commercial Fire Alarm Systems

Compatibility

Compatible with:

• Potter Addressable Fire Alarm Control Panels
• Potter PAD Protocol Systems
• PAD300-PD Smoke Detector
• PAD300-HD Heat Detector
• PAD300-PHD Smoke and Heat Detector
• PAD300-CD Carbon Monoxide Detector
• PAD300-PCD Smoke and CO Detector
• PAD300-DD Duct Smoke Detector
• PAD300-4DB Detector Base
• PAD300-6DB Detector Base

Always verify compatibility with the installed Potter fire alarm control panel, detector model, power supply, notification circuit, and project requirements before installation.

Technical Specifications

Manufacturer: Potter Electric Signal Company

Model: PAD300-LFSB

Product Type: Addressable Low Frequency Sounder Base

Audible Frequency: 520 Hz ±10% Square Wave

Communication: PAD Sub-Point Addressing

Additional SLC Address Required: No

Power Supply Voltage: 16–33 VDC

SLC Voltage: 24 VDC

SLC Standby Current: 300 µA

Power Standby Current: 6.0 mA

Power Active Current: 155 mA

Alarm LED Current: 1.4 mA

Sound Pressure Level: 75 dBA @ 10 ft (UL 464); 85 dBA @ 10 ft (UL 268)

Wire Size: 22–12 AWG

Operating Temperature: 32°F to 150°F (0°C to 66°C)

Operating Humidity: Up to 93% RH Non-Condensing

Diameter: 6.4 in. (163 mm)

Height: 1.57 in. (40 mm)

Weight: 8.47 oz. (240 g)

Mounting: Standard Electrical Boxes

Application: Indoor Commercial Fire Alarm Systems

Listings: UL 464, UUKL Listed for Smoke Control, and compliant with NFPA 72 low-frequency signaling requirements. Verify product labeling and project requirements before installation.

Applications

The Potter PAD300-LFSB is designed for commercial fire alarm systems requiring low-frequency audible notification in sleeping areas and other occupancies where 520 Hz signaling is specified. Typical applications include hotels, apartments, dormitories, assisted living facilities, healthcare facilities, student housing, and other commercial buildings utilizing compatible Potter PAD300 Series detectors and addressable fire alarm systems.

PAD300-LFSB
