Description

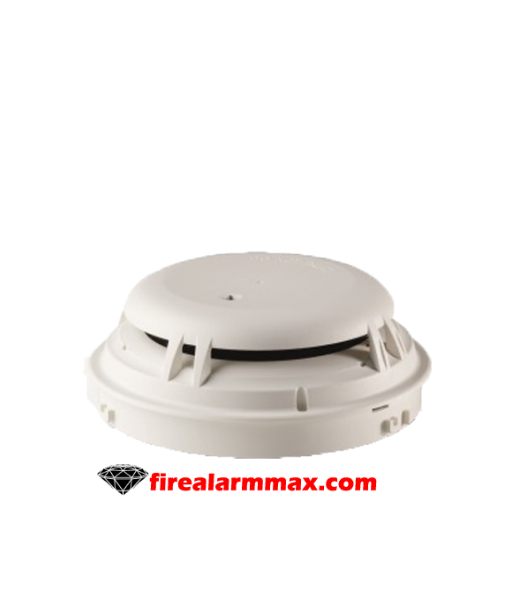

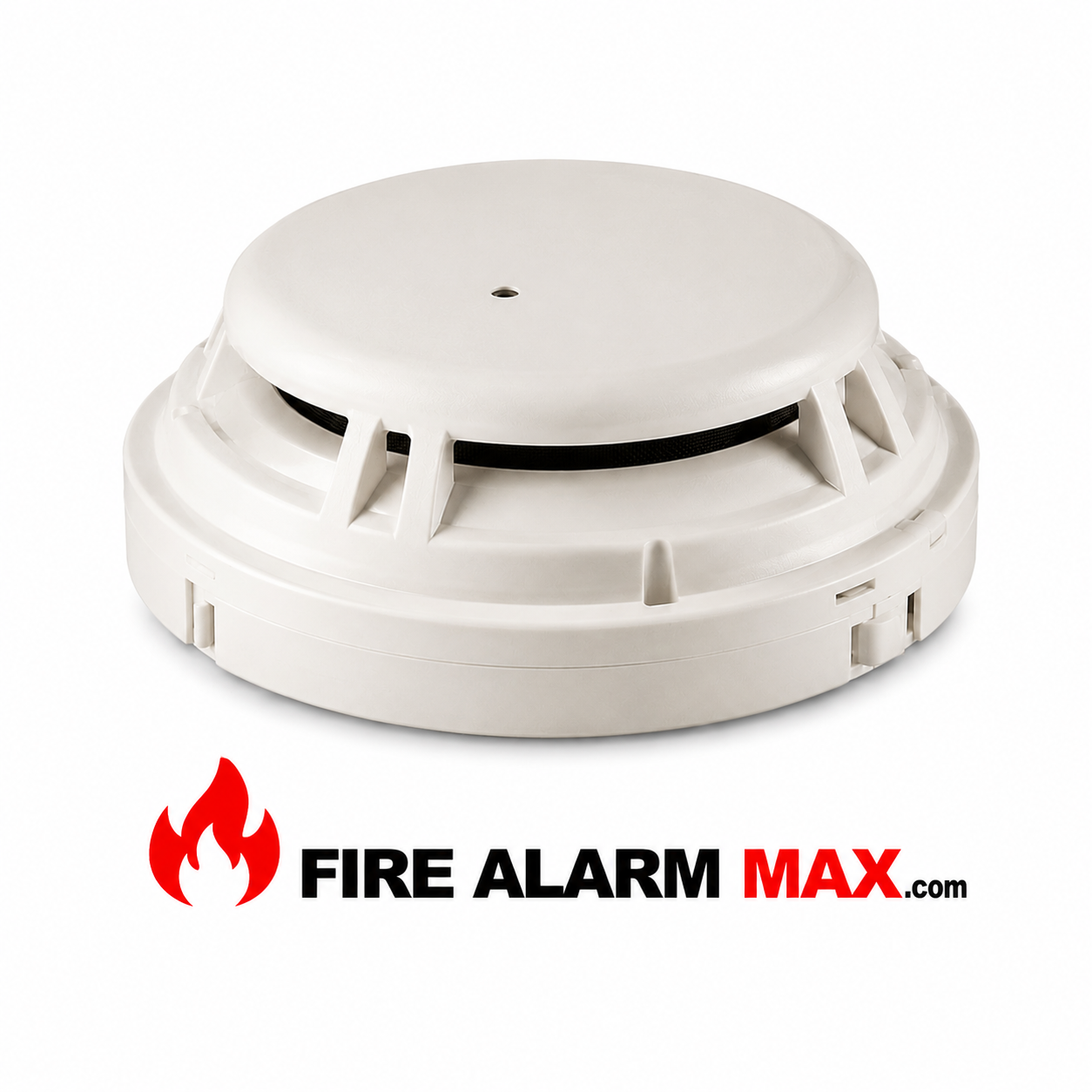

Siemens FDOOT441 Multi-Criteria Fire Detector with ASAtechnology™: Precision Detection for Demanding Environments

The Siemens FDOOT441 Multi-Criteria Fire Detector with ASAtechnology™ delivers precise fire detection using a combination of photoelectric, thermal, and gas sensors. Engineered for challenging applications, it minimizes false alarms while providing fast and reliable identification of fire threats.

Key Features

ASAtechnology™ for Dynamic Sensitivity

At the core of the FDOOT441 is Siemens’ Advanced Signal Analysis (ASAtechnology™), which allows the detector to adapt to changing environmental conditions. It continuously analyzes signals from smoke, heat, and gas sensors to differentiate between real fire scenarios and deceptive phenomena like dust, steam, or aerosols.

Multi-Criteria Sensing

The device uses multiple detection criteria—smoke, heat, and CO—to improve reliability. This multi-sensor capability increases responsiveness while reducing the risk of false alarms. As a result, it provides an ideal solution for complex environments.

Intelligent Communication

The Siemens FDOOT441 Multi-Criteria Fire Detector communicates via the FDnet/C-NET loop protocol, ensuring fast and reliable data transmission to the fire control panel. Each detector is individually addressable, supporting location-specific alerts and targeted responses.

Low-Maintenance Design

Its dirt-resistant detection chamber and intelligent signal processing reduce the need for frequent cleaning. Additionally, the detector self-monitors its functionality and alerts maintenance personnel proactively when service is needed.

Applications

This model is particularly well-suited for environments where traditional detectors may be prone to nuisance alarms. These include data centers, industrial areas, airports, laboratories, and atriums. Because it adapts dynamically, the FDOOT441 performs reliably in both stable and highly variable ambient conditions.

Advantages

• High Detection Accuracy: Detects fire earlier and more reliably through ASA-based multi-sensor processing.

• Reduced False Alarms: Intelligent algorithms distinguish between smoke and non-threatening particulates.

• Customizable Profiles: Supports site-specific detection parameters for optimized performance.

• Maintenance Efficiency: Features self-diagnostics and contamination resistance for lower upkeep.

• Seamless Integration: Fully compatible with Siemens Cerberus PRO systems via FDnet or C-NET.
