Description

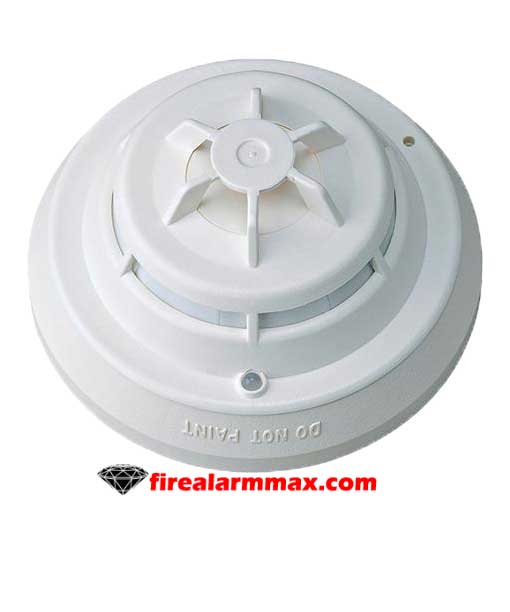

The Intelligent Thermal Siemens FPT-11C Heat Detector provides an advanced detection method, address programming, and supervision. Combined with a sophisticated fire alarm control panel.

Siemens FPT-11C Heat Detector uses a surface-mounting base. That mounts on a 4-inch octagonal, square, or single-gang electrical box. And i s compatible with Model DPU and FPI-32 Field Programmer / Testers. Which ar e compact, portable, and menu-driven accessories that make programming and testing detectors faster.

Each of these field programmers/testers eliminates the need for cumbersome, unreliable mechanical programming methods.

And they reduce installation and service costs, via electronically erasable programmable read-only memory (EEPROM). And can test Model FPT-11’s performance (for proper function) b efore the detector i s even installed.

Siemens FPT-11C detector has microcomputer-chip technology, and highly stable, solid-state electronic circuitry. Utilizes a modern, accurate, and shock-resistant thermistor to sense temperature changes. This electronic sensing method eliminates thermal lag associated with mechanical-temperature sensing devices. And provides almost instantaneous temperature information to the FACP.

The microprocessor supervises all EEPROM memory locations and provides a high tolerance to EEPROM faults. Siemens FPT-11 Heat Detector uses a surface-mounting base (Model DB-11). That mounts on a 4-inch octagonal, square, or single-gang electrical box. Relay base Model DB-X11 RS mounts to a 4-inch square deep electrical box. Audible base Model ADBX11 mounts to a 4-inch square deep electrical box.
