Description

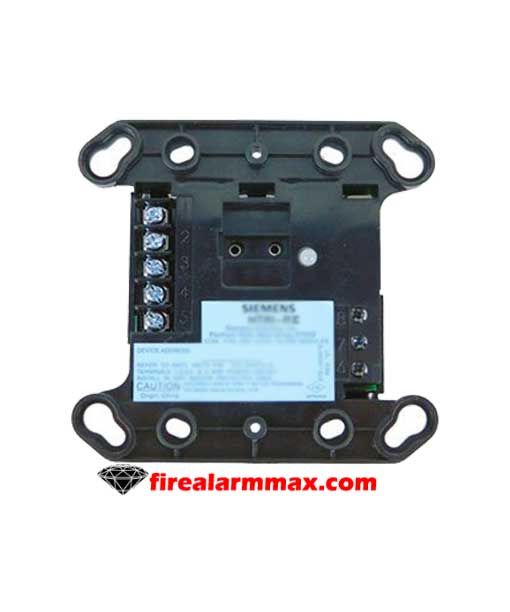

he Siemens HTRI-RZ Intelligent interface module is design to provide the means of interfacing direct shorting devices to the fire alarm control panel (FACP) loop circuit.

In general, the HTRI-series modules provide the most advanced method of address programming and supervision on the market ─ combined with sophisticated control panel communication. Also, each HTRI-series interface module incorporates a microcomputer chip, and each interface module achieves the state of an `intelligent device’ through its microcomputer-chip technology, combined with its sophisticated, bi-directional communication capabilities with the FACP.

Additionally, the Siemens HTRI-RZ relay and contact device input controlled at the same address. For the FACP, the relay as well as input contact controlled as a separate function. Furthermore, the relay is typically used where control or shunting of external equipment is required

Features / Specifications

• Interfacing and also supervising normally open (N.O) or normally closed (N.C) contacts
• Integral single-pole, double-throw (SPDT) relay on Model HTRI-R | -RZ (up to 4 amps)
• Polarity insensitive with SureWireTM technology
• Dynamic supervision
• Two-wire operation
• Multi-color light-emitting diode (LED) indicates system status
• Mounts in a 4-inch (10.2 cm.) square, 2–¼” (5.7 cm.) deep single-gang or double-gang back box

NOTE: For Marine installations, a metal cover faceplate (Model USCG-HPLATE) available separately
