Description

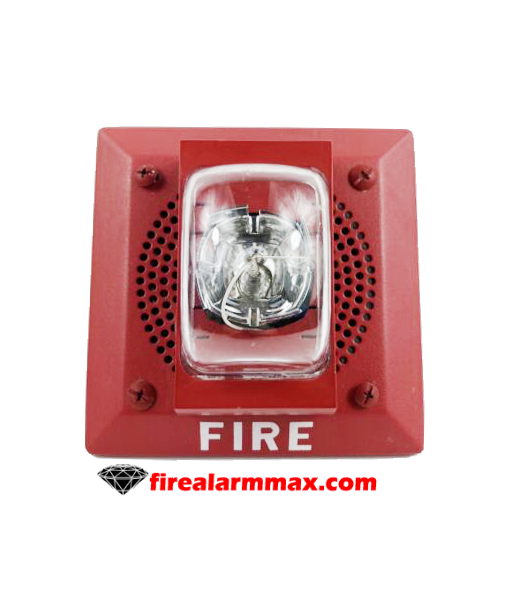

The Siemens S-HPMG-WP Waterproof Speaker (Red) is a fire alarm Speaker Strobe. Where the clear-Speak Plus speakers are highly efficient 4-watt (maximum output) speakers that have been designed for emergency voice evacuation applications. Each S-HPMG-WP series speaker is design to provide a frequency response within the human voice spectrum.

The Siemens S-HPMG-WP Waterproof Speaker (Red) series speakers are list in accordance with UL 1480 for speaker appliances and strobe combination units are list in accordance with UL 1971 for indoor use and UL 1638 for outdoor use. The S-HP series speakers are installer selectable to either 25V or 70V. Accordingly each speaker provides a choice of 7 output taps. All speakers are tap at 1/16 – watt at the factory.

The strobes use a Xenon flashtube with solid state circuitry for maximum reliability and efficiency. This have modern rounded dome shape made of clear polycarbonate for maximum performance. Also, have a technology call InstaSync built into each unit. The InstaSync technology automatically recognizes the need for the strobe’s synchronization function when a DSC (Sync) module or PAD-3 is used for driving the synchronization of a notification appliance circuit.

As a result, some of the features about this speaker strobe  are:

• The Adapter feature offers four field selectable candela values – 15/75, 30/75, 75 or 110.
• Strobe operates in either sync or non-sync modes.
• Even more high efficiency design.
• Clear audio reproduction with selectable audio power taps (1/16, 1/8, 1/4, 1/2, 1, 2 & 4 watts).
• Terminals accept 12 awg wire.
• ADA/NFPA/ANSI compliant.
