Description

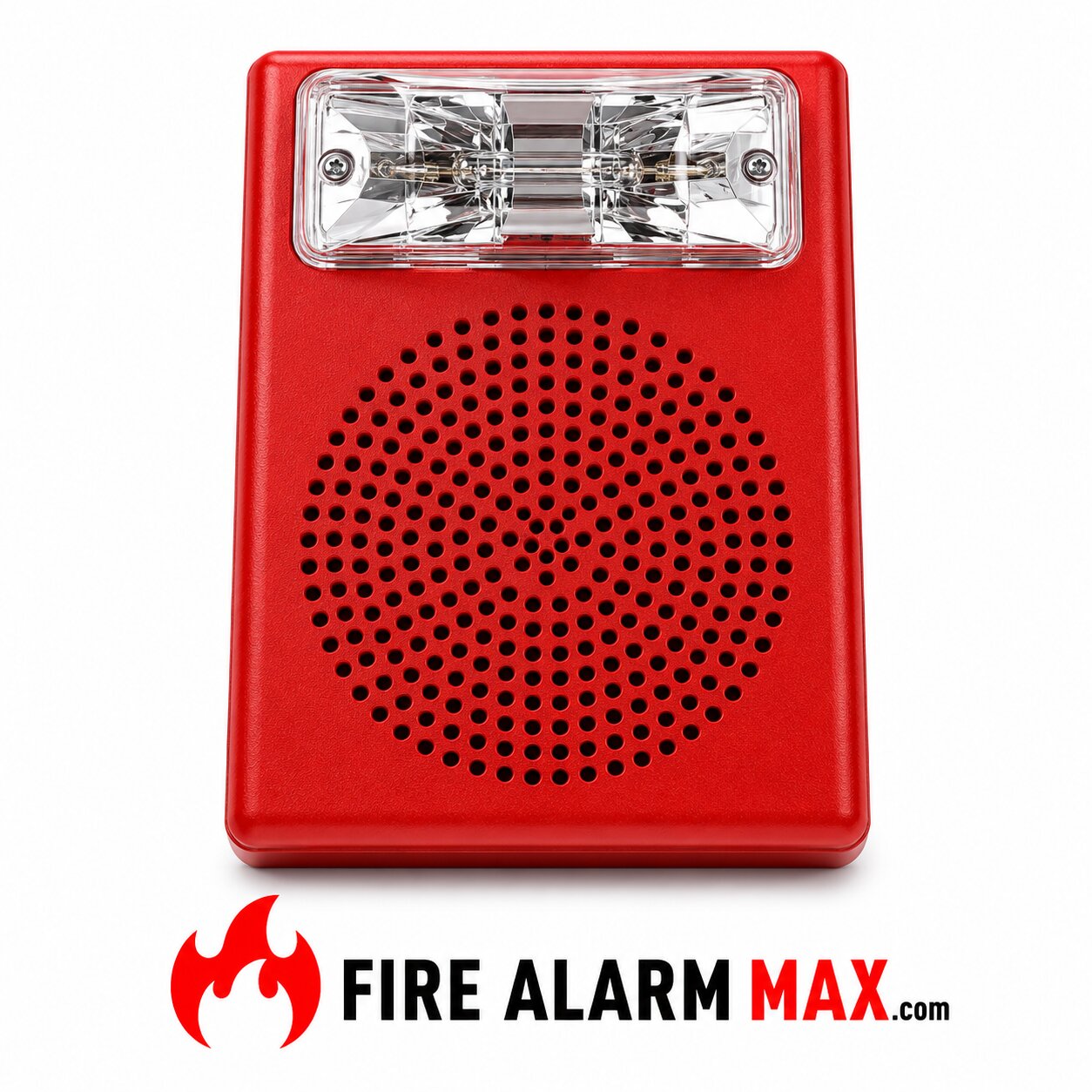

The Siemens SE-MC-R Speaker Strobe field-selectable Candela settings of: 15/30/75/110cd, or with field-selectable High Candela settings: 135/185cd, Strobe portion of Siemens Series ‘SE’ appliances can be synchronize using the Siemens 50-point, 252-point and 504-point addressable fire alarm control panels (FACPs), as well as with: FireFinder® XLS/V FACP, PAD-3 or PAD-4™ NAC Extenders. Siemens dual-sync control (DSC) modules.

Some of the features for the Siemens SE-MC-R Speaker Strobe are described below, for example:

• Ceiling-mount models are available with field-selectable Candela.
• High-efficiency design for maximum output at minimum wattage across a frequency range of 562 to 4,470 Hz.
• Field-selectable taps for 25 or 70 VRMS operation from 1/8 Watt up to 2 Watts.
• Fast installation with In / Out screw terminals using Speaker portion is design for a field-selectable input of either 25 or 70 VRMS; with selectable power taps.
• Also, speakers are composed of a seal-back construction.
• The strobes do not drift out of synchronization at any time during operation.
• The strobes will revert to a non-synchronized flash if the sync module or Power Supply should fail to operate.
• Ceiling-mount, speaker-strobe Series ‘SE’ appliances are designed for indoor, flush mounting.
• Speaker and speaker-strobe incorporate a speaker-mounting plate with a snap-on grille cover.

Download the Specification sheet in .pdf format
