Description

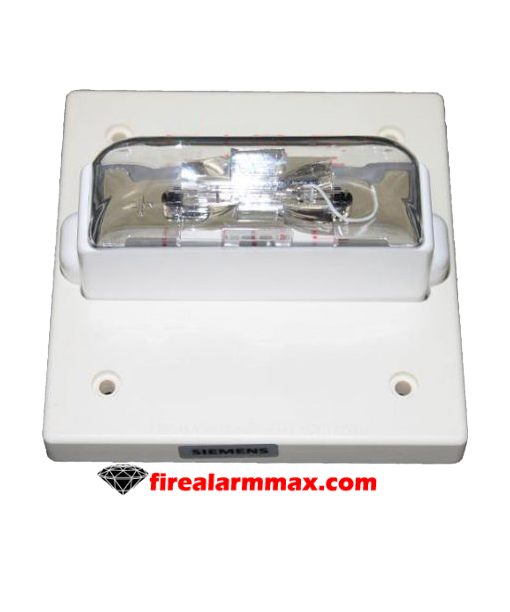

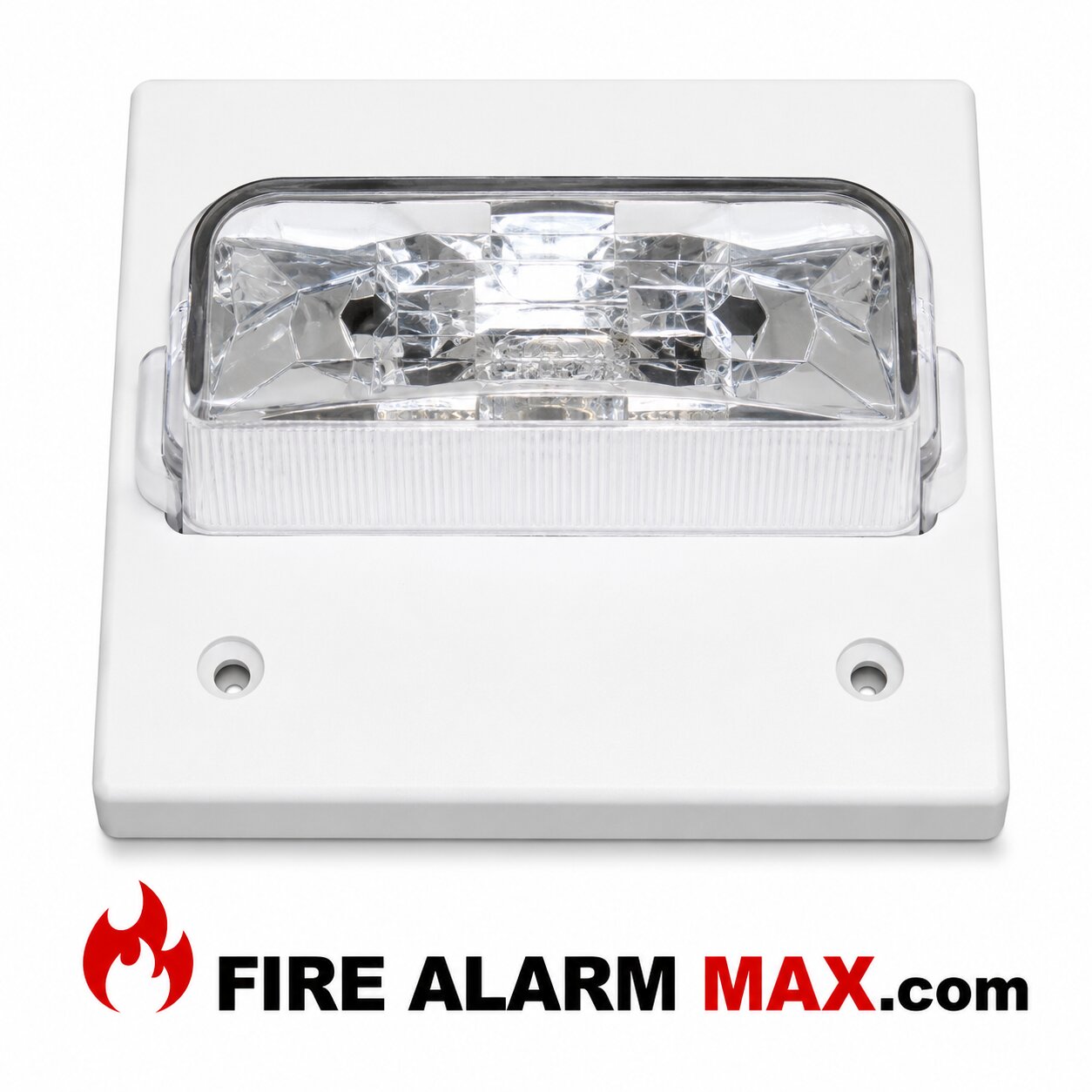

Siemens ST-75-CW-WP Strobe Appliances and Strobe Plates have lower current draw while maintaining out­standing performance, reliability, and cost-effectiveness. These versatile appliances will satisfy virtually all re­quirements for indoor, wall, or ceiling mount applications.

Ceiling mount models include the MC-C multi-can­dela ceiling strobe with field selectable intensities: 15/30/75/95cd or the high-intensity HMC-C strobe with field selectable 115/177cd. Furthermore, all models synchronized using the 5406B sync modules, MPC-6000 panel, MPC-7000 pan­el, or RSE-300 power supply with built-in sync protocol. Synchronized strobes can eliminate possible restrictions on the number of strobes in the field of view.

The Siemens ST-75-CW-WP synchronized strobes offer an easy way to comply with ADA recommendations concerning photosensitive epi­lepsy as well as meet the requirements of NFPA 72. The ST Series Strobes employ an Integral Strobe Mounting Plate that is mounted to a single gang, double gang, 4” square, 100mm European back­boxes, or the SHBBS surface back-box. Additionally, the ST Series Multi-Candela Strobe Plates are cost-effective to retrofit required wall strobe appliances to bell; easily mount to standard 4” back-boxes or surface mount use with the SBL2S surface back-box. UL Listed and ULC, CSFM, as well as FM pending. Meets OSHA 29 Part 1910.165.
