Description

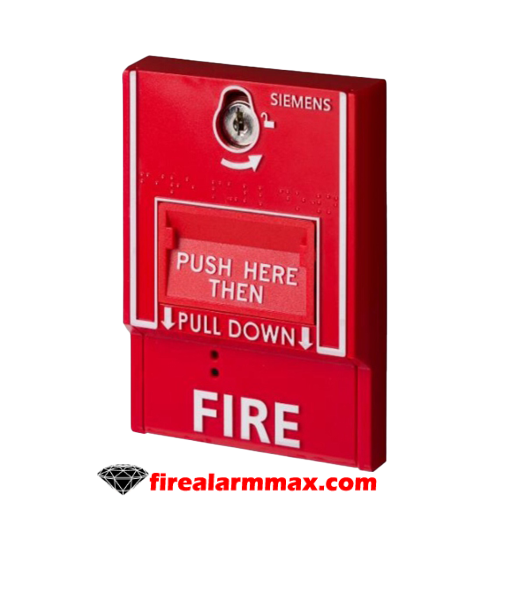

Siemens XMS-M

The XMS-Series of manual pull stations a re a complete addressable and conventional pull station portfolio. That includes single-action, double-action, and metal versions.
The addressable versions feature built-in Class X isolation capability for increased system survivability. All models feature a T-45 reset key to match the fire alarm panel enclosure. Addressable models feature a tri-color status LED to indicate normal, alarm, and trouble status. All modules utilize one address.
The manual stations can b e commissioned non-isolation (polarity insensitive) or isolation “X-Series” modes of operation.

Compatible with Siemens FACPs. XMS-S i s a single-action pull station in a plastic housing. That requires one action by the user to initiate the alarm. XMS-D i s a double-action pull station in a plastic housing. That requires two actions by the user to initiate an alarm. The Model XMS-M i s a single-action pull station in a metal housing. That requires one action by the user to initiate the alarm. These models a re field-installed addressable devices containing advanced control panel communication technology.
The XMS-Series manual pull stations feature a “maintenance trouble”. That places the fire alarm panel in a trouble condition. If an XMS i s accidentally left in an armed status. Wh en the cover i s removed for maintenance work.
This technology provides two-directional communication with the control panel. To reset the stations, insert the Siemens T45 key provided into the key lock. And turn the key 10-15 degrees counter-clockwise as the arrow shows. The cover will move upward to the normal position. Rotate the key clockwise and remove the key from the lock. At the Normal position, the top of the Cover is flush with the top surface of the Base. Reset the Fire Alarm Control Panel to clear the alarm.
