Description

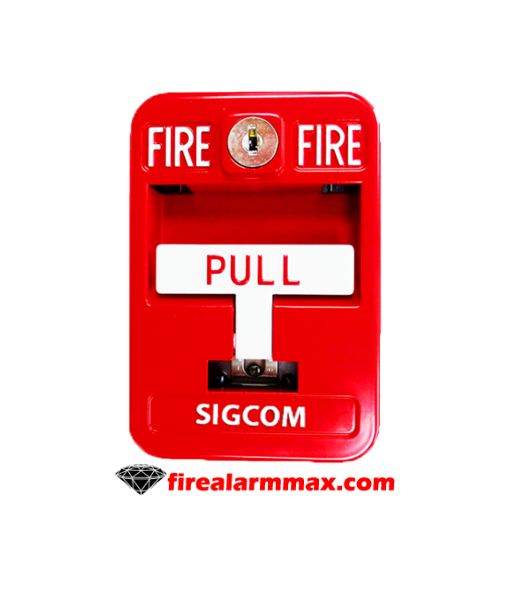

The Sigcom SG-42SK2-SC is a key-reset, manual pull station designed to meet the requirements of many applications. They a r e constructed from a rugged, lightweight, die-cast metal alloy for increased performance and longevity. This SG-42SK series of stations a r e available in single-action (PULL lever). Or dual-action (PUSH bar and PULL lever) models.

The Sigcom SG-42SK2-SC pull stations include a terminal strip that can accommodate wiring from #22 to #14 AWG. Contacts are gold plates to minimize the risk of corrosion. All models have b een tested by UL. And found in compliance with the pull force requirements of the Americans with Disabilities Act (ADA).

The stations a r e operate by pulling the handle marked “PULL” on the front of the unit. At that point, the handle will lock in place and is easily visible from up to 50 feet. The activation handle i s reset by opening the station with the key. Placing the “PULL” handle to its normal upright position, and relocking the station. On the dual-action, the “PUSH” bar moves inward allowing the “PULL” handle to b e operated by a single hand.

Features / Specifications

• Operating Temperature: -40°F to 150°F
• Wiring: 22 to 14 AWG
• Switch Rating: 5 Amps @ 125 VAC, 2 Amps @ 240 VAC
• Screw Terminal Connections
• DC and AC Voltage Contact Ratings
• Gold Plated Alarm Contacts
• Surface or Weatherproof Back-box
