Description

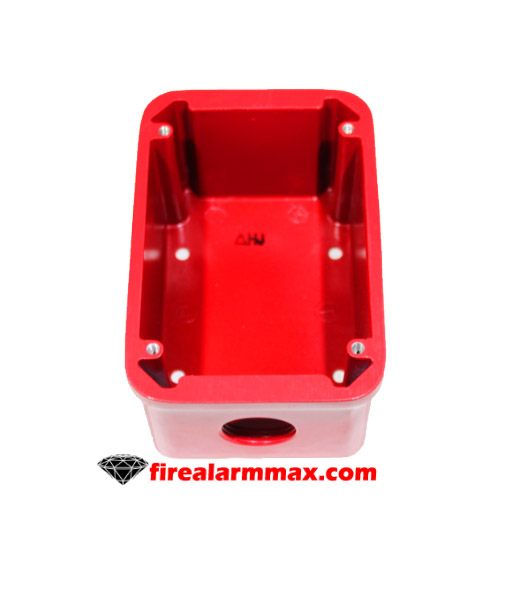

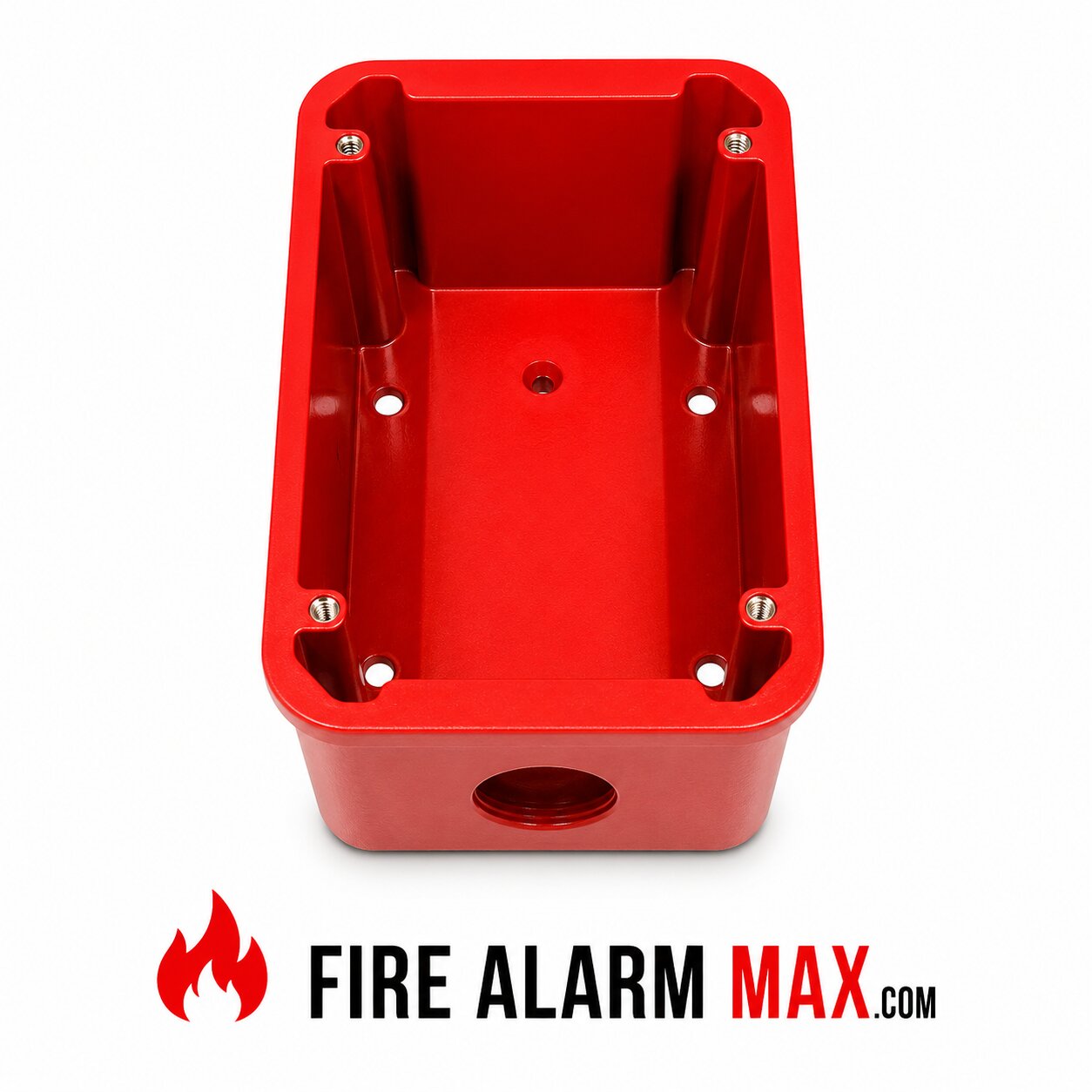

Sigcom SG-WP Weatherproof Metal Back Box (Red)

The SG-42SK Series are key-reset, manual pull stations designed to meet the requirements of many applications. They ar e constructed from a rugged, lightweight, die-cast metal
alloy for increased performance and longevity. This series of stations i s available in single-action (PULL lever) or dual-action (PUSH bar and PULL lever) models.
Sigcom SG Series pull stations include a terminal strip that can accommodate wiring from #22 to #14 AWG. Contacts a re gold-plated to minimize the risk of corrosion. All models have b een tested by UL and found in compliance with the pull force requirements of the Americans with Disabilities Act (ADA).
Operation
The stations a re operated by pulling the handle marked “PULL” on the front of the unit as far down as it will go. At that point, the handle will lock in place and i s easily visible from up to 50 feet.
The activation handle i s reset by opening the station with the key, placing the “PULL” handle in its normal upright position, and relocking the station. On the dual action, the “PUSH” bar moves
inward allowing the “PULL” handle, to b e operated by a single hand.
Mounting Configurations
Semi-Flush–All models mount on a standard single-gang back box.
Surface Mount Interior–Use SigCom SGB-32S
Surface Mount Exterior–Use SigCom die-cast weatherproof back-box #SG-WP. Includes gasket set, final assembly achieves NEMA 3R rating.
