Description

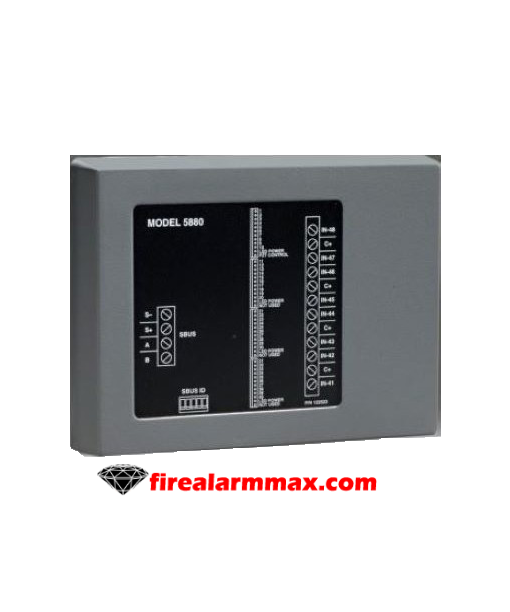

Silent Knight SK-5880

The 5880 IO / LED Driver module provides an effective means to customize your remote annunciation.
A single 5880 provides 40 programmable LED outputs and eight supervised dry contact inputs. You can use up to eight 5880 modules on one FACP for maximum flexibility. The 5880’s compact size allows for mounting inside a remote graphic annunciator or in an accessory cabinet.
COMPATIBILITY
The 5880 i s compatible with the fo llowing Honeywell Silent Knight fire alarm control panels:
6820: Addressable fire alarm control panel
6820EVS: Addressable fire alarm control panel with an emergency voice system.
6808: Addressable fire alarm control panel
6700: Addressable fire alarm control panel
5700: Addressable fire alarm control panel
5808: Addressable fire alarm control panel
5820XL: Addressable fire alarm control panel
5820XL-EVS: Addressable fire alarm control panel with an emergency voice system.

FEATURES & BENEFITS
40 programmable open collector LED outputs
Provides 8 supervised dry contact inputs for system or alarm monitoring functions
Its compact size allows mounting inside the annunciator, or in an accessory cabinet
No external resistors a re required for the 5880 LED driver outputs
DIP switch addressable
4-wire connection to control panel SBUS
UL 864 listed; complies with NFPA 72
MEA 429-92-E, Vol. 9
FM approved
CSFM listed
Individually mapped outputs
Inputs for dry contacts or a remote silence or reset switch
You can use up to eight 5880 modules on one control panel for maximum flexibility
