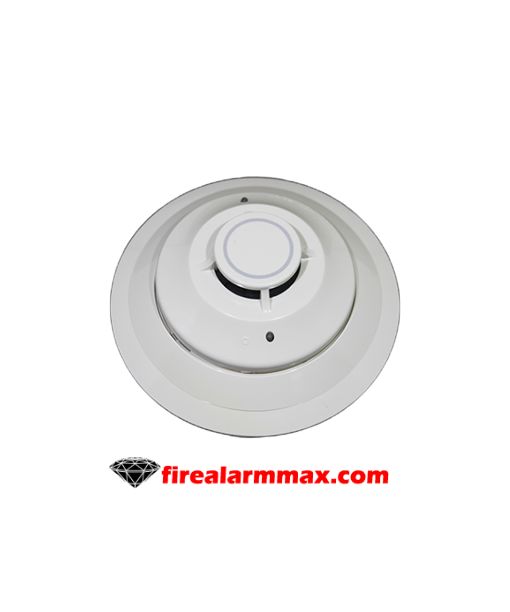

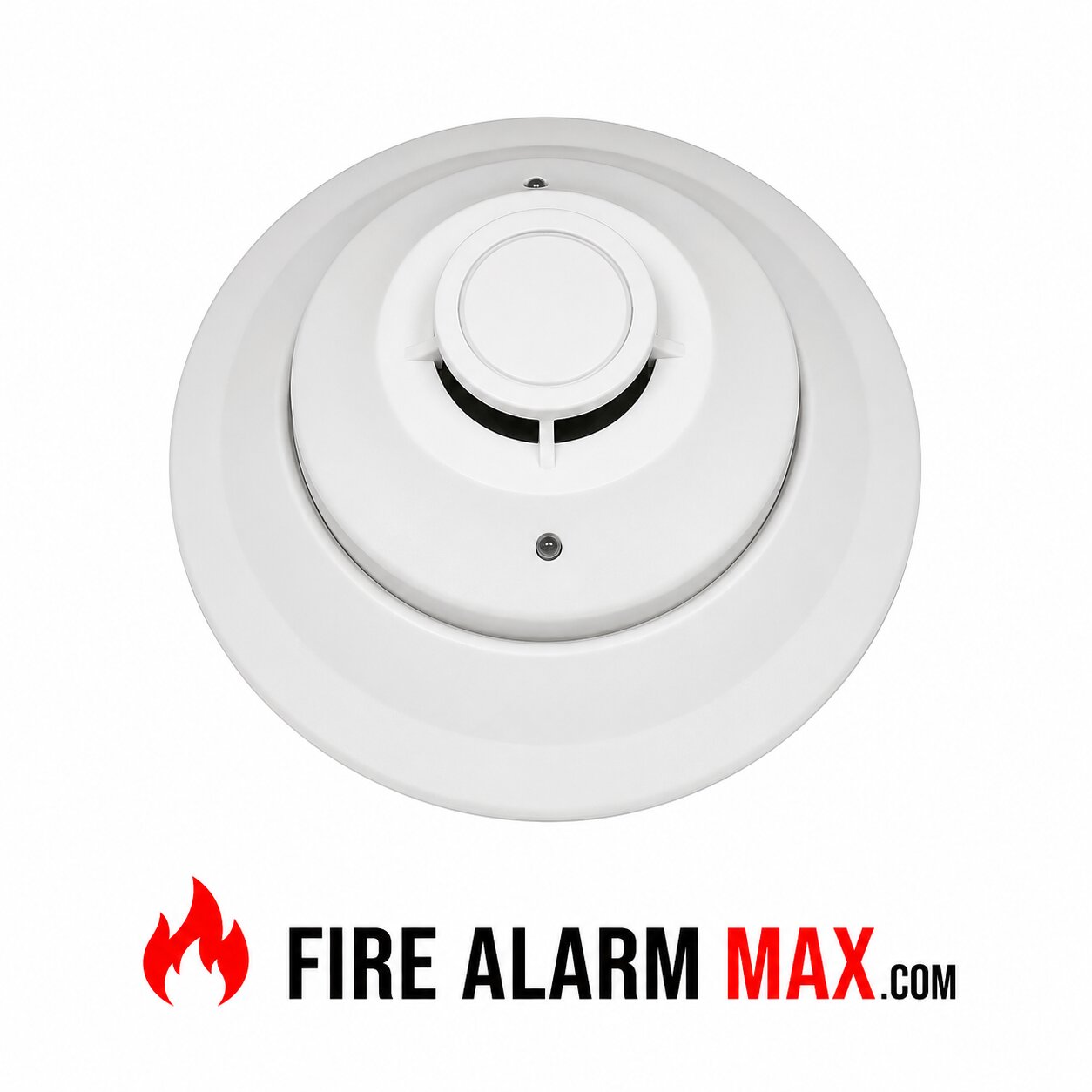

The Silent Knight SK-HEAT is a commercial thermal detector designed for compatible Honeywell Silent Knight fire alarm control panels. It uses a thermistor-based sensing circuit to provide reliable fixed-temperature detection and initiates an alarm when the surrounding temperature reaches 135°F (57°C).
The detector provides individual device identification, continuous panel supervision, rotary address selection, and visible status indication. Its plug-in construction simplifies installation, inspection, testing, and replacement. This product is intended exclusively for commercial fire alarm installations.
The SK-HEAT operates on a compatible Silent Knight signaling line circuit with an operating voltage range of 15 to 32 VDC. Rotary decimal switches allow technicians to assign an individual device address directly at the detector.
The fire alarm control panel continuously monitors detector communication and operating status. A compatible mounting base is required and may be sold separately.
The Silent Knight SK-HEAT installs on a compatible plug-in detector base. Field wiring terminates at the base, allowing the detector head to be removed for testing, inspection, or replacement without disturbing the installed wiring.
The detector is designed for ceiling or wall installation where permitted by applicable codes, approved system documentation, and project requirements.
Suitable for:
Compatible with selected:
Always verify control-panel protocol, detector-base compatibility, firmware requirements, and approved system documentation before installation.
Manufacturer: Honeywell Silent Knight
Model: SK-HEAT
Product Type: Commercial Thermal Detector
Detection Method: Fixed Temperature
Activation Temperature: 135°F (57°C)
Sensing Element: Thermistor Circuit
Operating Voltage: 15–32 VDC
Typical Standby Current: 200 µA at 24 VDC
Maximum Alarm Current: 2 mA at 24 VDC with LED Activated
Addressing: Rotary Decimal Switches
Address Range: 01–159
Status Indicators: Dual LEDs
Maximum Listed Spacing: 50 ft (15.2 m), subject to installation conditions
Operating Temperature: –4°F to 100°F (–20°C to 38°C)
Operating Humidity: 10%–93% RH, Non-Condensing
Housing Color: White
Mounting: Compatible Detector Base Required
Application: Indoor Commercial Fire Alarm Systems
Listings: UL 521 and FM approval; verify product labeling and project requirements.
The Silent Knight SK-HEAT is designed for commercial fire alarm systems requiring fixed-temperature detection in locations where normal environmental conditions may make smoke detectors unsuitable. Typical applications include mechanical rooms, warehouses, commercial kitchens, utility areas, manufacturing spaces, boiler rooms, storage facilities, and other commercial or industrial environments.
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 7 × 6 in |
