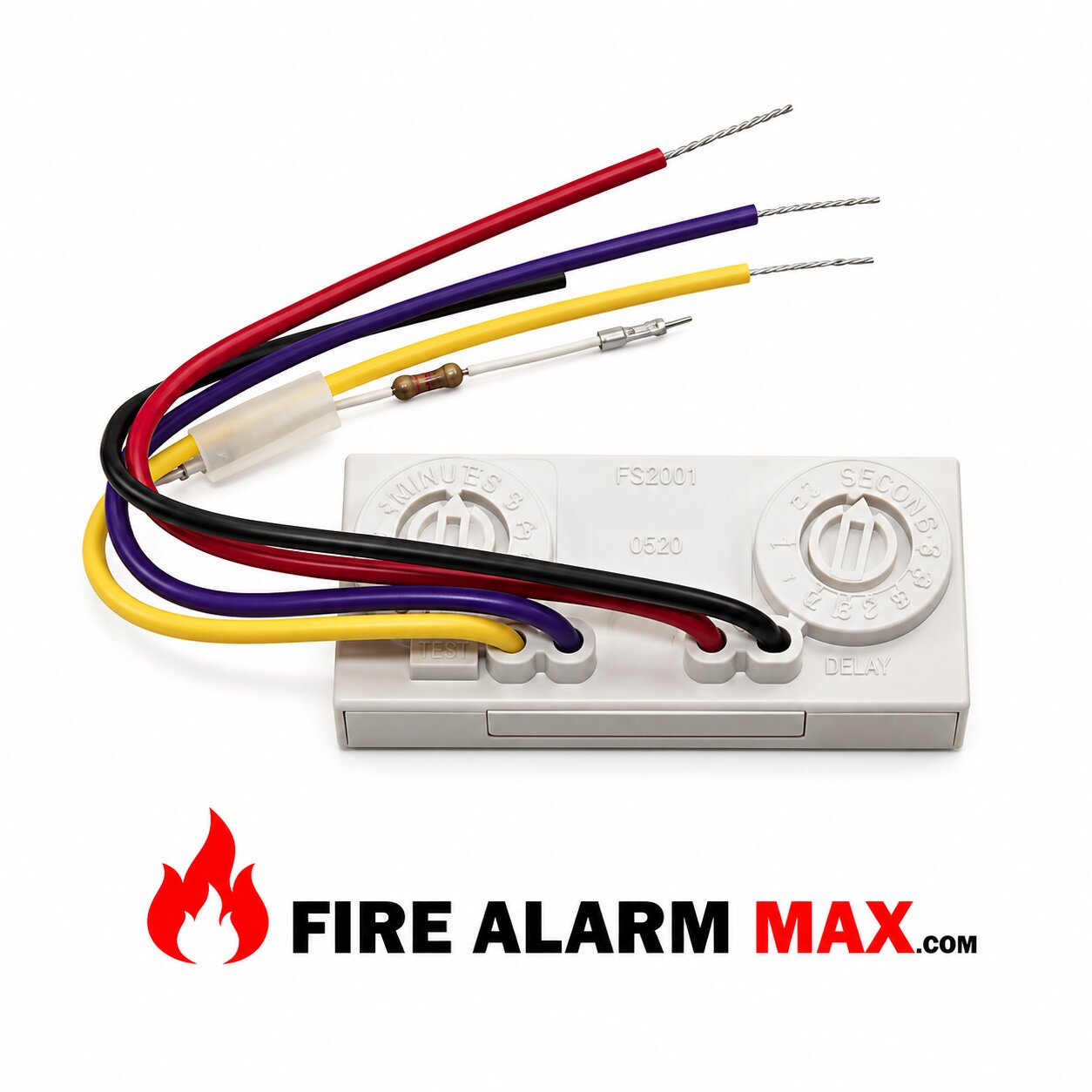

The Silent Knight SK-MINIMON i s an addressable mini monitor module for use with the Honeywell Silent Knight fire alarm control panels (FACPs). The SK-MINIMON acts as an interface to contact devices, like water flow switches, and pull stations. The SK-MINIMON supports Class B supervised wiring to the load device. Conventional 4-wire smoke detectors can b e monitored for alarm and trouble conditions.
The Silent Knight SK-MINIMON can b e mounted in a single gang junction box directly behind the monitored device. Its small size and light weight allow it to b e installed without rigid mounting requirements.
The Silent Knight SK-MINIMUM i s compatible with the fol lowing Honeywell Silent Knight fire alarm control panels:
6820: Addressable fire alarm control panel
6820EVS and 5820XL-EVS: Addressable fire alarm control panel with an emergency voice system
6808: Addressable fire alarm control panel
6700: Addressable fire alarm control panel
5808: Addressable fire alarm control panel
5700: Addressable fire alarm control panel
5820XL: Addressable fire alarm control panel
Features / Specifications
Single contact monitor
Silent Knight SK-MINIMON support for Class B (Style B) contact monitor wiring
The small and lightweight size allows for flexible mounting options
• Rotary address switches for fast installation
UL Listed
CSFM Listed
FM Approved
Dimensions: 2.75” W x 1.3″ H x 0.5″ D
Weight: 1.2 oz (37 g)
Operating Voltage: 15 – 32VDC
SLC loop resistance: 40W max
Operating Temperature: 32ºF – 120ºF (0ºC – 49ºC)
Humidity: 10% – 93% non-condensing
