Description

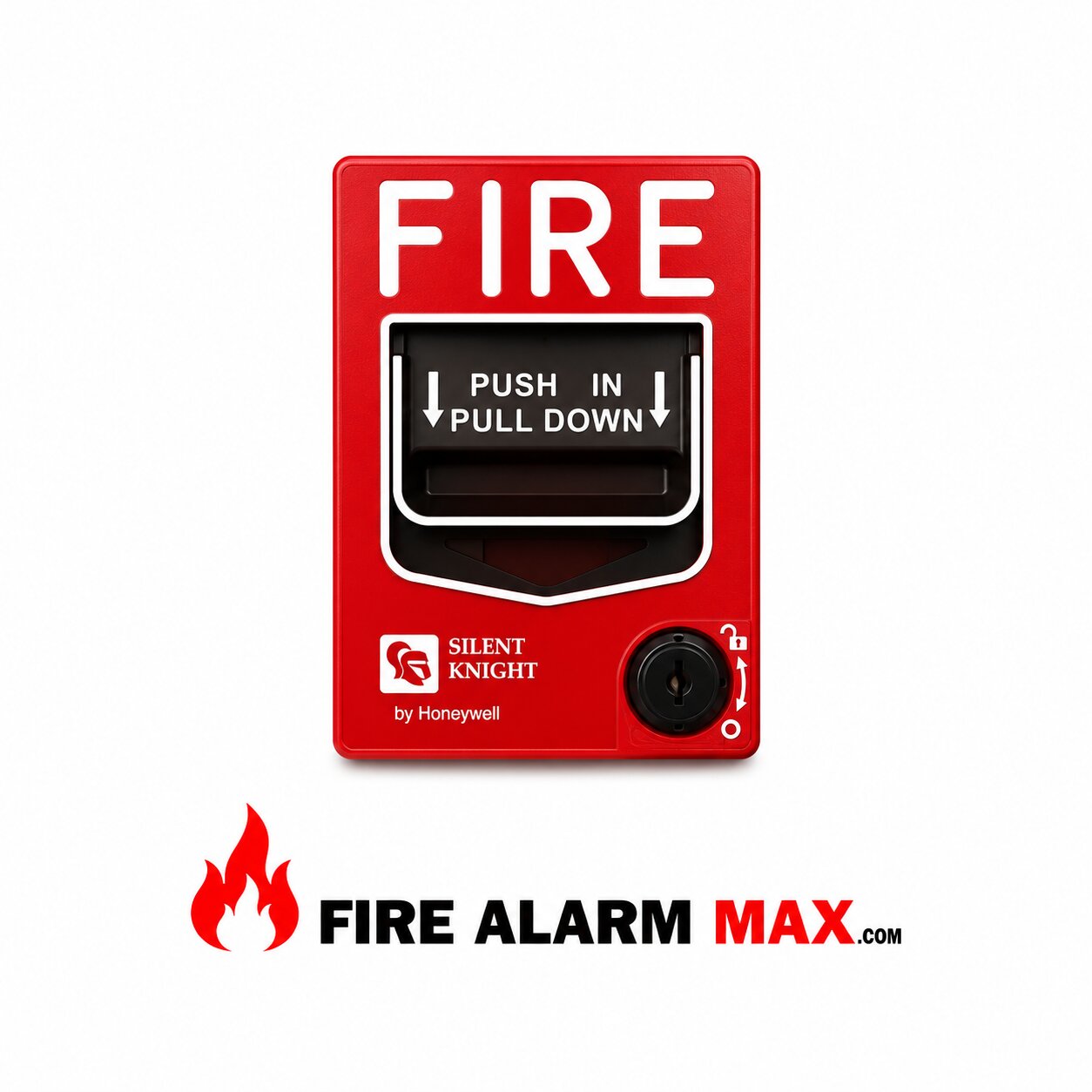

The Silent Knight SK-PULL-SA is a single-action pull station requiring only one motion to activate the station. The SK-PULL-DA is also a dual-action pull station requiring two motions to activate the station. The SK-PULL-SA, as well as SK-PULL-DA, are for use with the Honeywell Silent Knight Series fire control panel (FACP). Additionally, extremely easy to operate, the SK-PULL-DA and SK-PULL-SA provide a fast and practical means of manually initiating a fire alarm signal. Furthermore, the FACP recognizes each manual pull station by its specific address, saving precious seconds in determining the location of an alarm.

Installation

The SK-PULL-SA and SK-PULL-DA can be surface-mounted to an SB-I/O surface back box or semi-flush-mounted on a standard single-gang with a minimum depth of 2.13”(5.40 cm) or double-gang or 4” (10.61 cm) square electrical box. You can also use the optional (System Sensor® PN BG-TR) trim ring if the station is being semi-flush-mounted.

Features / Specifications

• The installer can open the station without causing an alarm condition
• Dual-color LED
• Key-operated test and reset the lock using the lock plate actuator
• Key matches compatible FACP locks
• Meets ADA requirements for a 5 lbs maximum pull force to active
• Shell, door, and handle molded from durable LEXAN®
• Reliable analog communications for trouble-free operation
• Braille text on station handle
• Rotary address switches for fast installation
• UL Listed
• CSFM Listed
• MEA Listed
