Description

In the first place, the Silent Knight SK-RELAY is an addressable relay module for use with Honeywell Silent Knight Series fire alarm control panels (FACPs). Also, the Silent Knight SK-RELAY allows a Silent Knight FACP to switch discrete contacts by code command. Additionally, the relay contains two isolated sets of Form C contacts, which operate as a DPDT switch. Furthermore, no supervision is provided for the notification appliance circuit.

In addition, the Silent Knight SK-RELAY contacts can be used for virtually any normally open or normally closed application. Besides, each SK-RELAY comes programmed with a unique signaling line circuit (SLC) loop address. When an event occurs that controls the SK-RELAY, the relay is triggered by the FACP.

Features / Specifications

• Two sets of Form C contacts
• Rotary address switches for fast installation
• Relay programming is completely flexible–can be mapped to zone conditions
• SEMS screws for easy wiring
• Polling LED visible through the cover plate
• Panel controlled status LED that flashes green in normal state and is solid red in alarm
• Contacts come rated for a variety of amps
• Operating Voltage: 15 – 32 VDC
• SLC Standby & Alarm Current: .255mA max @ 24VDC (one communication every 5 sec with LED enabled)
• Operating Temperature: 32ºF – 120ºF (0ºC – 49ºC)
• Humidity: 10% – 93% non-condensing

Download the Specification sheet in *.pdf format

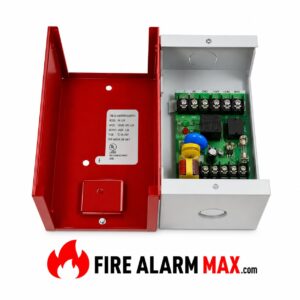

Similar Item
