Description

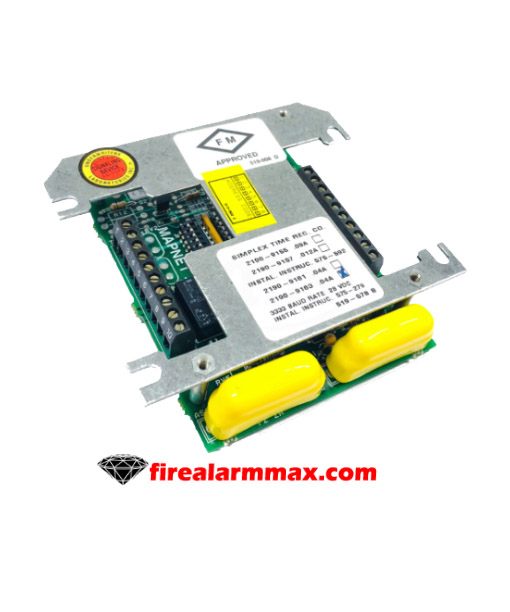

The Simplex 2190-9163 Signal ZAMs supervise and operate 24 VDC notification appliances, speakers, and telephone circuits. Also, output capacity is up to 2 A @ 24 VDC, or 50 W of 25 VRMS speakers, or up to three simultaneously activated firefighter phones. Besides, the Simplex 2190-9163 signal ZAM is available for either Style Y/Class B or Style Z/Class A operation for notification appliance circuits.

Control ZAMs provide addressable control functions such as elevator capture, HVAC control, pressurization fan control, and damper control. The control relay provides a DPDT contact. MAPNET II zone adapter modules (ZAMs) provide an addressable interface between conventional zone devices and the host fire alarm control panel.

Features / Specifications

•  DPDT Contacts
• Supervisory Current: 10 mA @ 24 VDC
• Alarm Current: 40 mA @ 24 VDC
• Temperature Range: 32° F to 120° F (0° C to 49° C) intended for indoor operation
• Humidity Range: Up to 85% RH at 86° F (30° C)
• Wire Connections: Screw terminals for in/out wiring, 18 to 12 AWG wire
• Style 4/Class B communications may be wired either “T” tapped or In/Out
• Communications: Supplied by MAPNET II, 24 to 40 VDC with data
