Description

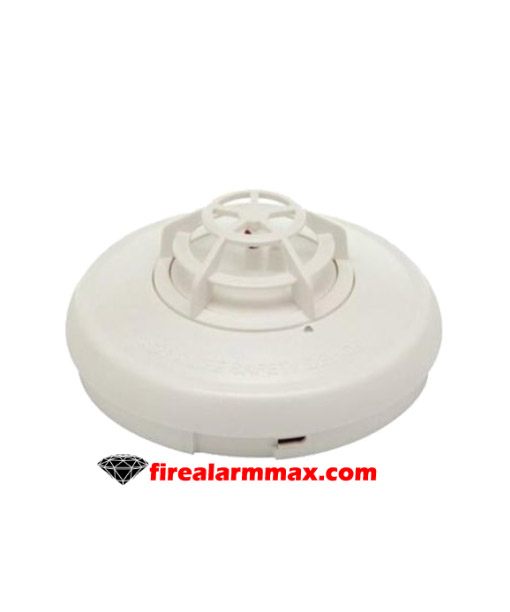

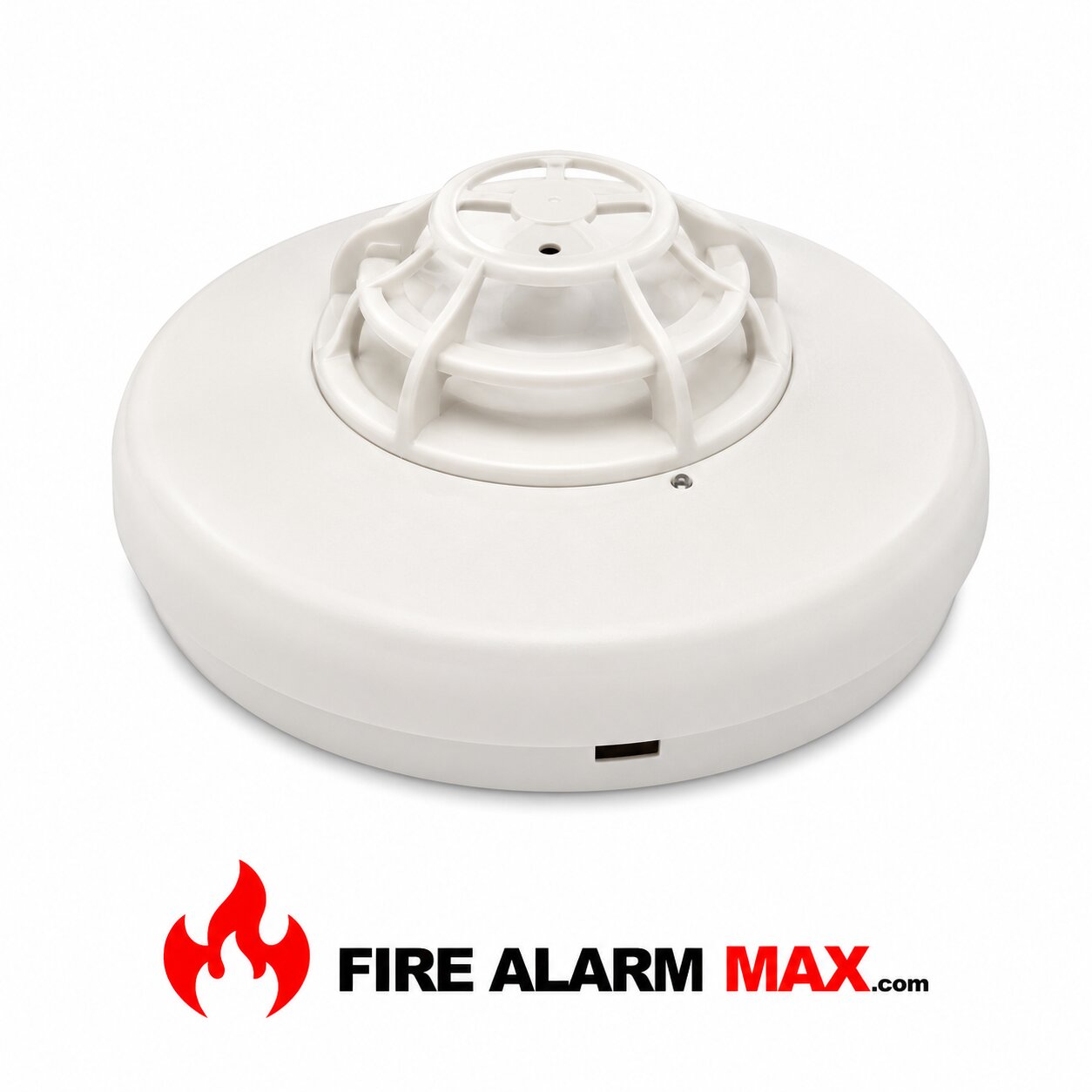

The Simplex 4098-9614 is an electronic heat detector that uses a fast response, thermistor-base design to provide temperature sensing that quickly, accurately, and consistently identifies when fix temperatures are exceed. Also, fix temperature guidelines of 200°F (93° C) are for normal temperatures that exceed 100° F (38° C) but are less than 150° F (66° C). Consequently, by combining accurate thermistors with proper physical placement, this patented rate-of-rise detection design achieves a high level of performance not normally available with mechanical detection.

Furthermore, the Simplex 4098-9614 heat detector is an easy test, self-restoring operation with repeatable accuracy. It has the operation for ceiling or wall mounting. In addition, it is a currently limit alarm that is compatible with two-wire initiating device circuits (IDCs). Additionally, heat detectors are used where property protection is desired and where life safety protection is not required or is performed by other equipment. Typical heat detector applications are satisfy by the use of these fixed temperature electronic detectors.

Features / Specifications

• Voltage: 15 to 32 VDC (filtered DC with 30% maximum ripple)
• Dual thermistor rate-of-rise operation
• Rate-of-Rise Operation: Not Applicable
• Response Time Index: Quick
• Humidity Range: 10% to 95% RH from 32° to 122° F (0° to 50° C), not intended for outdoor applications
• Temperature Operating Range: 32° to 150° F (0° to 66° C)
• Color: White
• Operation for ceiling or wall mounting
