Description

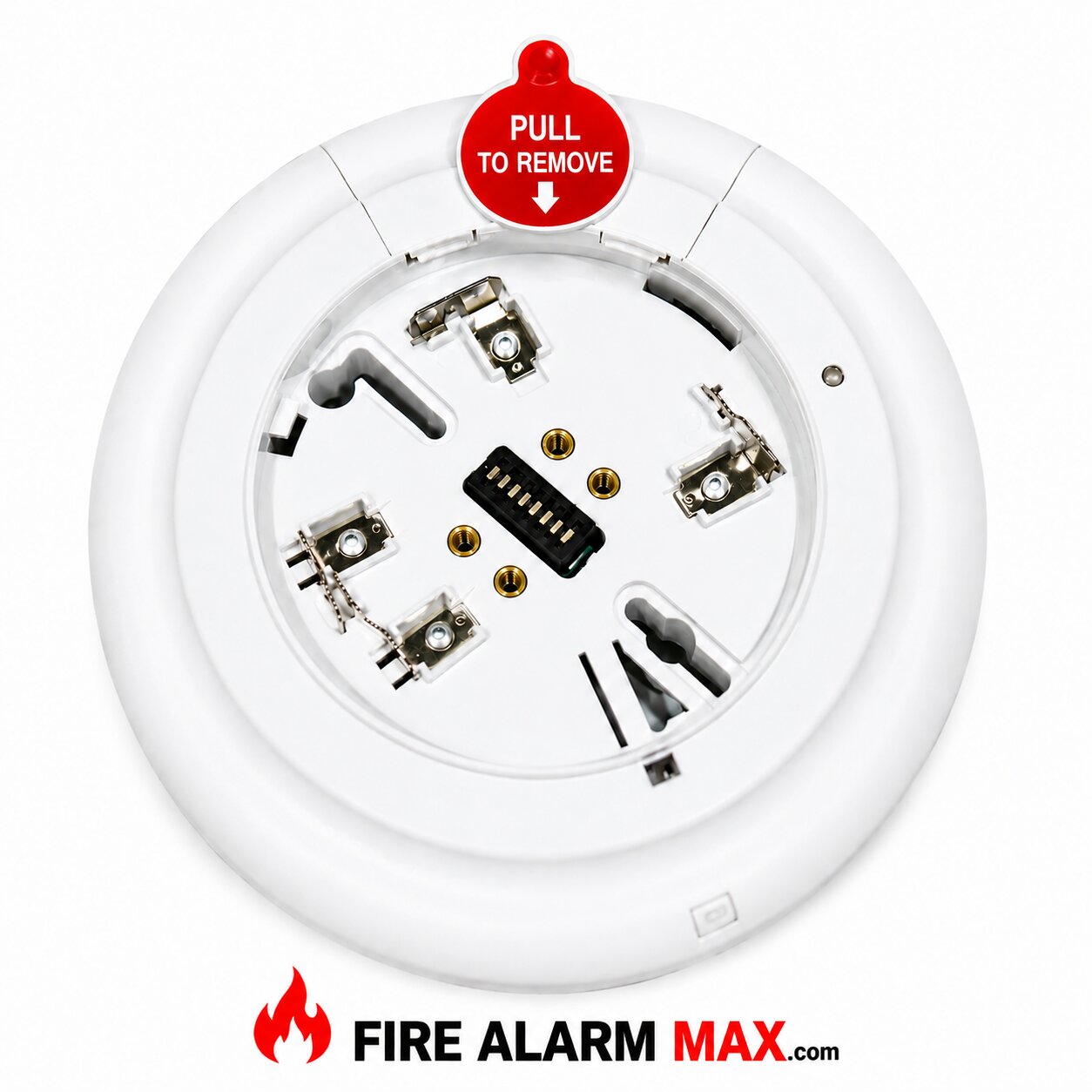

The Simplex 4098-9770 is an extended life carbon monoxide sensor base designed to provide continuous CO monitoring and enhanced fire detection in commercial buildings. The base incorporates a carbon monoxide sensing module while supporting compatible smoke and heat sensor heads to provide multi criteria life safety protection.

Designed as part of the Simplex TrueAlarm platform, the 4098-9770 features a replaceable carbon monoxide sensing cartridge with an extended service life, reducing maintenance costs while improving long term reliability. The base communicates through the IDNet channel and occupies only a single system address.

Product Functions

• Monitors carbon monoxide levels
• Enhances fire detection using CO sensing
• Supports smoke sensing when used with a compatible detector head
• Supports heat sensing when used with a compatible detector head
• Reports alarm conditions to the fire alarm control panel
• Continuously supervises sensor status
• Stores carbon monoxide sensing information
• Supports replaceable CO sensing cartridge
• Provides extended operational life

Electrical & System Information

The 4098-9770 receives both operating power and communications through the IDNet signaling channel and occupies a single address on the fire alarm system. Carbon monoxide concentration information is transmitted digitally to the fire alarm control panel for processing, monitoring, and event reporting.

The replaceable CO sensing cartridge is designed for an extended service life, allowing scheduled maintenance without replacing the entire sensor base. The module supports carbon monoxide monitoring, enhanced fire detection algorithms, and ventilation control applications when properly configured.

Features

• Carbon monoxide sensor base
• Extended life sensing cartridge
• Replaceable CO cartridge
• TrueAlarm technology
• IDNet communication
• Single address operation
• Digital CO monitoring
• Enhanced fire detection
• Plug in detector base
• Commercial life safety application
• Long service life
• Low maintenance design

Mounting & Design

The 4098-9770 installs using a standard TrueAlarm detector base configuration and accepts compatible detector heads that twist into place for fast installation and servicing. The replaceable carbon monoxide cartridge allows maintenance without replacing the complete base assembly.

Its compact design simplifies installation while supporting long term maintenance planning through scheduled cartridge replacement.

Protection & Applications

Suitable for:

• Commercial Fire Alarm Systems
• Carbon Monoxide Detection
• Office Buildings
• Hospitals
• Healthcare Facilities
• Schools and Universities
• Hotels
• Apartment Buildings
• Assisted Living Facilities
• Dormitories
• Government Buildings
• Mixed Use Buildings

Technical Specifications

Manufacturer: Simplex

Parent Company: Johnson Controls

Model: 4098-9770

Product Type: Carbon Monoxide Sensor Base

Technology: TrueAlarm

Detection: Carbon Monoxide Monitoring

Communication: IDNet

Address Capacity: One Address

CO Cartridge: Replaceable Extended Life Cartridge

Power Source: IDNet Communication Channel

Installation: Plug In Detector Base

Application: Indoor Commercial Fire Alarm Systems

Operation: Multi Point Device

Listings: UL Listed, ULC Listed, FM Approved, and CSFM Listed when installed in accordance with manufacturer instructions and applicable codes. Verify product labeling and project requirements before installation.

Applications

The Simplex 4098-9770 is designed for commercial fire alarm systems requiring carbon monoxide monitoring with extended service life and enhanced fire detection capabilities. Typical applications include hotels, apartment buildings, hospitals, healthcare facilities, schools, dormitories, office buildings, government facilities, assisted living centers, and other occupancies where carbon monoxide detection is required as part of a comprehensive life safety system.
