Description

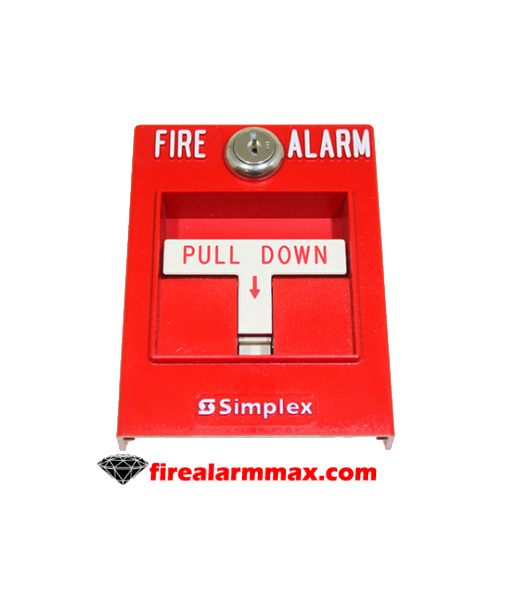

The Simplex 4099-9001 addressable manual station combines the familiar Simplex manual station housing with a compact communication module that is easily installed to satisfy demanding applications. Also, its integral individual addressable module (IAM) constantly monitors the status and communicates changes to the connected control panel via IDNet or MAPNET II communications wiring

In fact, the Activation of the Simplex 4099-9001 single action manual station requires a firm downward pull to activate the alarm switch. Besides, completing the action breaks an internal plastic break-rod (visible below the pull lever, use is optional). Besides, The use of a break-rod can be a deterrent to vandalism without interfering with the minimum pull requirements needed for easy activation. The pull lever latches into the alarm position and remains extended out of the housing to provide a visible indication.

Features / Specifications

• KEY NOT INCLUDED
• Humidity Range:  Up to 93% RH at 100° F (38° F)
• Temperature Range: 32° to 120° F (0° to 49° C) intended for indoor operation
• Housing Dimensions: 5” H x 3-3/4” W x 1” D (127 mm x 95 mm x 25 mm)
• Wire Connections: Screw terminal for in/out wiring, for 18 to 14 AWG wire
• Material: Housing and pull lever are Lexan polycarbonate or equal
• Pull Lever Color: White with red raised lettering
• Power and Communications: IDNet or MAPNET II communications, 1 address per station
