Description

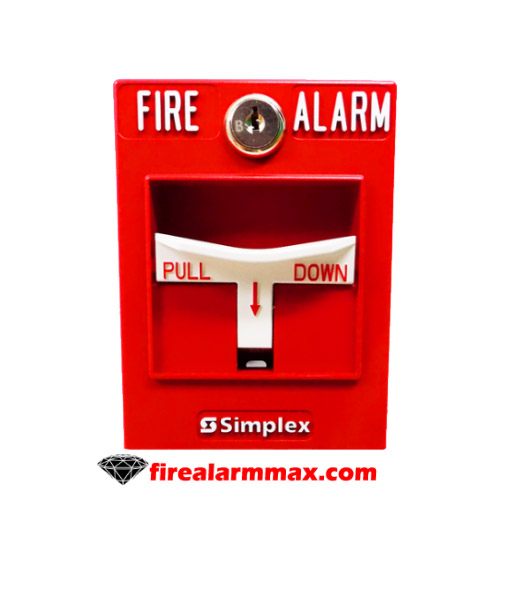

The Simplex 4099-9020 addressable manual station combines the familiar Simplex manual station housing with a compact communication module that is easily installed to satisfy demanding applications. Also, its integral individual addressable module (IAM) constantly monitors the status and communicates changes to the connected control panel via IDNet or MAPNET II communications wiring.

For applications such as California Building Code, Title 24, which requires “Controls and operating mechanisms shall be operable with one hand and shall not require tight grasping, pinching or twisting of the wrist” the model Simplex 4099-9020 station provides a more easily operated pull lever compared to standard stations. Besides, retrofit of existing stations is available using the 4099-9805 Retrofit kit.

Features / Specifications

• Power as well as data supplied via IDNet or MAPNET II addressable communications using a single wire pair
• The operation that complies with ADA requirements
• Available with a more easily operated pull lever for applications where anticipated users may find the standard station lever difficult to activate
• Pull lever that protrudes when alarmed
• Electronics module enclosure minimizes dust infiltration
• Allows mounting in standard electrical boxes
• Screw terminals for wiring connections
• Temperature Range: 32° to 120° F (0° to 49° C) intended for indoor operation
• Humidity Range: Up to 93% RH at 100° F (38° F)
• Housing Dimensions: 5” H x 3-3/4” W x 1” D (127 mm x 95 mm x 25 mm)
