Description

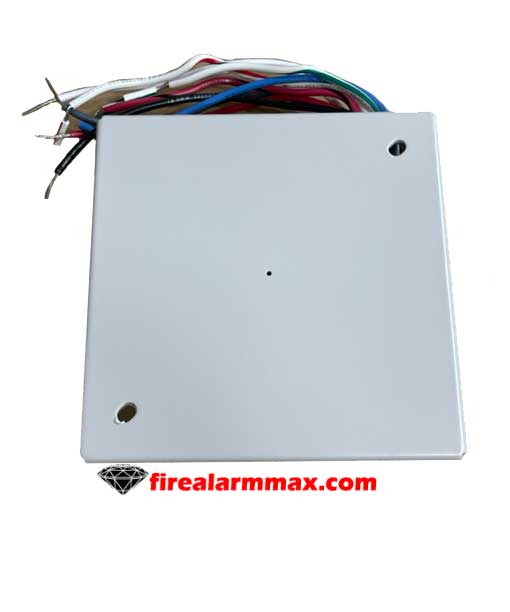

Simplex 4190-9050  provide an accurate, multi-featured interface for connecting analog sensors to compatible Simplex addressable fire detection panels. The panel monitors the sensor and annunciates whenever a selected threshold level or trouble condition is observe it. Typical applications include: air quality for demand control ventilation, air and liquid temperature, also humidity, and air velocity. Remote AMZ package with cover; mounts in 4” (102 mm) square box with extension. Color Coded Wire Leads, 18 AWG (0.82 mm2).

Simplex 4190-9050 has the purpose to communicate the status of a compatible 4-20 mA sensor to the Simplex fire detection panel for proper fire alarm system response including annunciation and also event logging.

AMZs and the connected panel are to be located outside of the monitored area and also are install it in accordance with applicable local code requirements. The AMZ accommodates 2-wire, 3-wire, or 4-wire connections to a compatible sensor. Up to 100 custom AMZ point types can be programmed into a single fire alarm detection panel.  So, for Network applications, the Network
total custom AMZ point type limit is also 100 maximum

AMZ module features:

• Automatic and also manual AMZ self-test
• On-board manual test switch provides WALKTEST system test feature
• Resettable sensor power output
• Supervised sensor trouble input
• Local LED alarm annunciator output
• Mounts in 4” (102 mm) square electrical box with extension

  Download the Specification sheet in *.pdf format
