Description

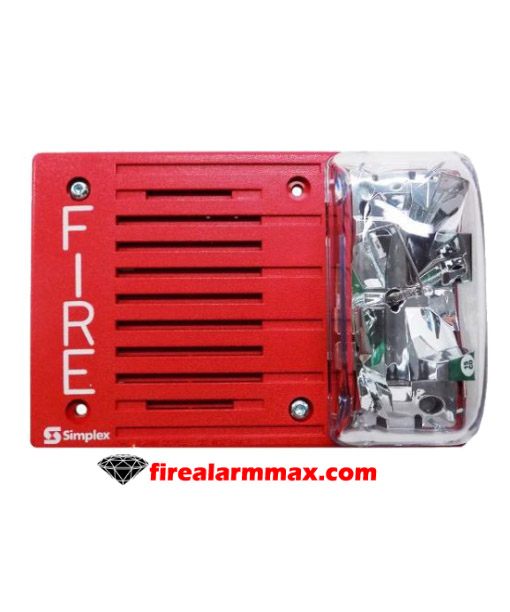

The Simplex 4903-9146 is a Red Fire Alarm Horn Strobe. This Simplex 4903-9146 model is an audible/visible notification appliance with speakers and polycarbonate lens. Consequently, The lens assembly fits securely into its housing, providing a high integrity
notification appliance that is impact and vandal resistant and suitable for a variety of applications. Important to mention that it is compatible with the ADA requirements. Furthermore, it has 24 VDC powered xenon flashtube and an exclusive multisurface reflector design which provides symmetrical light output in key axis directions allowing horizontal mounting. Additionally, its wiring terminals are separate from audible notification appliances. Also, its regulated circuit design ensures consistent output.

Features / Specifications

• Speaker Voltage: 25 VRMS
• Strobe Output (Candela): 15 cd
• Flash Rate: 1 Hz
• Mounting Style: Horizontal Wall Mount
• Housing Color: Red
• Dimensions (with lens): 4 3/4″ x 6 7/8″ x 2 5/8″ D (121 mm x 175 mm x 67 mm)
• Speaker Depth into Box: 2 7/16” (62 mm)
• Connections: Terminals for in/out wiring #18 to #12 AWG
• Operating Temperature: 32° F to 120° F (0° C to 49° C)
• Humidity: 10-95% Non-condensing at 86° F (30° C)
• Voltage: 18 to 32 VDC
• Nominal Average Current at 24 VDC: 95 mA
• Compatible with ADA requirements
