Description

Simplex 4906-9101

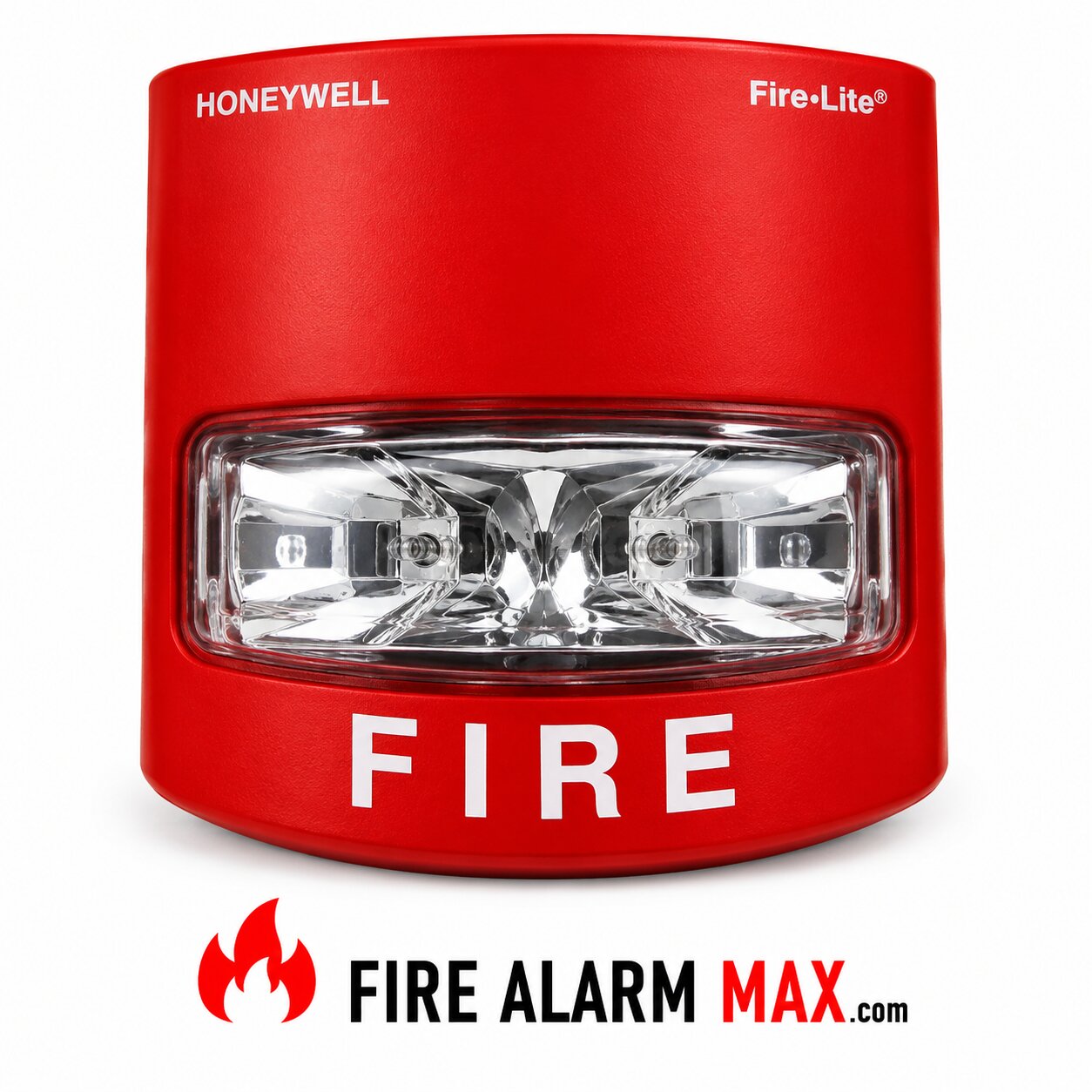

Provides convenient installation to standard electrical boxes. The enclosure designs a re impact and vandal-resistant. And provide a convenient strobe intensity selection.  Simplex wall mounts strobe housings a re a one-piece assembly (including lens). That mounts to a single or double gang, or 4″ square standard electrical box.

A selection plug at the back of the housing determines the desired strobe intensity. An attached flag with black letters on a highly visible yellow background. Allows the selected intensity to b e s een at the side of the strobe lens.

Multiple Strobes: Wh en multiple strobes and their reflections can b e s een from one location. Synchronized flashes reduce the probability of photo-sensitive reactions. And the annoyance and possible distraction of random flashing. These multi-candela strobes come synchronized over a two-wire circuit wh en connected to compatible NACs. To compatible Synchronized Flash Modules, or to SmartSync Control Modules.

Features / Specifications

Intensity i s selectable as 15, 30, 75, or 110 candela with a visible selection jumper secured behind strobe housing

Operation i s compatible with ADA requirements

Polarized input allows connection to compatible reverse polarity, supervised notification appliance circuit (NAC)

Regulated circuit design ensures consistent flash output tog ether with providing controlled inrush current

Rugged, high-impact, flame-retardant thermoplastic housings a re available in red or white with a clear lens

Simplex fire alarm control panels with NACs selected to provide strobe synchronization or SmartSync two-wire control

Wall mount strobes easily mount to the single gang, double gang, or 4-inch square outlet box

Wiring terminals a re accessible from the front of the housing providing easy access for installation, inspection, and testing

Wall-mount strobe adapters a re available to cover surface-mounted electrical boxes and to adapt to 2975-9145 boxes
