Description

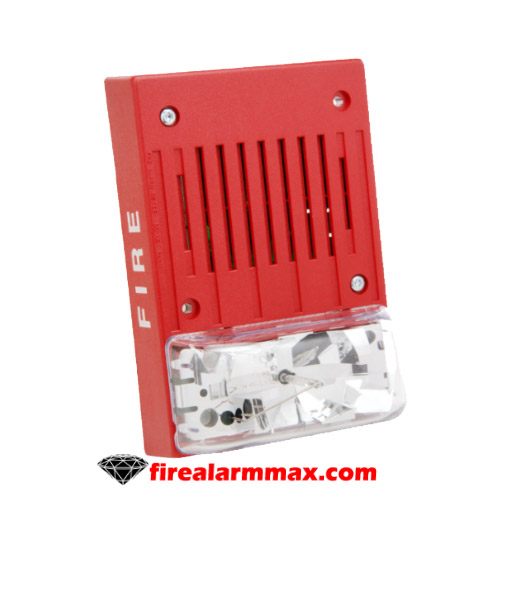

The Simplex 4906-9128 with horn and synchronized strobe provide convenient installation to standard electrical boxes. The enclosure designs are both impact and vandal resistant and provide a convenient strobe intensity selection. Since each Simplex 4906-9128 model can be select for strobe intensity output, on-site model inventory is minimize and changes encounter during construction can be easily accommodate.

Also, wall mount A/V housings are a one-piece assembly (including lens) that mounts to a single or double gang, or 4” square standard electrical box. Besides, the cover can be quickly remove and covers are available separately for color conversion. Ceiling mounts A/Vs install using standard 4” electrical boxes. Color choice is determine by model number.

When multiple strobes and their reflections can be seen from one location, synchronized flashes reduce the probability of photo-sensitive reactions as well as the annoyance and possible distraction of random flashing. The multi-candela strobes of these A/Vs are synchronize by the controlling SmartSync operation NAC.

Features / Specifications

• Rugged, high impact, flame retardant thermoplastic housings
• Horns that are control separately from strobes on the same two-wire circuit
• Wiring terminals are accessible from the front of the housing providing easy access for installation, inspection, and testing
• Strobe appliances on the same circuit operating at a synchronized 1 Hz flash rate
• “On-until-silenced” and “on-until-reset” operation on the same two-wire pair
