Description

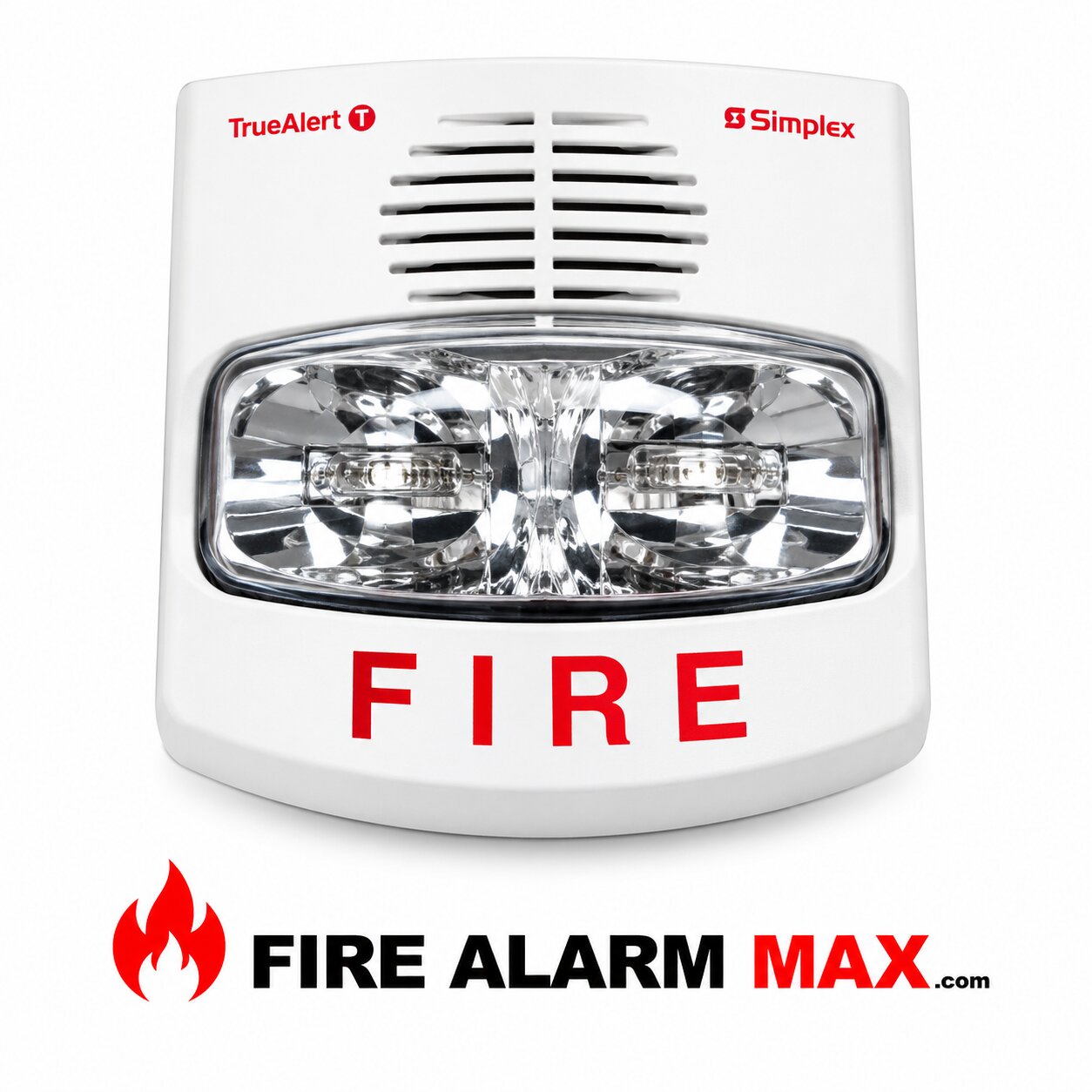

Simplex 4906-9129 horn and synchronized strobe provide convenient installation to standard electrical boxes. The enclosure designs are both impact and vandal resistant and provide a convenient strobe intensity selection. Since each Simplex 4906-9129 can be select for strobe intensity output, on-site model inventory is minimize and changes encounter during construction can be easily accommodate.

In general, wall mount A/V housings are a one-piece assembly (including lens) that mounts to a single or double gang, or 4” square standard electrical box. Furthermore, the cover can be quickly remove (a tool is require) and covers are available separately for color conversion. Also, ceiling mounts A/Vs install using standard 4” electrical boxes. Color choice is determine by model number.

During installation, a selection plug at the back of the housing determines the desired strobe intensity. In addition, an attached flag with black letters on a highly visible yellow background allows the selected intensity to be see at the side of the strobe lens.

When multiple strobes and their reflections can be seen from one location, synchronized flashes reduce the probability of photo-sensitive reactions as well as the annoyance and possible distraction of random flashing. The multi-candela strobes of these A/Vs are synchronize by the controlling SmartSync operation NAC.

Features / Specifications

• Wiring terminals are accessible from the front of the housing providing easy access for installation, inspection, and testing
• Covers are available separately to convert housing color
• Available UL listed sound damper for locations requiring attenuation of 5 to 6 dBA
• Horns that are control separately from strobes on the same two-wire circuit
• Strobe appliances on the same circuit operating at a synchronized 1 Hz flash rate
