Description

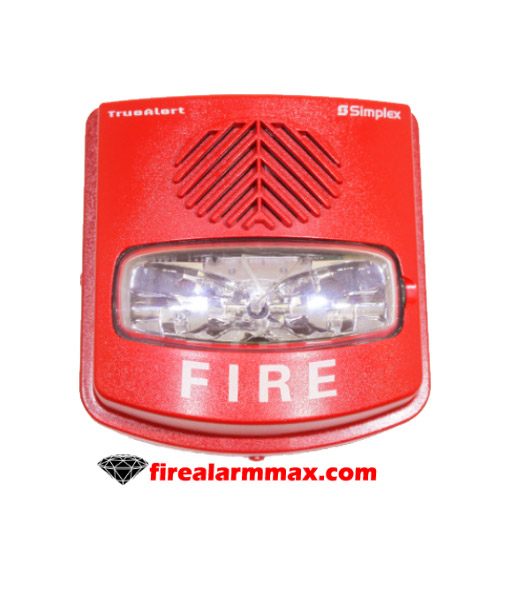

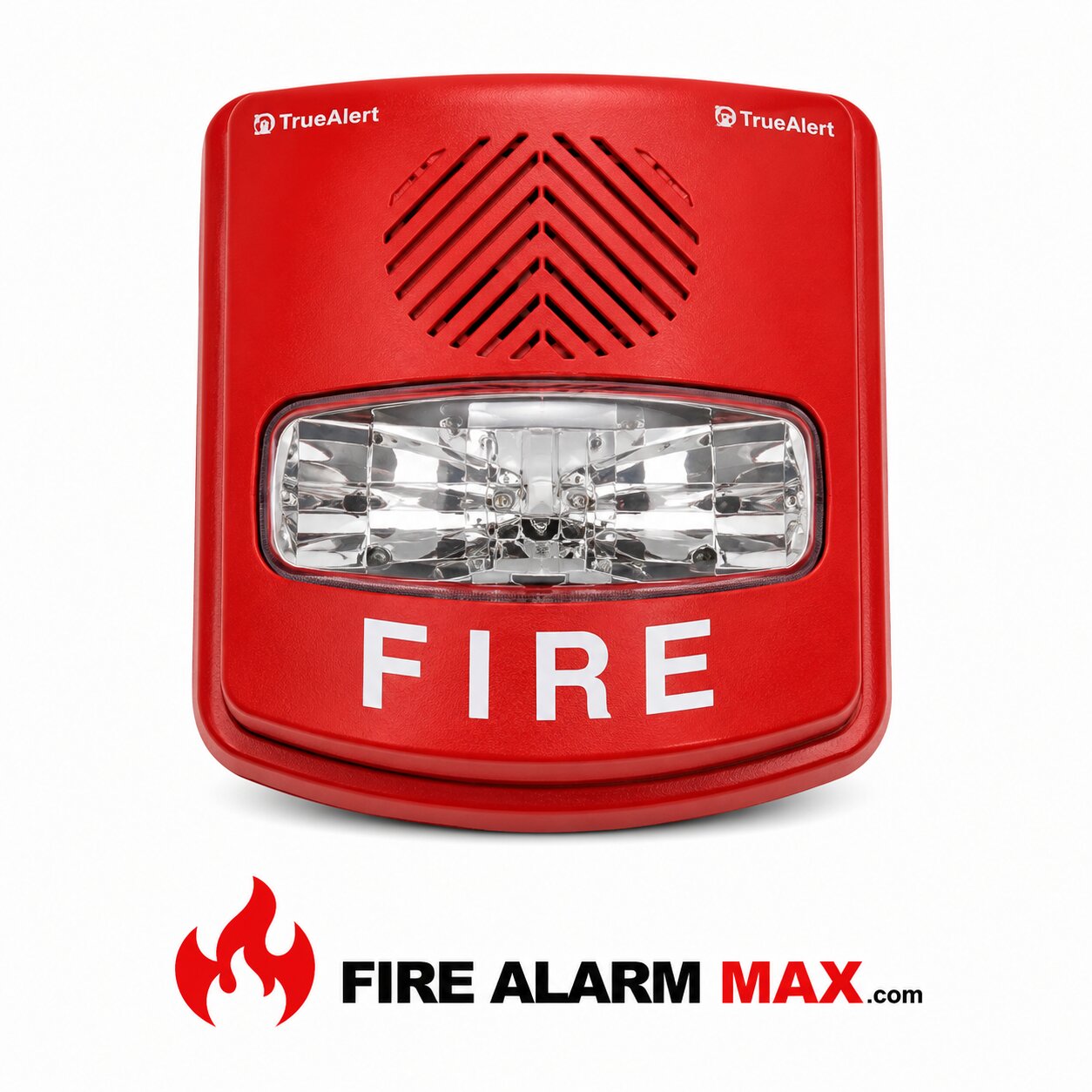

The Simplex 4906-9143 weatherproof wall red horn strobe provides VO and A/V SmartSync operation for indoor and outdoor, extended temperature, as well as extended humidity applications. Also, the enclosures are impact and vandal resistant and provide a convenient strobe intensity selection. Because each Simplex 4906-9143 can be selected for intensity output, on-site model inventory is minimized and changes encountered during construction are easily accommodated.

During installation, use the selection plug at the back of the housing to determine the strobe intensity. Use the attached flag with black letters on a yellow background to see the selected intensity at the side of the strobe lens. SmartSync operation mode means that a two-wire circuit can activate both the horn and strobe on the same NAC, then the horn can be silenced while the strobe remains flashing.

Features / Specifications

• NEMA 3R rated enclosure with ratings for indoor or outdoor applications
• Rugged, high-impact, flame retardant thermoplastic housings are available in red or white, with a clear lens.
• Red housings are for indoor or outdoor applications as well as provide UV light stable color.
• White housings are for indoor applications with limited UV light exposure.
• Mounting is to matching weatherproof boxes (required), ordered separately.
• Regulated circuit design ensures consistent flash output and provides a controlled inrush current.
• Temperature range: 32° F to 122° F (0° to 50° C)
• Flash rate: 1 Hz; up to 24 synchronized strobes maximum for each NAC
• Humidity range: 10% to 93%, at 100° F (38° C)
