Description

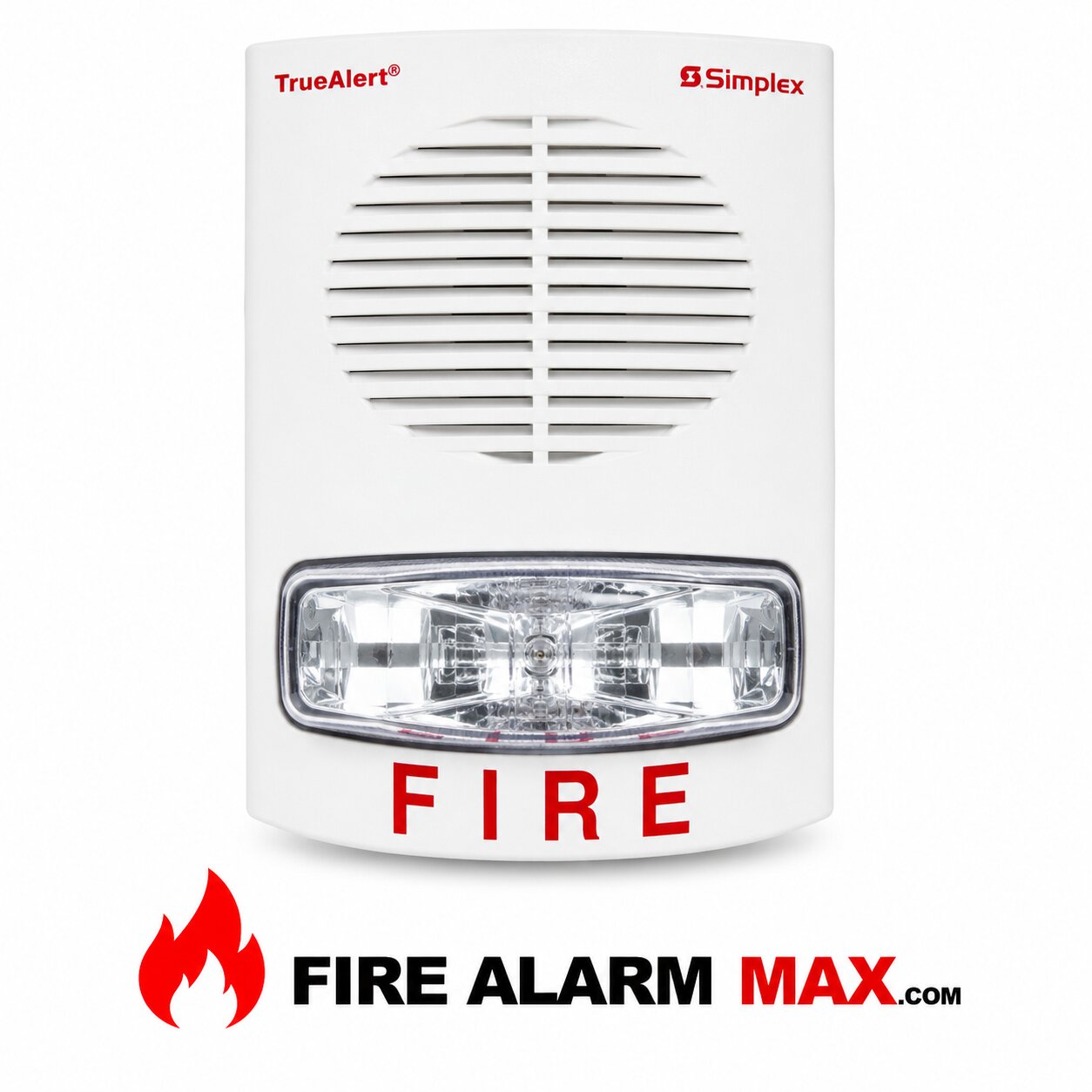

Simplex 4906-9153 with speaker and synchronized strobe provide convenient installation to standard electrical boxes with extensions. The enclosure designs are both impact and vandal resistant and provide a convenient strobe intensity selection. You can select each Simplex 4906-9153 for strobe intensity output. This minimizes on-site model inventory and easily accommodates changes encountered during construction.

Also, wall mount S/V housings are a one-piece assembly, including lens, that mounts to a 4 in. square electrical box with extension, see Wall mount installation reference. Besides, you can quickly remove the cover with a tool and covers are available separately for color conversion.

During installation, a selection plug at the back of the housing determines the desired strobe intensity. An attached flag with black letters on a highly visible yellow background allows the selected intensity to be see at the side of the strobe lens.

When multiple strobes and their reflections can be seen from one location, synchronized flashes reduce the probability of photo-sensitive reactions as well as the annoyance and possible distraction of random flashing. The multi-candela strobes of these S/Vs are activated by NACs that provide the Simplex synchronization format.

Features / Specifications

• Rugged, high impact, flame retardant thermoplastic housings
• Operation is compatible with ADA requirements
• Housings are available in red or white with a clear lens with contrasting white or red FIRE lettering
• 24 VDC xenon strobe; intensity is selectable as 15, 30, 75, or 110 candela with visible selection jumper secured behind strobe housing
• Strobes are activate from NACs select to provide Simplex strobe synchronization signals or from separate strobe Synchronization Modules that are available for Class B or Class A operation
• Regulated circuit design ensures consistent flash output and provides controlled inrush current
