Description

Simplex 49SVC-CRFIRE-O

Ceiling mount addressable speaker visible (S/V) notification appliances
Use the Simplex fire alarm control unit to individually power, address, and control ceiling mount addressable notification appliances. A separate compatible Simplex FACU audio NAC supplies audio.

You can T-tap audio and IDNAC wiring for Class B wiring, which reduces wiring costs and wiring distances.
Install ceiling mount addressable S/V notification appliances on a standard 4 in. (101.6 mm) square 2 1/8 in. (53.97 mm) deep electrical box, provided by others, for flush installations. Install on a surface or weatherproof backbox, see Table 8 for surface or weatherproof (WP)
installations.
Appliances – available in 400 Hz to 4000 Hz and 200 Hz to 10000 Hz high-fidelity models. Select the appliance and cover separately to simplify the ordering and installation process. Model numbers ending in –BA – assembled in the USA.

IDNAC Signalling Line Circuit (SLC)
• Advanced addressable notification controlled by IDNAC SLCs. Provides regulated 29 VDC for low current operation.
• The wiring supervision i s electronically monitored and allows IDNAC

SLC wiring – T-tapped for Class B wiring. Provides flexibility in reducing wiring sizes and or distance. And reduces costs for wiring installation
• The strobe intensity – selected within programming from the FACU Audio (speaker)

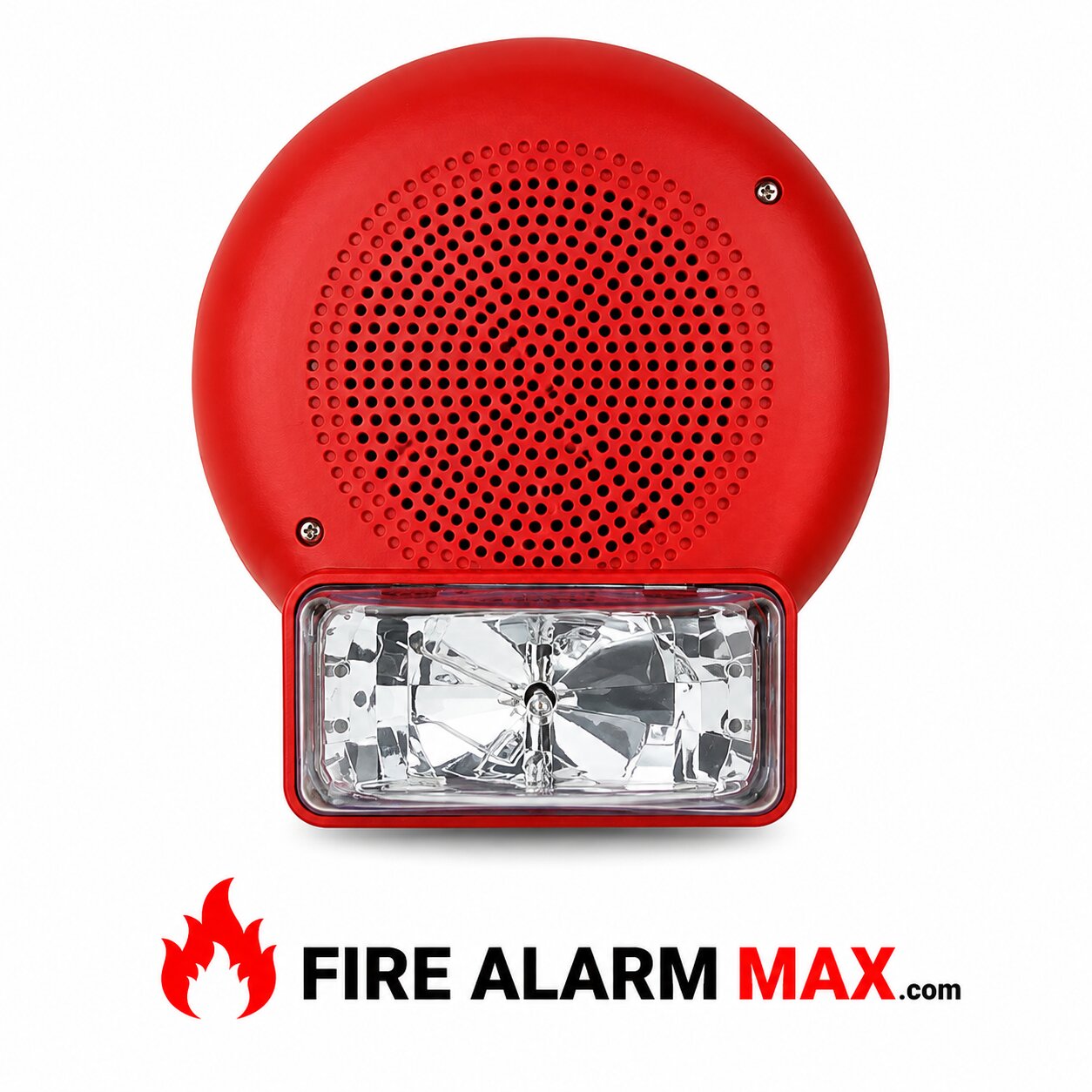

• The wiring supervision – electronically monitored. Allows audio (speaker) wiring – T-tapped for Class B wiring. Provides flexibility in reducing wiring sizes and or distance. And reduces costs for wiring installation Simplex 49SVC-CRFIRE-O Red Cover w/ Fire Marking
