Description

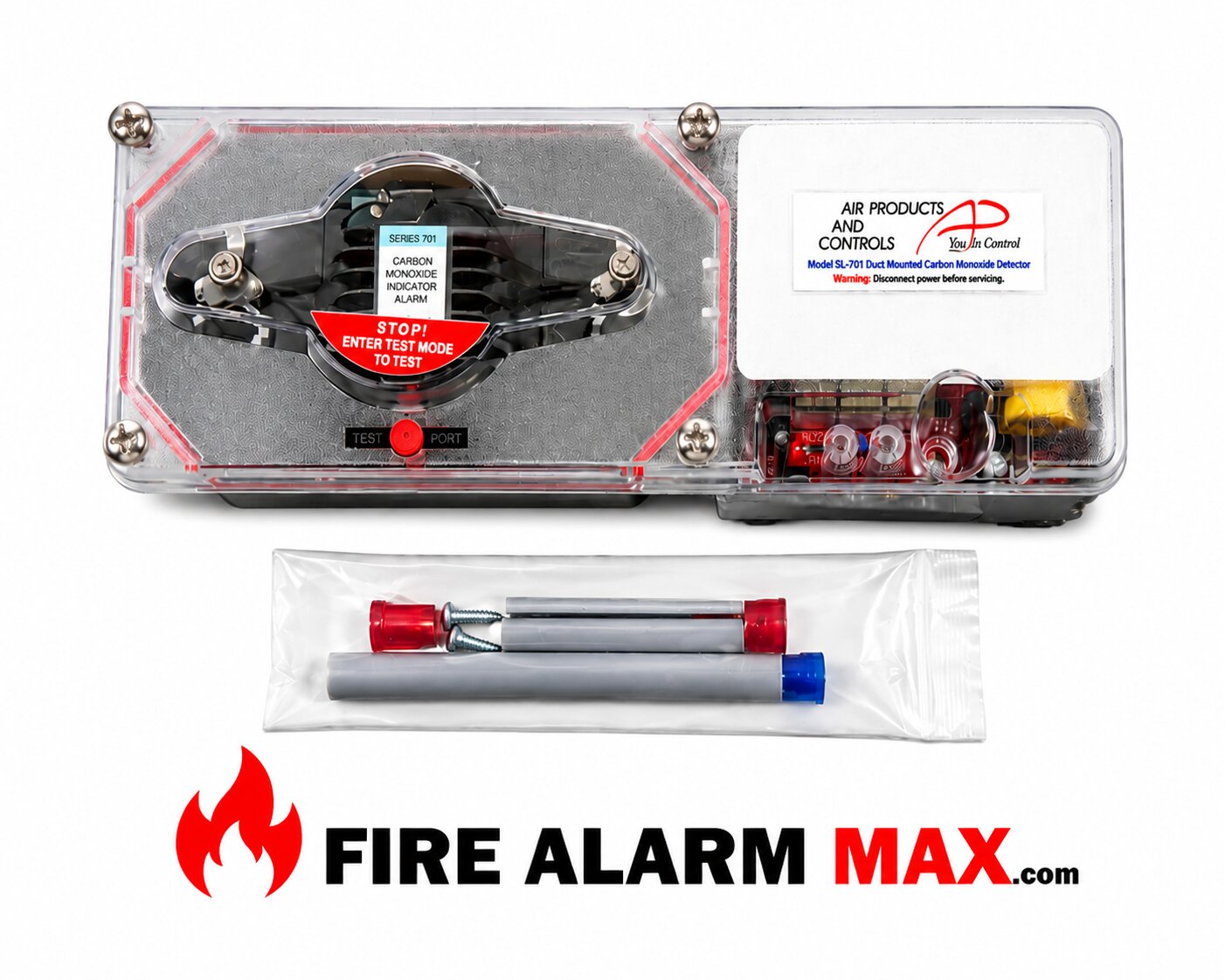

The Space Age SSU-SL-701 is a duct-mounted carbon monoxide detector designed to monitor carbon monoxide levels within HVAC duct systems. The Space Age SSU-SL-701 samples air moving through supply and return ducts and provides early detection of dangerous carbon monoxide concentrations before contaminated air can be distributed throughout a building. Therefore, it helps improve occupant safety in commercial, industrial, institutional, and residential applications.

Space Age SSU-SL-701 Function

The SSU-SL-701 continuously monitors air traveling through HVAC ductwork using a UL-recognized electrochemical carbon monoxide sensor. As a result, the detector can identify hazardous CO levels and initiate HVAC shutdown functions to prevent contaminated air from circulating into occupied spaces.

Advanced Electrochemical Carbon Monoxide Detection

The Space Age SSU-SL-701 utilizes a highly accurate electrochemical sensing element designed to detect multiple levels of carbon monoxide concentration. Consequently, the detector responds to dangerous CO conditions according to nationally recognized OSHA, UL 2034, and UL 2075 standards. Furthermore, the sensor provides dependable long-term monitoring with a typical service life of approximately six years under normal environmental conditions.

HVAC System Protection

The SSU-SL-701 is specifically engineered for HVAC applications. Therefore, it can monitor air handling unit supply ducts, return ducts, or both. When hazardous carbon monoxide levels are detected, HVAC equipment can be shut down automatically to help prevent the spread of toxic gases throughout the facility. Moreover, this proactive approach helps protect building occupants before carbon monoxide concentrations reach occupied areas.

Self-Testing and Diagnostic Features

The detector performs an automatic self-test every 24 hours to verify operational readiness. As a result, system reliability is enhanced and maintenance personnel can have greater confidence in detector performance. Additionally, the unit stores historical reporting data that can be retrieved to assist with troubleshooting and identifying contamination sources.

Flexible Duct Installation

The SSU-SL-701 utilizes patented front-loading or rear-loading sampling and exhaust tubes that simplify installation and servicing. Therefore, the detector can be installed in a wide range of HVAC applications. Additionally, the detector is designed to operate in duct widths ranging from 6 inches to 10 feet and air velocities between 100 and 4,000 feet per minute.

Remote Monitoring Capability

The Space Age SSU-SL-701 can be used with the optional MSR-50/CO remote accessory, providing visual and audible indication of detector status in a remote location. Consequently, facility personnel can receive alarm and trouble notifications without direct access to the HVAC equipment room.

Technical Specifications

• Model: SSU-SL-701
• Type: Duct-Mounted Carbon Monoxide Detector
• Detection Technology: Electrochemical Sensor
• Application: HVAC Supply and Return Duct Monitoring
• Sensor Life Expectancy: Approximately 6 Years
• Standards Monitored: OSHA, UL 2034, UL 2075
• Self-Test Function: Automatic Every 24 Hours
• Status Indication: LED Status Indicators
• Historical Data Storage: Yes
• Alarm Outputs: Form C and Form A Contacts
• Trouble Outputs: Form C Trouble Contacts
• HVAC Shutdown Capability: Yes
• Sampling Tube Design: Front or Rear Loading
• Air Velocity Range: 100–4,000 FPM
• Duct Width Compatibility: 6 Inches to 10 Feet
• Interconnection Capacity: Up to 30 Units
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Operating Humidity: 10% to 85% RH Non-Condensing
• Certifications: UL 2075, UL 2034 Components
• Country of Manufacture: USA

Applications

The Space Age SSU-SL-701 is ideal for:

• Commercial office buildings
• Schools and universities
• Healthcare facilities
• Hotels and hospitality properties
• Industrial facilities
• Manufacturing plants
• Apartment complexes
• Government buildings
• Retail centers
• Mechanical equipment rooms
• HVAC air handling units
• Building automation systems

Reliable Carbon Monoxide Detection for HVAC Systems

The Space Age SSU-SL-701 combines advanced electrochemical sensing technology, automatic self-testing, replaceable sensor design, and HVAC shutdown capability in a dependable duct-mounted carbon monoxide detection solution.
