Description

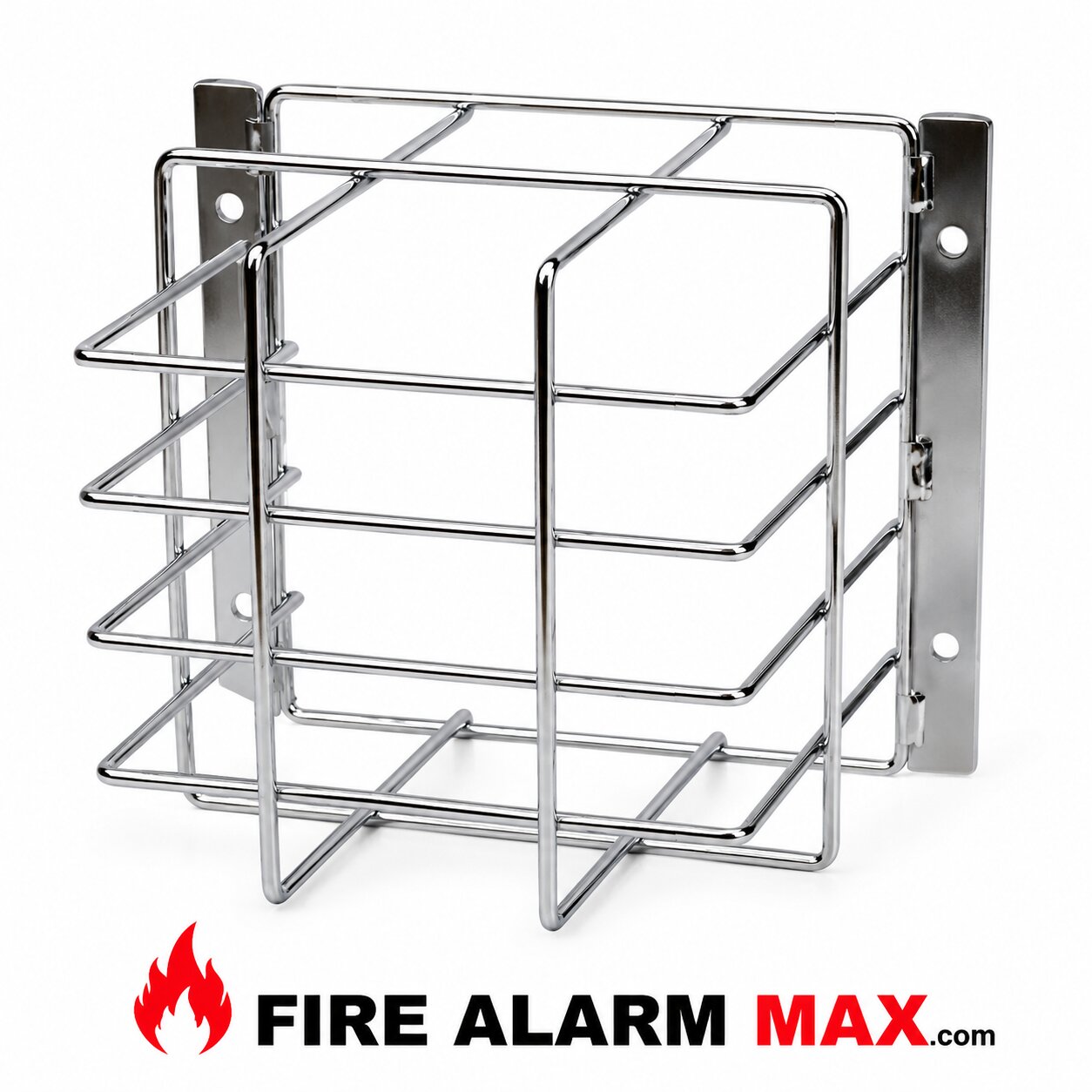

The Space Age SSU03503 HSG Horn Strobe Guard is a heavy-duty protective wire guard designed for use with compatible audible, visual, and combination notification appliances in commercial fire alarm systems. Constructed from hardened 7-gauge welded steel rod, the guard provides durable physical protection while, at the same time, maintaining maximum airflow and visibility around the protected device.

Designed for both new construction and retrofit applications, the SSU03503 features a high-quality nickel chrome finish that complements a variety of commercial environments. Additionally, its open-wire design minimizes interference with normal device operation while helping protect notification appliances from accidental impacts in high-traffic areas. Furthermore, installation hardware is included, thereby supporting convenient mounting on compatible wall-mounted notification appliances.

Product Functions

The Space Age SSU03503 performs several important functions in compatible commercial fire alarm installations, including:

• Providing physical protection for horn, strobe, and horn/strobe notification appliances
• Helping reduce accidental impact damage in high-traffic environments
• Providing an additional barrier against vandalism in exposed locations
• Maintaining airflow and visibility through an open-wire construction
• Supporting both retrofit and new construction applications
• Protecting compatible notification appliances without significantly obstructing normal operation

Features & Benefits

Heavy-Duty Steel Construction

The SSU03503 is manufactured from hardened 7-gauge welded steel rod for exceptional durability. Additionally, the welded construction provides long-lasting protection in demanding commercial environments.

Nickel Chrome Finish

A high-aesthetic nickel chrome finish provides an attractive appearance while complementing a variety of commercial interiors. Furthermore, the finish offers a professional look suitable for institutional and industrial facilities.

Open-Wire Design

The protective cage is engineered to maximize airflow and device visibility. Consequently, the guard helps protect the notification appliance while minimizing interference with its intended operation.

Protection Against Accidental Damage

The guard provides a durable physical barrier that helps reduce damage caused by accidental impacts in busy commercial environments. As a result, it is well suited for areas where notification appliances may be exposed to incidental contact.

Suitable for New or Retrofit Applications

The SSU03503 is designed for both new installations and retrofit projects. Additionally, the included mounting hardware supports convenient installation with compatible notification appliances.

Commercial-Grade Design

Its rugged construction makes the guard suitable for a wide range of commercial and institutional environments. Moreover, the compact design provides reliable device protection without significantly increasing the overall installation footprint.

Technical Specifications

Manufacturer: Space Age Electronics

Model: SSU03503

Product Name: HSG Horn Strobe Guard

Product Type: Protective Wire Guard

Application: Horn, Strobe, and Horn/Strobe Notification Appliances

Material: Hardened 7-Gauge Welded Steel Rod

Finish: Nickel Chrome

Construction: Welded Steel Wire Cage

Overall Width: 8.875 in. (225 mm)

Overall Height: 7.375 in. (187 mm)

Overall Depth: 6.25 in. (159 mm)

Hardware Included: Yes

Country of Manufacture: United States

Specifications should be verified with the manufacturer’s documentation for the intended application.

Typical Applications

The Space Age SSU03503 is commonly used to protect compatible notification appliances installed in:

• Schools and universities
• Healthcare facilities
• Hotels
• Correctional facilities
• Apartment buildings
• Parking garages
• Warehouses
• Manufacturing facilities
• Government buildings
• Commercial office buildings

Application suitability should always be verified according to the system design and project requirements.

Compatibility Information

The Space Age SSU03503 is designed for use with compatible wall-mounted horn, strobe, and horn/strobe notification appliances. Additionally, the guard is suitable for both new construction and retrofit installations where a protective wire enclosure is desired. Before purchasing or installing the guard, however, compatibility should always be verified with the intended notification appliance. Furthermore, confirming compatibility helps support proper fit and intended operation within the existing fire alarm system.

Why Choose the Space Age SSU03503?

The Space Age SSU03503 HSG Horn Strobe Guard combines heavy-duty welded steel construction, a professional nickel chrome finish, and an open-wire design to provide dependable protection for compatible notification appliances. Additionally, its durable construction helps reduce accidental damage while maintaining airflow and visibility. As a result, it offers a practical solution for commercial and institutional environments where additional device protection is desired.

SSU03503 Datasheet
