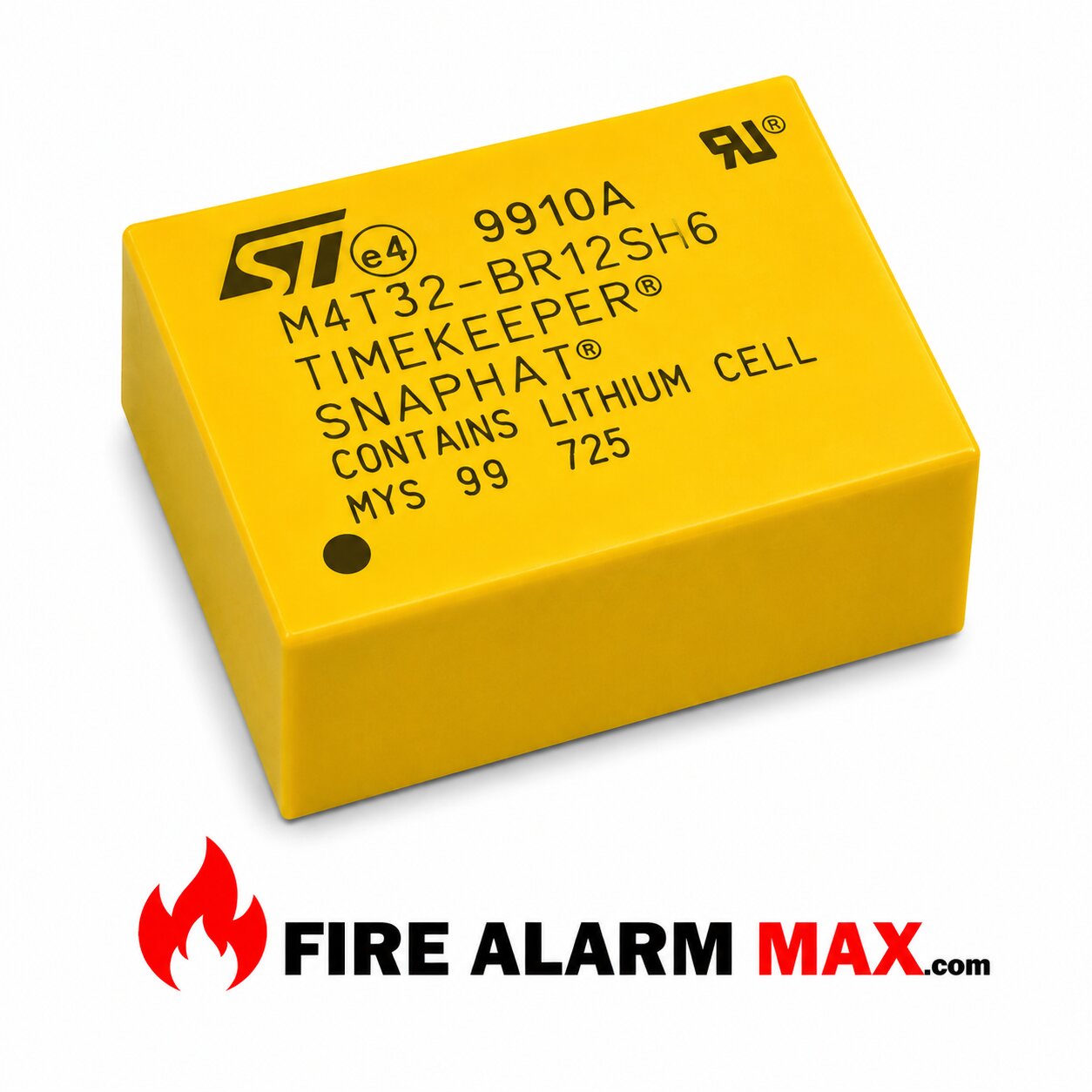

The STMicroelectronics M4T32-BR12SH6 is a SNAPHAT® battery and crystal module designed to provide reliable backup power and timekeeping support for compatible STMicroelectronics TIMEKEEPER® and real-time clock devices. The M4T32-BR12SH6 combines a long-life lithium battery and precision 32.768kHz crystal into a removable module that attaches directly to compatible 28-pin and 44-pin SNAPHAT SOIC packages. Therefore, it ensures continuous clock operation and memory retention during system power interruptions.
The M4T32-BR12SH6 is designed to provide backup power for real-time clock and non-volatile memory devices when primary system power is unavailable. As a result, critical date, time, configuration, and stored data information can be preserved during power outages. In addition, the integrated crystal provides accurate clock timing for compatible TIMEKEEPER® devices.
The M4T32-BR12SH6 combines both a lithium battery and a 32.768kHz crystal into a single compact SNAPHAT module. Consequently, system designers can reduce component count and simplify board design. Furthermore, the integrated design ensures proper compatibility and dependable operation with supported STMicroelectronics clock and memory devices.
This SNAPHAT module provides a nominal output voltage of 2.8 volts, supplying dependable backup power for compatible RTC and TIMEKEEPER® applications. Therefore, essential system functions can continue operating even when external power is removed. Additionally, the lithium chemistry provides long service life and excellent reliability.
The M4T32-BR12SH6 incorporates a lithium battery with a nominal capacity of 120mAh. As a result, supported devices can maintain memory and clock functions for extended periods during power loss. Moreover, the high-capacity design makes it suitable for industrial, networking, communications, and embedded electronics applications.
The integrated crystal operates at 32.768kHz, the standard frequency used for real-time clock applications. Consequently, compatible devices can generate accurate one-second timing intervals while maintaining low power consumption. Furthermore, the crystal utilizes a 12.5pF load capacitance for stable operation.
The SNAPHAT design allows the battery and crystal assembly to be attached after the SOIC package has been soldered to the circuit board. Therefore, the battery and crystal are protected from the high temperatures associated with surface-mount manufacturing processes. Additionally, the removable design allows replacement and environmentally responsible disposal at the end of battery life.
The M4T32-BR12SH6 is commonly used in:
Consequently, it provides dependable backup power and clock functionality across a wide range of electronic systems.
The STMicroelectronics M4T32-BR12SH6 is ideal for:
The STMicroelectronics M4T32-BR12SH6 combines a 120mAh lithium battery, precision 32.768kHz crystal, removable SNAPHAT construction, and 2.8V nominal output in a compact module designed for real-time clock and TIMEKEEPER® applications. Overall, it provides dependable backup power and accurate timekeeping support while protecting sensitive battery and crystal components from surface-mount assembly temperatures, making it an ideal solution for industrial and embedded electronic systems.
| Weight | 2 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
