Description

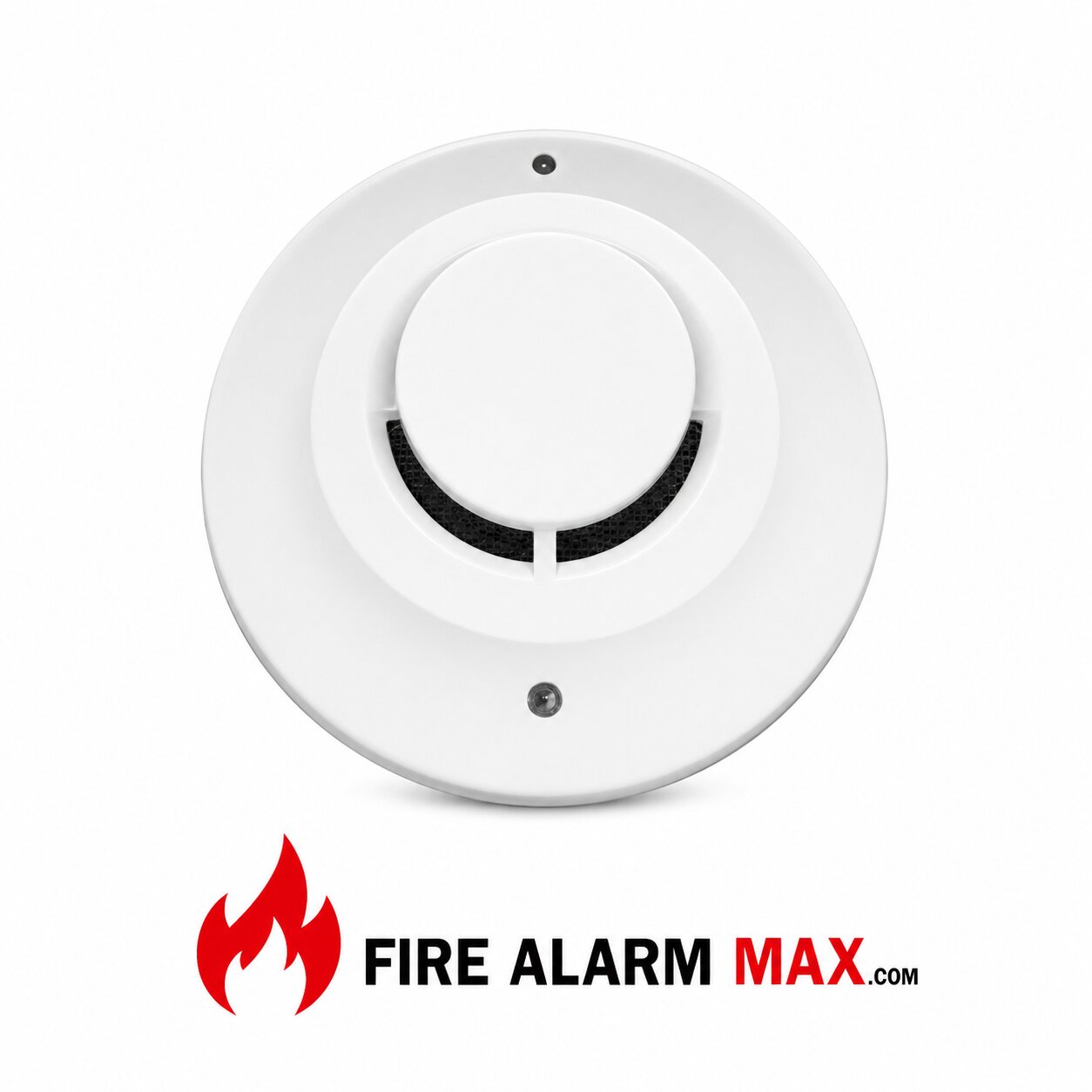

The System Sensor 5151 thermal detector meets the needs for applications where rapid response is vital and rapid temperature increases would only be caused by a fire emergency. The detector initiates an alarm in response to both rapid rate-of-rise conditions (increases in excess of 15°F per minute) and fixed heat (135°F). This enables the heat detector to communicate an alarm to the central control panel prior to reaching its fixed set point for high rates of rising, providing a timely response to both rapid and slow temperature increases. Also, the System Sensor 5151 Fixed heat detector with rate-of-rise. Alarm point at 57.2°C (135°F). Besides, must be mount to one of the 100 Series or 400* Series Bases listed in the Adapter Mounting Base Guide.

Features / Specifications

• Low standby current
• Compatible with 400 Series product
• Two visible LEDs “blink” in standby and provide a 360° field viewing angle
• Detector head plugs easily into base
• Built-in test switch
• Wide variety of mounting bases with built-in shorting spring
• Operating Voltage Range: 8.5 to 35VDC
• Application Temperature Range: 32° to 100°F (0° to 38°C)
• Operating Humidity Range: 10 % – 93 % RH non-condensing
• Standby Current: 80μA @24VDC

Download the Specification sheet in *.pdf format
