Description

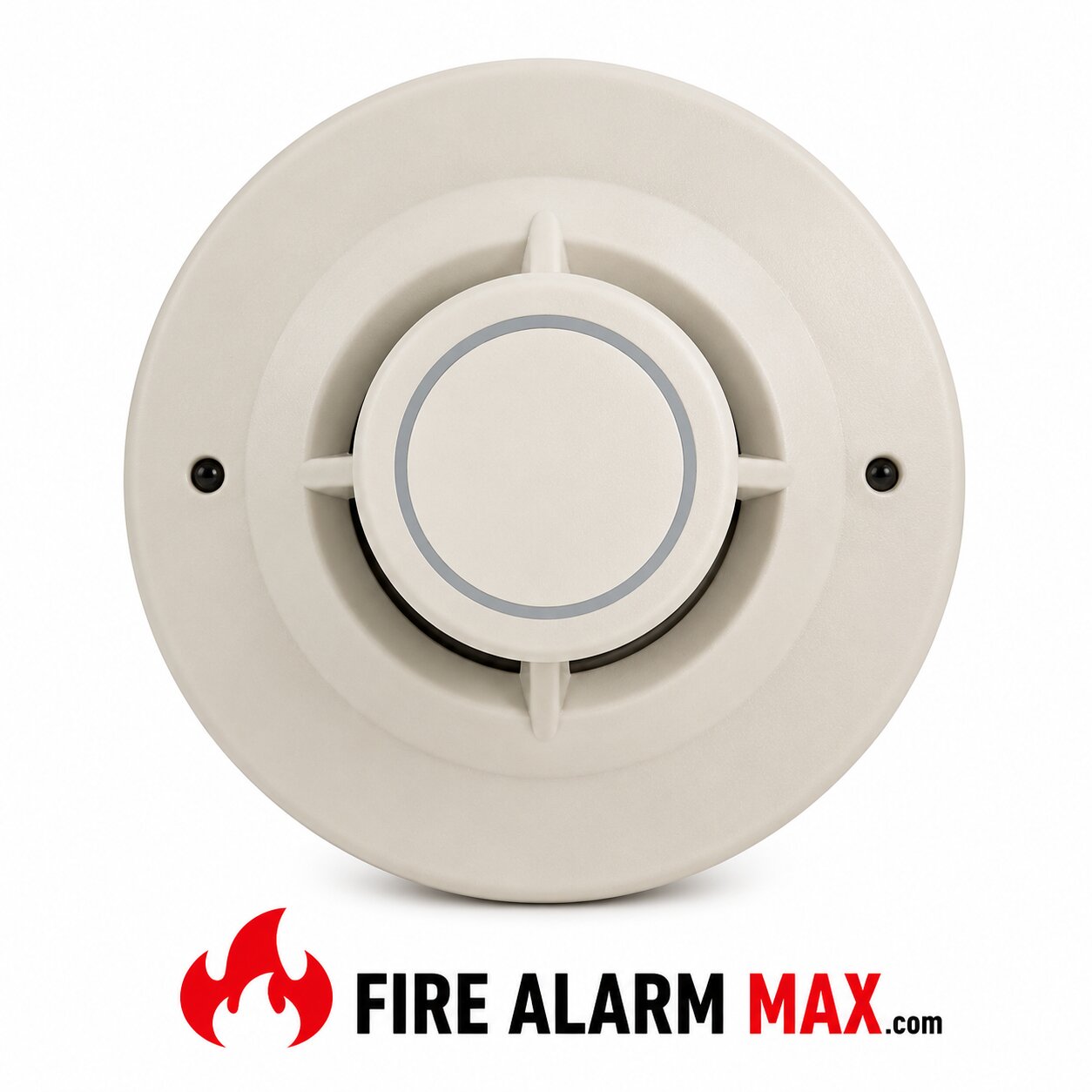

Overall, System Sensor 5251B is intelligent sensors that utilize a state of the art thermistor sensing circuit for fast response. Also, these sensors are designed to provide open area protection with 50 foot spacing capability as approved by UL 521.

In general, both the System Sensor 5251B and 5251RB detectors use an innovative thermistor sensing circuit to produce 135°F fixed and rate-of-rise thermal detection in low-profile packages. Besides, the 5251H model provides fixed high-temperature detection at 190°F. In addition, these thermal detectors provide cost-effective, intelligent property protection in a variety of applications.

Furthermore, the 200 Series smoke detectors are intelligent (addressable) detectors with point ID capability that enable each detector address to be set with decade address switches to provide exact detector locations. In addition, the sensitivity of 200 Series detectors can be programm using the control panel software to suit the environment.  The detector sensitivity is continually monitor as well as reported to the panel.

Features / Specifications

• Sleek, low-profile design
• Analog communications
• Low standby current
• Rotary address switches
• Superior EMI protection
• Dual LEDs for 360° visibility
• Operating Humidity Range: 10% to 93% non-condensing
• Fixed Temperature Setpoint: 135°F (57°C)
• Rate-of-Rise Detection: 15°F/min. (8.3°C/min.)
• High Temperature Heat: 190°F (88°C)
