Description

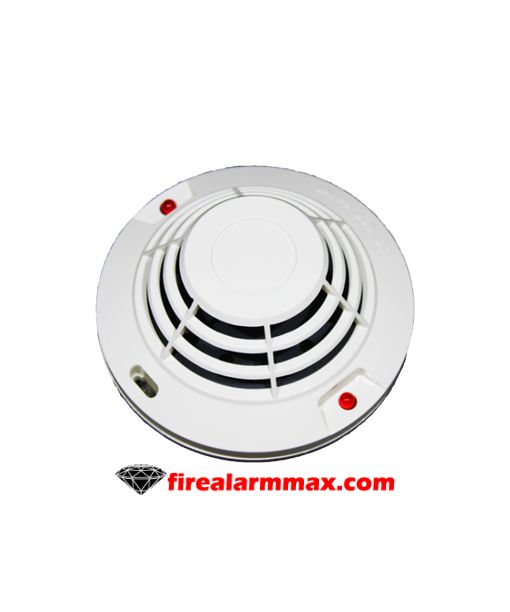

Overall, the System Sensor 5451 thermal detector meets the needs for applications where rapid response is vital and rapid temperature increases would only be caused by a fire emergency. Also, additional key features include a recessed mounting option; a variety of mounting bases, and a full line of optional accessories.

In general, this System Sensor 5451 detector contains a unique dual thermistor heat sensing circuit that provides maximum performance and solid-state reliability. It initiates an alarm in response to both rapid rate-of-rise conditions (increases in excess of 15°F per minute) and fixed heat (135°F). This enables the heat detector to communicate an alarm to the central control panel prior to reaching its fixed set point for high rates of rising; providing a timely response to both rapid and slow temperature increases.

Features / Specifications

• Low standby current
• Two visible LEDs“blink” in standby and provide a 360° field viewing angle
• Wide variety of mounting bases with built-in shorting spring
• Detector head plugs easily into base
• Built-in test switch
• Built-in tamper-resistant feature
• SEMS screws for easy wiring
• Optional recessed mounting
• Humidity Range: 10% to 93% RH non-condensing
• Operating Temperature Range: 32°F to 100°F (0°C to 38°C)

Download the Specification sheet in *.pdf format
