Description

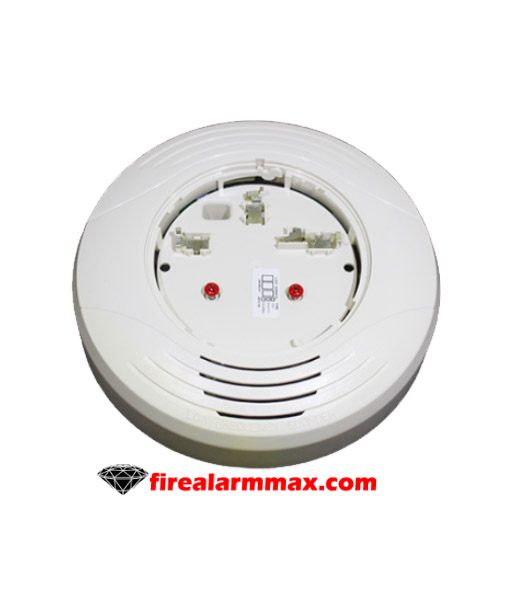

The System Sensor B200S with its attractive aesthetics is ideal for applications where appearance is critical. Furthermore, the B200S sounder base series designed for new and existing dwelling unit applications. It offers maximum flexibility in installation, configuration, as well as operation to meet or exceed UL 268 and UL 464 requirements.

The System Sensor B200S sounder base series is designed for new and existing dwelling unit applications. It also offers maximum flexibility in installation, configuration, and operation to meet or exceed UL 268 and UL 464 requirements.

The sounder base “listens in” to the communication between the attached sensor head and the fire alarm control panel (FACP) to adopt the same address as the detector, but as a unique device type on the loop. The FACP can then use that address to command an individual sounder or a group of sounders to activate. Additionally, the command set from the panel can be tailored to the specific event, allowing selection of volume, tone, and group. In addition, some FACPs will enable custom tone patterns.

Features / Specifications

• Addressability for maximum configuration flexibility
• Two volume levels (75 or 85 dBA)
• Multiple event-driven tone outputs
• Supports Continuous, ANSI Temporal 3, ANSI Temporal 4, and March Time tones
• Custom tone capability with some FACP models
• Ability to synchronize with other System Sensor notification devices
• UL 268 and UL 464 compliant
• Pre-wire mounting plate fits various junction box sizes
• Mechanical locking feature prevents removal of attached sensor head
