Description

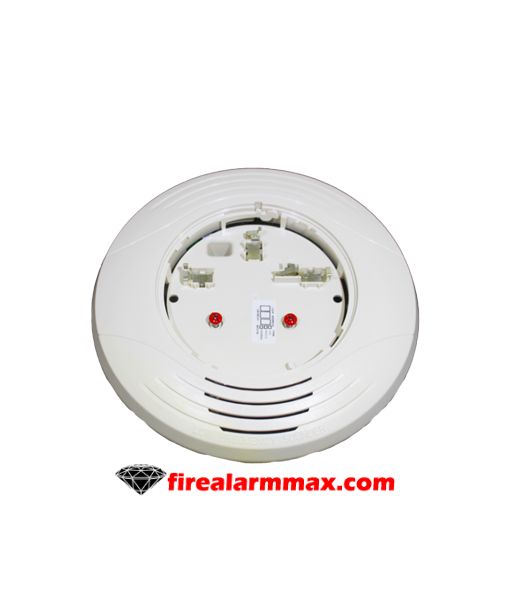

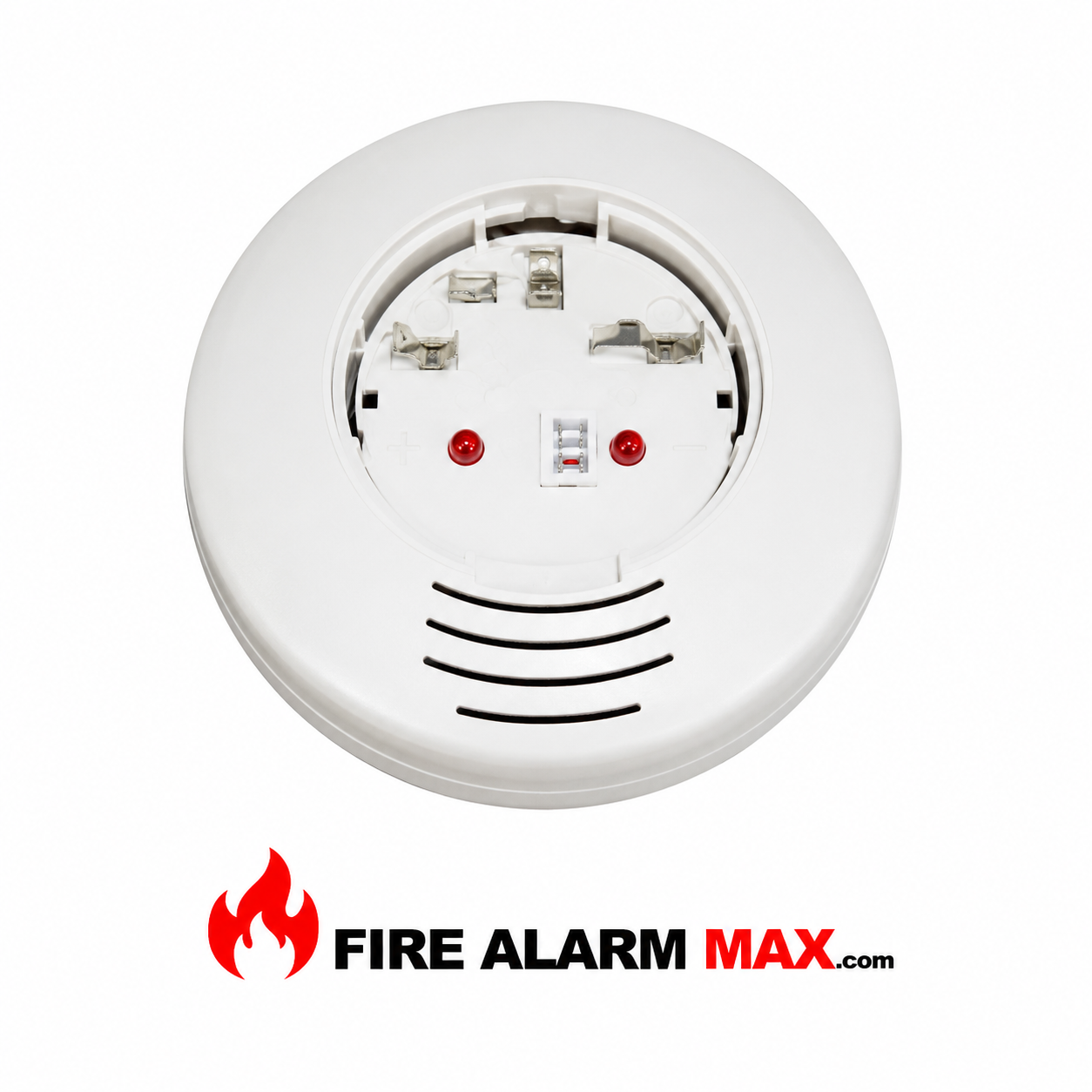

The System Sensor B200SR is designed for new and existing dwelling unit applications sIt offers maximum flexibility in installation, configuration, as well as operation to meet or exceed UL 268 and UL 464 requirements. Also, the B200SR series is fully compatible with existing B501 BH-Series sounder base installations. Additionally, the device enables users to select one of two B501-supported tones (ANSI Temporal 3 or Continuous) by removing a jumper.

With its attractive aesthetics, the System Sensor B200SR series is ideal for applications where appearance is critical. Furthermore, the sounder base employs a separate mounting plate that installs on various junction box sizes. In addition, the mounting plate enables pre-wiring of all connections to speed and simplify installation. The housing then mates with the mounting plate and locks into position with two retaining screws, which are covers by the installed sensor head for added tamper resistance

Features / Specifications

• Tone selection via an onboard jumper
• UL 268 and UL 464 compliant
• Pre-wire mounting plate fits various junction box sizes
• Fully compatible with existing B501BH-Series sounder base installations
• Mechanical locking feature prevents removal of the attached sensor head
• 520 Hz +/– 10% square wave tone (B200S-LF)
• 16 to 33 VDC
