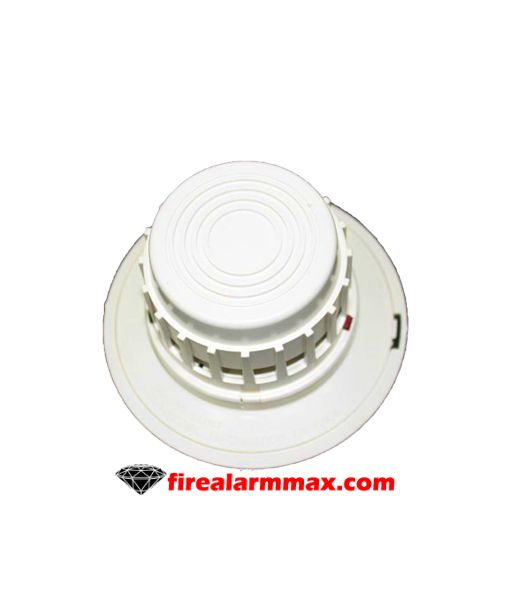

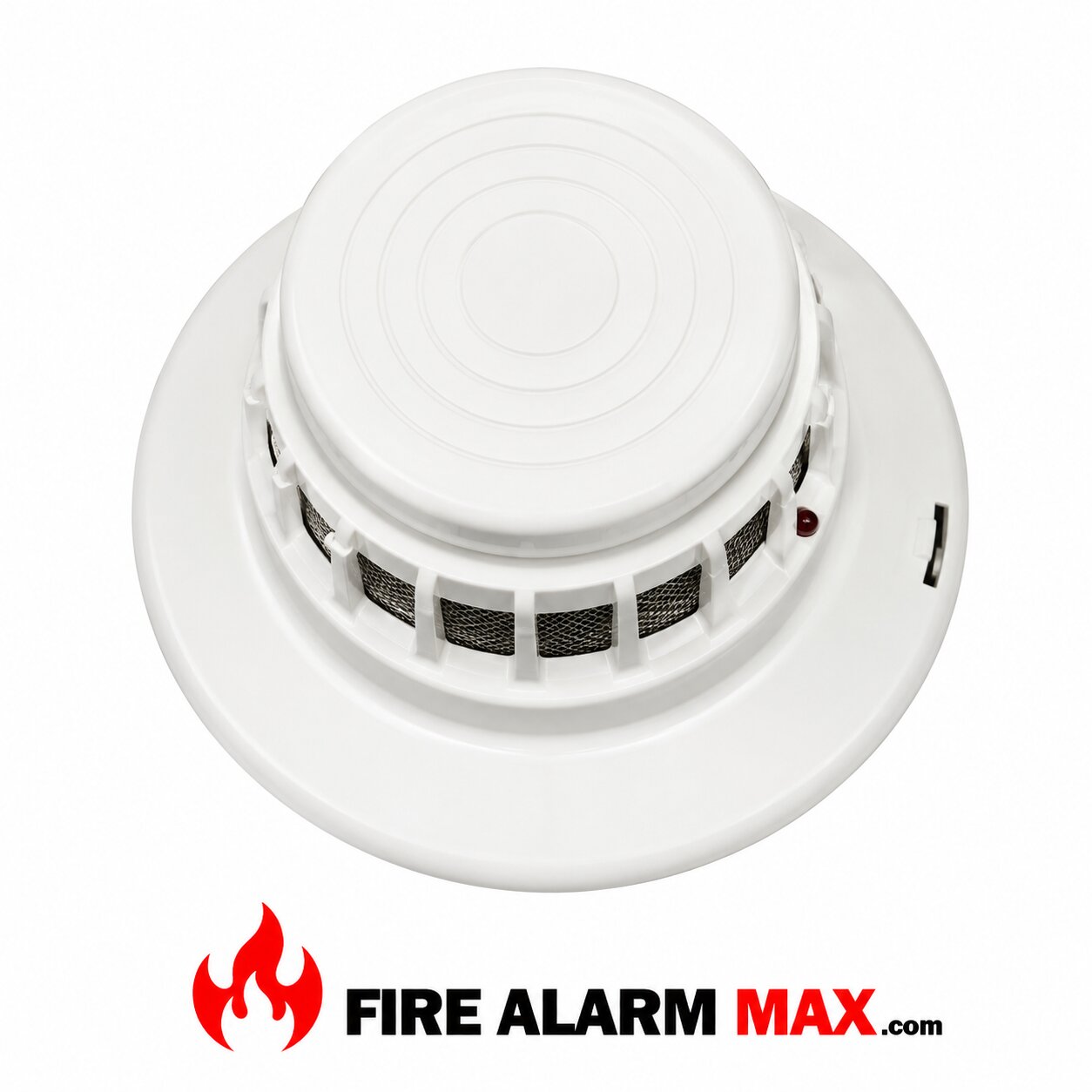

The System Sensor 1812 detectors have been design to offer maximum stability, ease of installation, and a compact and attractive appearance. Also, the heart of these 1800 series detectors is the new unipolar ionization chamber. BRK created a wide gulf between conventional sensing technologies and this new advanced design. The unipolar chamber is approximately twice as responsive to smoldering fires when compared to conventional ionization detectors, but is still able to respond quickly to fast flaming fires. Because of this new unipolar design, the 1800 Series detectors can be set at a sensitivity level comparable to most competitive photoelectric detectors.
In general, the System Sensor 1812 is a system type detector design for use with four/six-wire UL-listed control panels. Besides, the System Sensor 1812 operates on 12 VDC. Furthermore, the sensitivity of the detectors is preset at the factory and does not require adjustment in the field. A solid-state voltage regulator maintains detector sensitivity over a wide range of input voltages. Testing capability is incorporate in the detector which permits quick as well as easy testing without sophisticated test equipment. A visual indication of an alarm is give by an LED on the detector cover.
Features / Specifications
| Weight | 1 lbs |
|---|---|
| Dimensions | 8 × 8 × 4 in |
Your Payment information is processed securely. We do not store credit card details, nor have access to your credit card information.
Orders ship same day
Thousands of parts in stock
Reliable products & service
Order anytime, anywhere
The System Sensor 1812 detectors have been design to offer maximum stability, ease of installation, and a compact and attractive appearance. Also, the heart of these 1800 series detectors is the new unipolar ionization chamber. BRK created a wide gulf between conventional sensing technologies and this new advanced design. The unipolar chamber is approximately twice as responsive to smoldering fires when compared to conventional ionization detectors, but is still able to respond quickly to fast flaming fires. Because of this new unipolar design, the 1800 Series detectors can be set at a sensitivity level comparable to most competitive photoelectric detectors.
In general, the System Sensor 1812 is a system type detector design for use with four/six-wire UL-listed control panels. Besides, the System Sensor 1812 operates on 12 VDC. Furthermore, the sensitivity of the detectors is preset at the factory and does not require adjustment in the field. A solid-state voltage regulator maintains detector sensitivity over a wide range of input voltages. Testing capability is incorporate in the detector which permits quick as well as easy testing without sophisticated test equipment. A visual indication of an alarm is give by an LED on the detector cover.
Features / Specifications
| Weight | 1 lbs |
|---|---|
| Dimensions | 8 × 8 × 4 in |
