Description

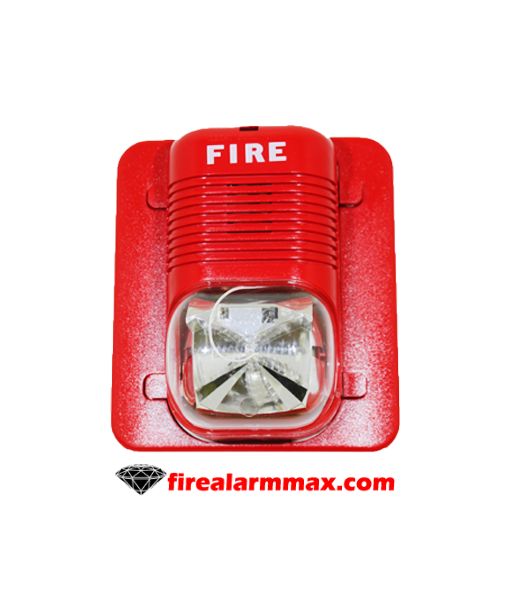

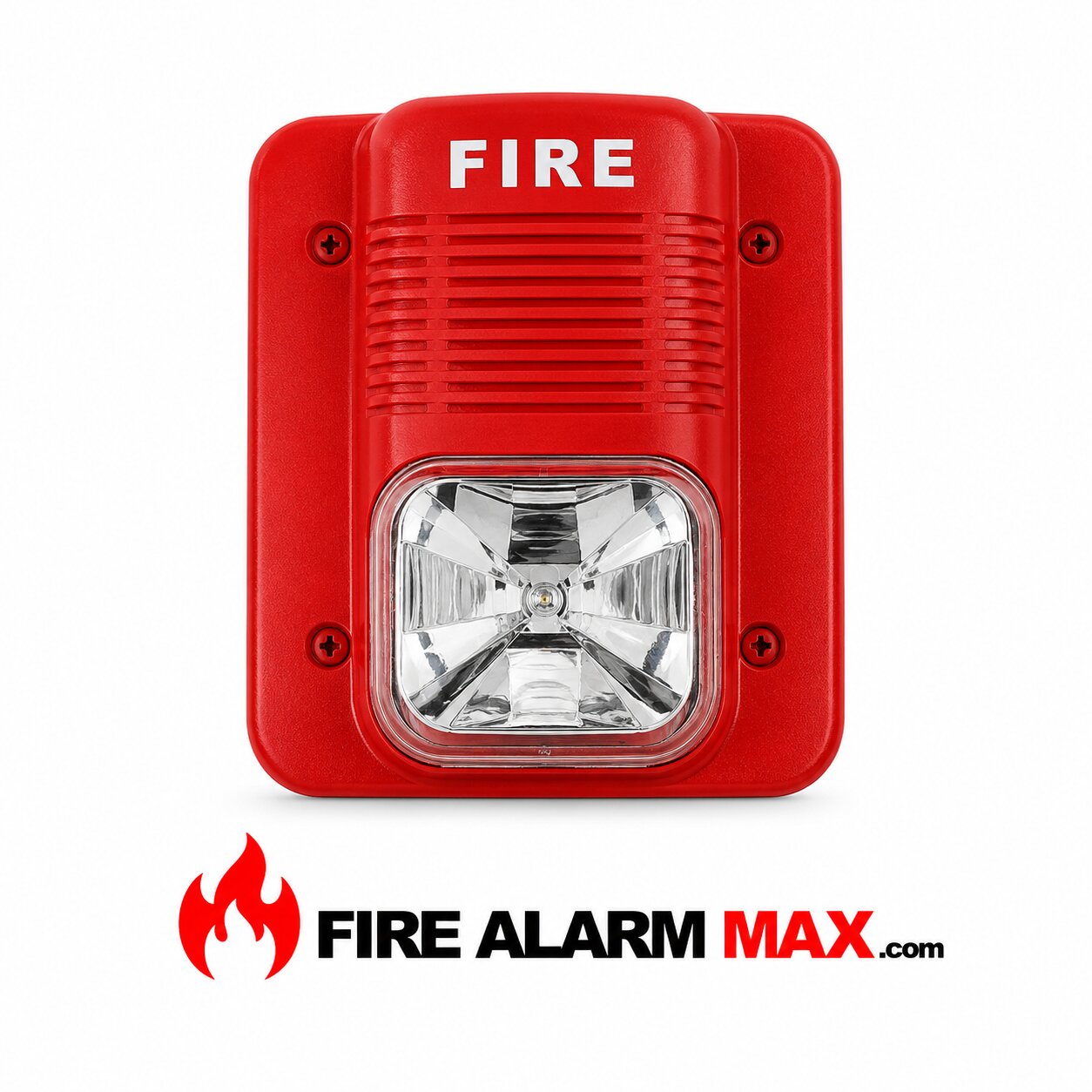

The System Sensor P12015K offers installation ease which also lowers the installed cost. Also, each SpectrAlert horn/strobe includes a universal mounting plate for 4″ square and single gang back box mounting. An accessory weatherproof back box (WBB) is available.

System Sensor’s SpectrAlert wall-mount horn/strobe product is an outdoor listed strobe that operates on 120VAC. The horn/strobe is watertight when used in conjunction with the weatherproof back box (WBB). The SpectrAlert Outdoor Horn/Strobe operates on 120VAC and is UL list for outdoor use. The horn/strobe is watertight per UL50 when used in conjunction with the weatherproof backbox accessory.

In general, the System Sensor P12015K offers the flexibility to meet a broad range of requirements. The SpectrAlert Outdoor Horn/Strobe features field-selectable horn tones, with temporal 3 or continuous patterns for each. To meet building owner aesthetic requirements, SpectrAlert incorporates a stylish, low-profile design, an aesthetic that is consistent across all SpectrAlert products.

Features / Specifications

• Rainproof per UL50 (NEMA 3R)
• Operates at 120VAC
• Operates in a temperature range of –40°F to 150°F
• Universal mounting plate included
• Field-selectable horn options: Electromechanical/3kHz, Temporal 3/Continuous
• Operating Temperature: –40 degrees to 150 degrees Fahrenheit
• Input Terminals: 12 to 18 AWG
